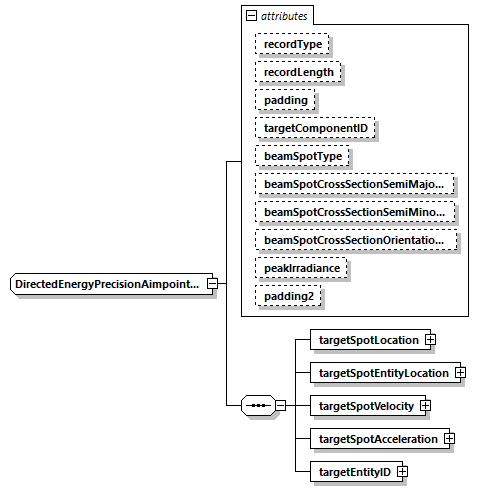

complexType DirectedEnergyPrecisionAimpointType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	targetSpotLocation targetSpotEntityLocation targetSpotVelocity targetSpotAcceleration targetEntityID
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:unsignedLong            appinfo Type of Record recordLength   xs:unsignedShort            appinfo Length of Record padding   xs:unsignedShort            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   targetComponentID   xs:unsignedByte            appinfo Target Component ID ENUM, same as in DamageDescriptionRecord. beamSpotType   xs:string            appinfo Spot Shape ENUM. (SISO enumeration DEPrecisionAimpointBeamSpotType uid 311) beamSpotCrossSectionSemiMajorAxis   xs:float            appinfo Beam Spot Cross Section Semi-Major Axis. beamSpotCrossSectionSemiMinorAxis   xs:float            appinfo Beam Spot Cross Section Semi-Major Axis. beamSpotCrossSectionOrientationAngle   xs:float            appinfo Beam Spot Cross Section Orientation Angle. peakIrradiance   xs:float            appinfo Peak irradiance padding2   xs:unsignedLong            appinfo padding
annotation	appinfo DE Precision Aimpoint Record. Section 6.2.20.3
source	<xs:complexType name="DirectedEnergyPrecisionAimpointType" abstract="false">   <xs:annotation>     <xs:appinfo>DE Precision Aimpoint Record. Section 6.2.20.3</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="targetSpotLocation" type="Vector3DoubleType">           <xs:annotation>             <xs:appinfo>Position of Target Spot in World Coordinates.</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="targetSpotEntityLocation" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Position (meters) of Target Spot relative to Entity Position.</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="targetSpotVelocity" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Velocity (meters/sec) of Target Spot.</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="targetSpotAcceleration" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Acceleration (meters/sec/sec) of Target Spot.</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="targetEntityID" type="EntityIDType">           <xs:annotation>             <xs:appinfo>Unique ID of the target entity.</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="recordType" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Type of Record</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="recordLength" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Length of Record</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="targetComponentID" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>Target Component ID ENUM, same as in DamageDescriptionRecord.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="beamSpotType" type="xs:string">         <xs:annotation>           <xs:appinfo>Spot Shape ENUM. (SISO enumeration DEPrecisionAimpointBeamSpotType uid 311)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="beamSpotCrossSectionSemiMajorAxis" type="xs:float">         <xs:annotation>           <xs:appinfo>Beam Spot Cross Section Semi-Major Axis.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="beamSpotCrossSectionSemiMinorAxis" type="xs:float">         <xs:annotation>           <xs:appinfo>Beam Spot Cross Section Semi-Major Axis.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="beamSpotCrossSectionOrientationAngle" type="xs:float">         <xs:annotation>           <xs:appinfo>Beam Spot Cross Section Orientation Angle.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="peakIrradiance" type="xs:float">         <xs:annotation>           <xs:appinfo>Peak irradiance</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding2" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>padding</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute DirectedEnergyPrecisionAimpointType/@recordType

type	xs:unsignedLong
annotation	appinfo Type of Record
source	<xs:attribute name="recordType" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Type of Record</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@recordLength

type	xs:unsignedShort
annotation	appinfo Length of Record
source	<xs:attribute name="recordLength" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Length of Record</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@padding

type	xs:unsignedShort
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@targetComponentID

type	xs:unsignedByte
annotation	appinfo Target Component ID ENUM, same as in DamageDescriptionRecord.
source	<xs:attribute name="targetComponentID" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Target Component ID ENUM, same as in DamageDescriptionRecord.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@beamSpotType

type	xs:string
annotation	appinfo Spot Shape ENUM. (SISO enumeration DEPrecisionAimpointBeamSpotType uid 311)
source	<xs:attribute name="beamSpotType" type="xs:string">   <xs:annotation>     <xs:appinfo>Spot Shape ENUM. (SISO enumeration DEPrecisionAimpointBeamSpotType uid 311)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@beamSpotCrossSectionSemiMajorAxis

type	xs:float
annotation	appinfo Beam Spot Cross Section Semi-Major Axis.
source	<xs:attribute name="beamSpotCrossSectionSemiMajorAxis" type="xs:float">   <xs:annotation>     <xs:appinfo>Beam Spot Cross Section Semi-Major Axis.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@beamSpotCrossSectionSemiMinorAxis

type	xs:float
annotation	appinfo Beam Spot Cross Section Semi-Major Axis.
source	<xs:attribute name="beamSpotCrossSectionSemiMinorAxis" type="xs:float">   <xs:annotation>     <xs:appinfo>Beam Spot Cross Section Semi-Major Axis.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@beamSpotCrossSectionOrientationAngle

type	xs:float
annotation	appinfo Beam Spot Cross Section Orientation Angle.
source	<xs:attribute name="beamSpotCrossSectionOrientationAngle" type="xs:float">   <xs:annotation>     <xs:appinfo>Beam Spot Cross Section Orientation Angle.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@peakIrradiance

type	xs:float
annotation	appinfo Peak irradiance
source	<xs:attribute name="peakIrradiance" type="xs:float">   <xs:annotation>     <xs:appinfo>Peak irradiance</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DirectedEnergyPrecisionAimpointType/@padding2

type	xs:unsignedLong
annotation	appinfo padding
source	<xs:attribute name="padding2" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

element DirectedEnergyPrecisionAimpointType/targetSpotLocation

diagram
type	Vector3DoubleType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:double            appinfo X value y   xs:double            appinfo y Value z   xs:double            appinfo Z value
annotation	appinfo Position of Target Spot in World Coordinates.
source	<xs:element name="targetSpotLocation" type="Vector3DoubleType">   <xs:annotation>     <xs:appinfo>Position of Target Spot in World Coordinates.</xs:appinfo>   </xs:annotation> </xs:element>

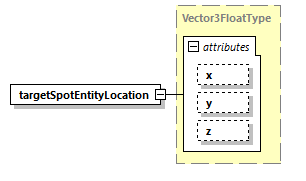

element DirectedEnergyPrecisionAimpointType/targetSpotEntityLocation

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Position (meters) of Target Spot relative to Entity Position.
source	<xs:element name="targetSpotEntityLocation" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Position (meters) of Target Spot relative to Entity Position.</xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyPrecisionAimpointType/targetSpotVelocity

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Velocity (meters/sec) of Target Spot.
source	<xs:element name="targetSpotVelocity" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Velocity (meters/sec) of Target Spot.</xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyPrecisionAimpointType/targetSpotAcceleration

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Acceleration (meters/sec/sec) of Target Spot.
source	<xs:element name="targetSpotAcceleration" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Acceleration (meters/sec/sec) of Target Spot.</xs:appinfo>   </xs:annotation> </xs:element>

element DirectedEnergyPrecisionAimpointType/targetEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Unique ID of the target entity.
source	<xs:element name="targetEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Unique ID of the target entity.</xs:appinfo>   </xs:annotation> </xs:element>
