complexType EngineFuelReloadType

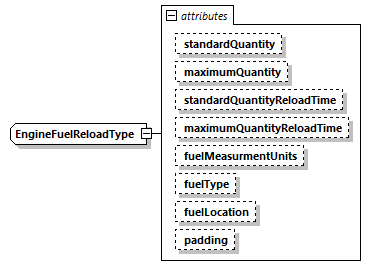

diagram
type	extension of rootType
properties	base  rootType abstract  false
attributes	Name   Type   Use   Default   Fixed   Annotation standardQuantity   xs:unsignedLong            appinfo standard quantity of fuel loaded maximumQuantity   xs:unsignedLong            appinfo maximum quantity of fuel loaded standardQuantityReloadTime   xs:unsignedLong            appinfo seconds normally required to to reload standard qty maximumQuantityReloadTime   xs:unsignedLong            appinfo seconds normally required to to reload maximum qty fuelMeasurmentUnits   xs:string            appinfo Units of measure (SISO enumeration FuelMeasurementUnits uid 328) fuelType   xs:string            appinfo (SISO enumeration SupplyFuelType uid 413) fuelLocation   xs:string            appinfo fuel location as related to the entity (SISO enumeration FuelLocation uid 329) padding   xs:unsignedByte            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo For each type or location of engine fuell, this record specifies the type, location,             fuel measurement units, and reload quantity and maximum quantity. Section 6.2.25.
source	<xs:complexType name="EngineFuelReloadType" abstract="false">   <xs:annotation>     <xs:appinfo>For each type or location of engine fuell, this record specifies the type, location,             fuel measurement units, and reload quantity and maximum quantity. Section 6.2.25.          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="standardQuantity" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>standard quantity of fuel loaded</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="maximumQuantity" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>maximum quantity of fuel loaded</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="standardQuantityReloadTime" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>seconds normally required to to reload standard qty</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="maximumQuantityReloadTime" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>seconds normally required to to reload maximum qty</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="fuelMeasurmentUnits" type="xs:string">         <xs:annotation>           <xs:appinfo>Units of measure (SISO enumeration FuelMeasurementUnits uid 328)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="fuelType" type="xs:string">         <xs:annotation>           <xs:appinfo>(SISO enumeration SupplyFuelType uid 413)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="fuelLocation" type="xs:string">         <xs:annotation>           <xs:appinfo>fuel location as related to the entity (SISO enumeration FuelLocation uid 329)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EngineFuelReloadType/@standardQuantity

type	xs:unsignedLong
annotation	appinfo standard quantity of fuel loaded
source	<xs:attribute name="standardQuantity" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>standard quantity of fuel loaded</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@maximumQuantity

type	xs:unsignedLong
annotation	appinfo maximum quantity of fuel loaded
source	<xs:attribute name="maximumQuantity" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>maximum quantity of fuel loaded</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@standardQuantityReloadTime

type	xs:unsignedLong
annotation	appinfo seconds normally required to to reload standard qty
source	<xs:attribute name="standardQuantityReloadTime" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>seconds normally required to to reload standard qty</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@maximumQuantityReloadTime

type	xs:unsignedLong
annotation	appinfo seconds normally required to to reload maximum qty
source	<xs:attribute name="maximumQuantityReloadTime" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>seconds normally required to to reload maximum qty</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@fuelMeasurmentUnits

type	xs:string
annotation	appinfo Units of measure (SISO enumeration FuelMeasurementUnits uid 328)
source	<xs:attribute name="fuelMeasurmentUnits" type="xs:string">   <xs:annotation>     <xs:appinfo>Units of measure (SISO enumeration FuelMeasurementUnits uid 328)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@fuelType

type	xs:string
annotation	appinfo (SISO enumeration SupplyFuelType uid 413)
source	<xs:attribute name="fuelType" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration SupplyFuelType uid 413)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@fuelLocation

type	xs:string
annotation	appinfo fuel location as related to the entity (SISO enumeration FuelLocation uid 329)
source	<xs:attribute name="fuelLocation" type="xs:string">   <xs:annotation>     <xs:appinfo>fuel location as related to the entity (SISO enumeration FuelLocation uid 329)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EngineFuelReloadType/@padding

type	xs:unsignedByte
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>
