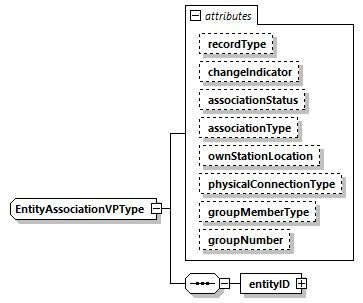

complexType EntityAssociationVPType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	entityID
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   changeIndicator   xs:string            appinfo Indicates if this VP has changed since last issuance (SISO enumeration EntityVPRecordChangeIndicator                      uid 320)                   associationStatus   xs:string            appinfo Indicates association status between two entities (SISO enumeration EntityAssociationAssociationType                      uid 319)                   associationType   xs:string            appinfo Type of association; 8-bit enum (SISO enumeration EntityAssociationPhysicalAssociationType                      uid 323)                   ownStationLocation   xs:string            appinfo Station location on one's own entity (SISO enumeration IsPartOfStationName uid 212) physicalConnectionType   xs:string            appinfo Type of physical connection (SISO enumeration EntityAssociationPhysicalConnectionType                      uid 324)                   groupMemberType   xs:string            appinfo Type of member the entity is within the group (SISO enumeration EntityAssociationGroupMemberType                      uid 321)                   groupNumber   xs:unsignedShort            appinfo Group if any to which the entity belongs
annotation	appinfo Association or disassociation of two entities. Section 6.2.94.4.3
source	<xs:complexType name="EntityAssociationVPType" abstract="false">   <xs:annotation>     <xs:appinfo>Association or disassociation of two entities. Section 6.2.94.4.3</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="entityID" type="EntityIDType">           <xs:annotation>             <xs:appinfo>Object ID of entity associated with this entity</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="recordType" type="xs:string">         <xs:annotation>           <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="changeIndicator" type="xs:string">         <xs:annotation>           <xs:appinfo>Indicates if this VP has changed since last issuance (SISO enumeration EntityVPRecordChangeIndicator                      uid 320)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="associationStatus" type="xs:string">         <xs:annotation>           <xs:appinfo>Indicates association status between two entities (SISO enumeration EntityAssociationAssociationType                      uid 319)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="associationType" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of association; 8-bit enum (SISO enumeration EntityAssociationPhysicalAssociationType                      uid 323)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="ownStationLocation" type="xs:string">         <xs:annotation>           <xs:appinfo>Station location on one's own entity (SISO enumeration IsPartOfStationName uid 212)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="physicalConnectionType" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of physical connection (SISO enumeration EntityAssociationPhysicalConnectionType                      uid 324)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="groupMemberType" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of member the entity is within the group (SISO enumeration EntityAssociationGroupMemberType                      uid 321)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="groupNumber" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Group if any to which the entity belongs</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EntityAssociationVPType/@recordType

type	xs:string
annotation	appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)
source	<xs:attribute name="recordType" type="xs:string">   <xs:annotation>     <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@changeIndicator

type	xs:string
annotation	appinfo Indicates if this VP has changed since last issuance (SISO enumeration EntityVPRecordChangeIndicator                      uid 320)
source	<xs:attribute name="changeIndicator" type="xs:string">   <xs:annotation>     <xs:appinfo>Indicates if this VP has changed since last issuance (SISO enumeration EntityVPRecordChangeIndicator                      uid 320)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@associationStatus

type	xs:string
annotation	appinfo Indicates association status between two entities (SISO enumeration EntityAssociationAssociationType                      uid 319)
source	<xs:attribute name="associationStatus" type="xs:string">   <xs:annotation>     <xs:appinfo>Indicates association status between two entities (SISO enumeration EntityAssociationAssociationType                      uid 319)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@associationType

type	xs:string
annotation	appinfo Type of association; 8-bit enum (SISO enumeration EntityAssociationPhysicalAssociationType                      uid 323)
source	<xs:attribute name="associationType" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of association; 8-bit enum (SISO enumeration EntityAssociationPhysicalAssociationType                      uid 323)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@ownStationLocation

type	xs:string
annotation	appinfo Station location on one's own entity (SISO enumeration IsPartOfStationName uid 212)
source	<xs:attribute name="ownStationLocation" type="xs:string">   <xs:annotation>     <xs:appinfo>Station location on one's own entity (SISO enumeration IsPartOfStationName uid 212)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@physicalConnectionType

type	xs:string
annotation	appinfo Type of physical connection (SISO enumeration EntityAssociationPhysicalConnectionType                      uid 324)
source	<xs:attribute name="physicalConnectionType" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of physical connection (SISO enumeration EntityAssociationPhysicalConnectionType                      uid 324)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@groupMemberType

type	xs:string
annotation	appinfo Type of member the entity is within the group (SISO enumeration EntityAssociationGroupMemberType                      uid 321)
source	<xs:attribute name="groupMemberType" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of member the entity is within the group (SISO enumeration EntityAssociationGroupMemberType                      uid 321)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EntityAssociationVPType/@groupNumber

type	xs:unsignedShort
annotation	appinfo Group if any to which the entity belongs
source	<xs:attribute name="groupNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Group if any to which the entity belongs</xs:appinfo>   </xs:annotation> </xs:attribute>

element EntityAssociationVPType/entityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Object ID of entity associated with this entity
source	<xs:element name="entityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Object ID of entity associated with this entity</xs:appinfo>   </xs:annotation> </xs:element>
