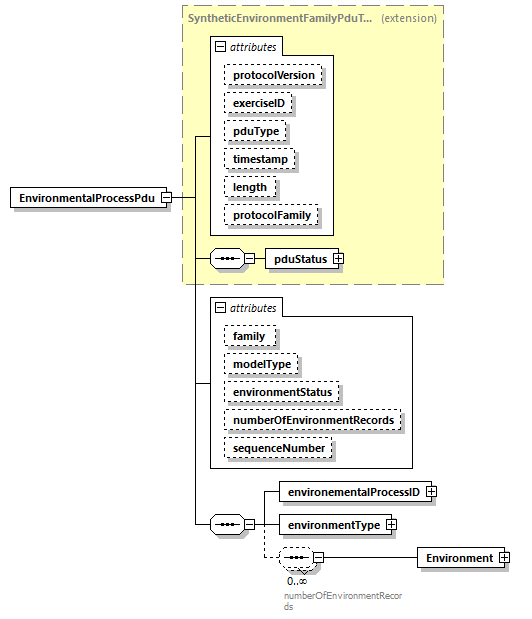

element EnvironmentalProcessPdu

diagram
type	extension of SyntheticEnvironmentFamilyPduType
properties	content  complex
children	pduStatus environementalProcessID environmentType Environment
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SYNTHETIC_ENVIRONMENT      family            SyntheticEnvironmentFamilyPduType   modelType   xs:string            appinfo model type (SISO enumeration EnvironmentalProcessModelType uid 248) environmentStatus   xs:unsignedByte            appinfo Environment status (SISO bitfield enumeration, size 8 bits, EnvironmentalProcessEnvironmentStatus                         uid 249)                      numberOfEnvironmentRecords   xs:unsignedShort            appinfo number of environment records sequenceNumber   xs:unsignedShort            appinfo PDU sequence number for the environmental process if pdu sequencing required
annotation	appinfo 7.10.2 Used to communicate information about environmental effects and processes.             (length of list found in field numberOfEnvironmentRecords)             <xs:attribute name="id" type="xs:integer" fixed="41"/>
source	<xs:element name="EnvironmentalProcessPdu">   <xs:annotation>     <xs:appinfo>7.10.2 Used to communicate information about environmental effects and processes.             (length of list found in field numberOfEnvironmentRecords)             <xs:attribute name="id" type="xs:integer" fixed="41"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SyntheticEnvironmentFamilyPduType">         <xs:sequence>           <xs:element name="environementalProcessID" type="ObjectIdentifierType">             <xs:annotation>               <xs:appinfo>Environmental process ID provides a unique identifier</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="environmentType" type="EntityTypeType">             <xs:annotation>               <xs:appinfo>Environment type</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) EnvironmentalProcessPdu environmentRecords with objectlist classRef name=Environment, type=EnvironmentType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfEnvironmentRecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfEnvironmentRecords</xs:documentation>             </xs:annotation>             <xs:element name="Environment" type="EnvironmentType">               <xs:annotation>                 <xs:appinfo>environmemt records (length of list found in field numberOfEnvironmentRecords)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>         <xs:attribute name="modelType" type="xs:string">           <xs:annotation>             <xs:appinfo>model type (SISO enumeration EnvironmentalProcessModelType uid 248)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="environmentStatus" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>Environment status (SISO bitfield enumeration, size 8 bits, EnvironmentalProcessEnvironmentStatus                         uid 249)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfEnvironmentRecords" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>number of environment records</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="sequenceNumber" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>PDU sequence number for the environmental process if pdu sequencing required</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute EnvironmentalProcessPdu/@family

properties	fixed  SyntheticEnvironmentFamilyPduType
source	<xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>

attribute EnvironmentalProcessPdu/@modelType

type	xs:string
annotation	appinfo model type (SISO enumeration EnvironmentalProcessModelType uid 248)
source	<xs:attribute name="modelType" type="xs:string">   <xs:annotation>     <xs:appinfo>model type (SISO enumeration EnvironmentalProcessModelType uid 248)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EnvironmentalProcessPdu/@environmentStatus

type	xs:unsignedByte
annotation	appinfo Environment status (SISO bitfield enumeration, size 8 bits, EnvironmentalProcessEnvironmentStatus                         uid 249)
source	<xs:attribute name="environmentStatus" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Environment status (SISO bitfield enumeration, size 8 bits, EnvironmentalProcessEnvironmentStatus                         uid 249)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EnvironmentalProcessPdu/@numberOfEnvironmentRecords

type	xs:unsignedShort
annotation	appinfo number of environment records
source	<xs:attribute name="numberOfEnvironmentRecords" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>number of environment records</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EnvironmentalProcessPdu/@sequenceNumber

type	xs:unsignedShort
annotation	appinfo PDU sequence number for the environmental process if pdu sequencing required
source	<xs:attribute name="sequenceNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>PDU sequence number for the environmental process if pdu sequencing required</xs:appinfo>   </xs:annotation> </xs:attribute>

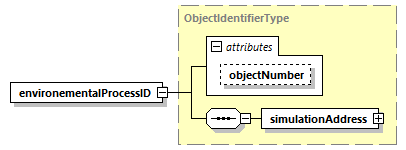

element EnvironmentalProcessPdu/environementalProcessID

diagram
type	ObjectIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation objectNumber   xs:unsignedShort            appinfo object number
annotation	appinfo Environmental process ID provides a unique identifier
source	<xs:element name="environementalProcessID" type="ObjectIdentifierType">   <xs:annotation>     <xs:appinfo>Environmental process ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:element>

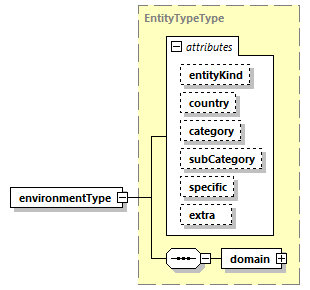

element EnvironmentalProcessPdu/environmentType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Environment type
source	<xs:element name="environmentType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Environment type</xs:appinfo>   </xs:annotation> </xs:element>

element EnvironmentalProcessPdu/Environment

diagram
type	EnvironmentType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation environmentType   xs:string            appinfo Record type (SISO enumeration EnvironmentalProcessRecordType uid 250) length   xs:unsignedShort            appinfo length, in bits index   xs:unsignedByte            appinfo Identify the sequentially numbered record index padding1   xs:unsignedByte            appinfo padding geometry               appinfo Geometry or state record padding2   xs:unsignedInt
annotation	appinfo environmemt records (length of list found in field numberOfEnvironmentRecords)
source	<xs:element name="Environment" type="EnvironmentType">   <xs:annotation>     <xs:appinfo>environmemt records (length of list found in field numberOfEnvironmentRecords)</xs:appinfo>   </xs:annotation> </xs:element>
