complexType EventIdentifierType

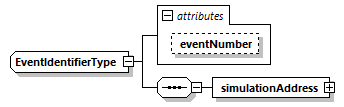

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	simulationAddress
used by	elements  CollisionElasticPdu/collisionEventID CollisionPdu/eventID DetonationPdu/eventID DirectedEnergyFirePdu/eventID FirePdu/eventID ElectromagneticEmissionPdu/eventID IFFPdu/eventID UnderwaterAcousticPdu/eventID LEDetonationPdu/eventId LEFirePdu/eventId DirectedEnergyDamageType/fireEventID LaunchedMunitionRecordType/fireEventID
attributes	Name   Type   Use   Default   Fixed   Annotation eventNumber   xs:unsignedShort
annotation	appinfo Identifies an event in the world. Use this format for every PDU EXCEPT the LiveEntityPdu.             Section 6.2.34.
source	<xs:complexType name="EventIdentifierType" abstract="false">   <xs:annotation>     <xs:appinfo>Identifies an event in the world. Use this format for every PDU EXCEPT the LiveEntityPdu.             Section 6.2.34.          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="simulationAddress" type="SimulationAddressType">           <xs:annotation>             <xs:appinfo>Site and application IDs</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="eventNumber" type="xs:unsignedShort"/>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EventIdentifierType/@eventNumber

type	xs:unsignedShort
source	<xs:attribute name="eventNumber" type="xs:unsignedShort"/>

element EventIdentifierType/simulationAddress

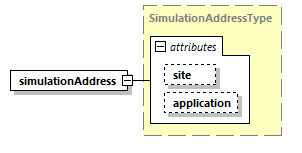

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo Site and application IDs
source	<xs:element name="simulationAddress" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>Site and application IDs</xs:appinfo>   </xs:annotation> </xs:element>
