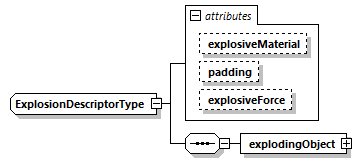

complexType ExplosionDescriptorType

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	explodingObject
attributes	Name   Type   Use   Default   Fixed   Annotation explosiveMaterial   xs:string            appinfo Material that exploded. Can be grain dust, tnt, gasoline, etc. Enumeration (SISO enumeration                      ExplosiveMaterialCategories uid 310)                   padding   xs:unsignedShort            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   explosiveForce   xs:float            appinfo Force of explosion, in equivalent KG of TNT
annotation	appinfo Explosion of a non-munition. Section 6.2.19.3
source	<xs:complexType name="ExplosionDescriptorType" abstract="false">   <xs:annotation>     <xs:appinfo>Explosion of a non-munition. Section 6.2.19.3</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="explodingObject" type="EntityTypeType">           <xs:annotation>             <xs:appinfo>Type of the object that exploded. See 6.2.30</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="explosiveMaterial" type="xs:string">         <xs:annotation>           <xs:appinfo>Material that exploded. Can be grain dust, tnt, gasoline, etc. Enumeration (SISO enumeration                      ExplosiveMaterialCategories uid 310)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="explosiveForce" type="xs:float">         <xs:annotation>           <xs:appinfo>Force of explosion, in equivalent KG of TNT</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute ExplosionDescriptorType/@explosiveMaterial

type	xs:string
annotation	appinfo Material that exploded. Can be grain dust, tnt, gasoline, etc. Enumeration (SISO enumeration                      ExplosiveMaterialCategories uid 310)
source	<xs:attribute name="explosiveMaterial" type="xs:string">   <xs:annotation>     <xs:appinfo>Material that exploded. Can be grain dust, tnt, gasoline, etc. Enumeration (SISO enumeration                      ExplosiveMaterialCategories uid 310)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ExplosionDescriptorType/@padding

type	xs:unsignedShort
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ExplosionDescriptorType/@explosiveForce

type	xs:float
annotation	appinfo Force of explosion, in equivalent KG of TNT
source	<xs:attribute name="explosiveForce" type="xs:float">   <xs:annotation>     <xs:appinfo>Force of explosion, in equivalent KG of TNT</xs:appinfo>   </xs:annotation> </xs:attribute>

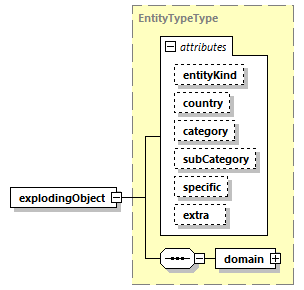

element ExplosionDescriptorType/explodingObject

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Type of the object that exploded. See 6.2.30
source	<xs:element name="explodingObject" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Type of the object that exploded. See 6.2.30</xs:appinfo>   </xs:annotation> </xs:element>
