complexType FundamentalOperationalDataType

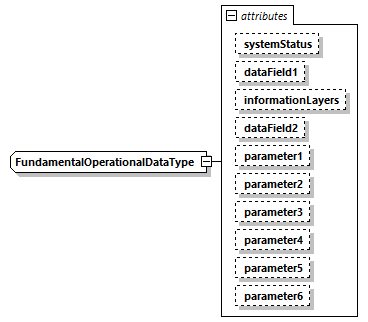

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  IFFPdu/fundamentalParameters
attributes	Name   Type   Use   Default   Fixed   Annotation systemStatus   xs:unsignedByte            appinfo system status, IEEE DIS 7 defined dataField1   xs:unsignedByte            appinfo data field 1 informationLayers   xs:unsignedByte            appinfo eight boolean fields dataField2   xs:unsignedByte            appinfo enumeration parameter1   xs:unsignedShort            appinfo parameter, enumeration parameter2   xs:unsignedShort            appinfo parameter, enumeration parameter3   xs:unsignedShort            appinfo parameter, enumeration parameter4   xs:unsignedShort            appinfo parameter, enumeration parameter5   xs:unsignedShort            appinfo parameter, enumeration parameter6   xs:unsignedShort            appinfo parameter, enumeration
annotation	appinfo Basic operational data for IFF. Section 6.2.39
source	<xs:complexType name="FundamentalOperationalDataType" abstract="false">   <xs:annotation>     <xs:appinfo>Basic operational data for IFF. Section 6.2.39</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="systemStatus" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>system status, IEEE DIS 7 defined</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="dataField1" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>data field 1</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="informationLayers" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>eight boolean fields</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="dataField2" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameter1" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>parameter, enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameter2" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>parameter, enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameter3" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>parameter, enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameter4" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>parameter, enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameter5" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>parameter, enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameter6" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>parameter, enumeration</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute FundamentalOperationalDataType/@systemStatus

type	xs:unsignedByte
annotation	appinfo system status, IEEE DIS 7 defined
source	<xs:attribute name="systemStatus" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>system status, IEEE DIS 7 defined</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@dataField1

type	xs:unsignedByte
annotation	appinfo data field 1
source	<xs:attribute name="dataField1" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>data field 1</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@informationLayers

type	xs:unsignedByte
annotation	appinfo eight boolean fields
source	<xs:attribute name="informationLayers" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>eight boolean fields</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@dataField2

type	xs:unsignedByte
annotation	appinfo enumeration
source	<xs:attribute name="dataField2" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@parameter1

type	xs:unsignedShort
annotation	appinfo parameter, enumeration
source	<xs:attribute name="parameter1" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>parameter, enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@parameter2

type	xs:unsignedShort
annotation	appinfo parameter, enumeration
source	<xs:attribute name="parameter2" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>parameter, enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@parameter3

type	xs:unsignedShort
annotation	appinfo parameter, enumeration
source	<xs:attribute name="parameter3" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>parameter, enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@parameter4

type	xs:unsignedShort
annotation	appinfo parameter, enumeration
source	<xs:attribute name="parameter4" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>parameter, enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@parameter5

type	xs:unsignedShort
annotation	appinfo parameter, enumeration
source	<xs:attribute name="parameter5" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>parameter, enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute FundamentalOperationalDataType/@parameter6

type	xs:unsignedShort
annotation	appinfo parameter, enumeration
source	<xs:attribute name="parameter6" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>parameter, enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>
