complexType GridAxisDescriptorFixedType

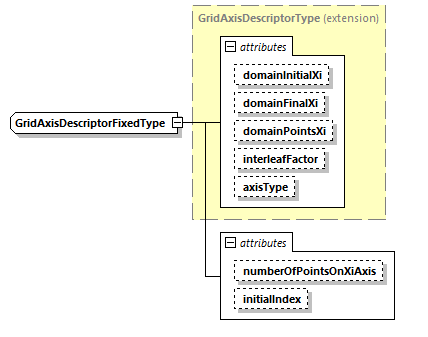

diagram
type	extension of GridAxisDescriptorType
properties	base  GridAxisDescriptorType abstract  false
attributes	Name   Type   Use   Default   Fixed   Annotation domainInitialXi   xs:double            appinfo coordinate of the grid origin or initial value domainFinalXi   xs:double            appinfo coordinate of the endpoint or final value domainPointsXi   xs:unsignedShort            appinfo The number of grid points along the Xi domain axis for the enviornmental state data interleafFactor   xs:unsignedByte            appinfo interleaf factor along the domain axis. axisType   xs:string            appinfo type of grid axis (SISO enumeration GridAxisDescriptorAxisType uid 377) numberOfPointsOnXiAxis   xs:unsignedShort            appinfo Number of grid locations along Xi axis initialIndex   xs:unsignedShort            appinfo initial grid point for the current pdu
annotation	appinfo Grid axis record for fixed data. Section 6.2.41
source	<xs:complexType name="GridAxisDescriptorFixedType" abstract="false">   <xs:annotation>     <xs:appinfo>Grid axis record for fixed data. Section 6.2.41</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="GridAxisDescriptorType">       <xs:attribute name="numberOfPointsOnXiAxis" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Number of grid locations along Xi axis</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="initialIndex" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>initial grid point for the current pdu</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='GridAxisDescriptorType'--> </xs:complexType>

attribute GridAxisDescriptorFixedType/@numberOfPointsOnXiAxis

type	xs:unsignedShort
annotation	appinfo Number of grid locations along Xi axis
source	<xs:attribute name="numberOfPointsOnXiAxis" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Number of grid locations along Xi axis</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridAxisDescriptorFixedType/@initialIndex

type	xs:unsignedShort
annotation	appinfo initial grid point for the current pdu
source	<xs:attribute name="initialIndex" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>initial grid point for the current pdu</xs:appinfo>   </xs:annotation> </xs:attribute>
