complexType GridAxisDescriptorVariableType

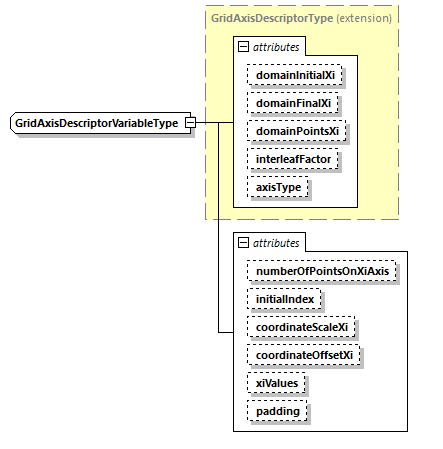

diagram
type	extension of GridAxisDescriptorType
properties	base  GridAxisDescriptorType abstract  false
attributes	Name   Type   Use   Default   Fixed   Annotation domainInitialXi   xs:double            appinfo coordinate of the grid origin or initial value domainFinalXi   xs:double            appinfo coordinate of the endpoint or final value domainPointsXi   xs:unsignedShort            appinfo The number of grid points along the Xi domain axis for the enviornmental state data interleafFactor   xs:unsignedByte            appinfo interleaf factor along the domain axis. axisType   xs:string            appinfo type of grid axis (SISO enumeration GridAxisDescriptorAxisType uid 377) numberOfPointsOnXiAxis   xs:unsignedShort            appinfo Number of grid locations along Xi axis initialIndex   xs:unsignedShort            appinfo initial grid point for the current pdu coordinateScaleXi   xs:double            appinfo value that linearly scales the coordinates of the grid locations for the xi axis coordinateOffsetXi   xs:double            appinfo The constant offset value that shall be applied to the grid locations for the xi axis xiValues               appinfo list of coordinates padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo Grid axis descriptor fo variable spacing axis data.
source	<xs:complexType name="GridAxisDescriptorVariableType" abstract="false">   <xs:annotation>     <xs:appinfo>Grid axis descriptor fo variable spacing axis data.</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="GridAxisDescriptorType">       <xs:attribute name="numberOfPointsOnXiAxis" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Number of grid locations along Xi axis</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="initialIndex" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>initial grid point for the current pdu</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="coordinateScaleXi" type="xs:double">         <xs:annotation>           <xs:appinfo>value that linearly scales the coordinates of the grid locations for the xi axis</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="coordinateOffsetXi" type="xs:double">         <xs:annotation>           <xs:appinfo>The constant offset value that shall be applied to the grid locations for the xi axis</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="xiValues">         <xs:annotation>           <xs:appinfo>list of coordinates</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedInt">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='GridAxisDescriptorType'--> </xs:complexType>

attribute GridAxisDescriptorVariableType/@numberOfPointsOnXiAxis

type	xs:unsignedShort
annotation	appinfo Number of grid locations along Xi axis
source	<xs:attribute name="numberOfPointsOnXiAxis" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Number of grid locations along Xi axis</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridAxisDescriptorVariableType/@initialIndex

type	xs:unsignedShort
annotation	appinfo initial grid point for the current pdu
source	<xs:attribute name="initialIndex" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>initial grid point for the current pdu</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridAxisDescriptorVariableType/@coordinateScaleXi

type	xs:double
annotation	appinfo value that linearly scales the coordinates of the grid locations for the xi axis
source	<xs:attribute name="coordinateScaleXi" type="xs:double">   <xs:annotation>     <xs:appinfo>value that linearly scales the coordinates of the grid locations for the xi axis</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridAxisDescriptorVariableType/@coordinateOffsetXi

type	xs:double
annotation	appinfo The constant offset value that shall be applied to the grid locations for the xi axis
source	<xs:attribute name="coordinateOffsetXi" type="xs:double">   <xs:annotation>     <xs:appinfo>The constant offset value that shall be applied to the grid locations for the xi axis</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridAxisDescriptorVariableType/@xiValues

annotation	appinfo list of coordinates
source	<xs:attribute name="xiValues">   <xs:annotation>     <xs:appinfo>list of coordinates</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridAxisDescriptorVariableType/@padding

type	xs:unsignedInt
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedInt">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>
