complexType GridDataType2Type

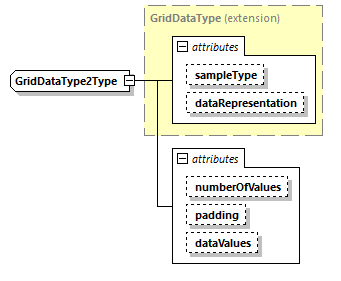

diagram
type	extension of GridDataType
properties	base  GridDataType abstract  false
attributes	Name   Type   Use   Default   Fixed   Annotation sampleType   xs:string            appinfo (SISO enumeration GriddedDataSampleType uid 246) dataRepresentation   xs:string            appinfo (SISO enumeration GriddedDataDataRepresentation uid 247) numberOfValues   xs:unsignedShort            padding   xs:unsignedShort            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   dataValues   derived by: xs:list            appinfo (length of list found in field numberOfValues)
annotation	appinfo 6.2.41, table 70 (length of list found in field numberOfValues)
source	<xs:complexType name="GridDataType2Type" abstract="false">   <xs:annotation>     <xs:appinfo>6.2.41, table 70 (length of list found in field numberOfValues)</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="GridDataType">       <xs:attribute name="numberOfValues" type="xs:unsignedShort"/>       <xs:attribute name="padding" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="dataValues">         <xs:annotation>           <xs:appinfo>(length of list found in field numberOfValues)</xs:appinfo>         </xs:annotation>         <xs:simpleType>           <xs:annotation>             <xs:appinfo>Attribute numberOfValues determines the length of this list.</xs:appinfo>           </xs:annotation>           <xs:restriction>             <xs:simpleType>               <xs:list itemType="xs:float"/>             </xs:simpleType>           </xs:restriction>         </xs:simpleType>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='GridDataType'--> </xs:complexType>

attribute GridDataType2Type/@numberOfValues

type	xs:unsignedShort
source	<xs:attribute name="numberOfValues" type="xs:unsignedShort"/>

attribute GridDataType2Type/@padding

type	xs:unsignedShort
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GridDataType2Type/@dataValues

type	restriction of (list of xs:float)
annotation	appinfo (length of list found in field numberOfValues)
source	<xs:attribute name="dataValues">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfValues)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfValues determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:float"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>
