complexType GroupIDType

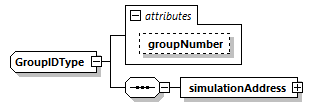

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation groupNumber   xs:unsignedShort            appinfo group number
annotation	appinfo Unique designation of a group of entities contained in the isGroupOfPdu. Represents             a group of entities rather than a single entity. Section 6.2.43
source	<xs:complexType name="GroupIDType" abstract="false">   <xs:annotation>     <xs:appinfo>Unique designation of a group of entities contained in the isGroupOfPdu. Represents             a group of entities rather than a single entity. Section 6.2.43          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="simulationAddress" type="SimulationAddressType">           <xs:annotation>             <xs:appinfo>Simulation address (site and application number)</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="groupNumber" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>group number</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute GroupIDType/@groupNumber

type	xs:unsignedShort
annotation	appinfo group number
source	<xs:attribute name="groupNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>group number</xs:appinfo>   </xs:annotation> </xs:attribute>

element GroupIDType/simulationAddress

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo Simulation address (site and application number)
source	<xs:element name="simulationAddress" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>Simulation address (site and application number)</xs:appinfo>   </xs:annotation> </xs:element>
