complexType InformationOperationsFamilyPduType

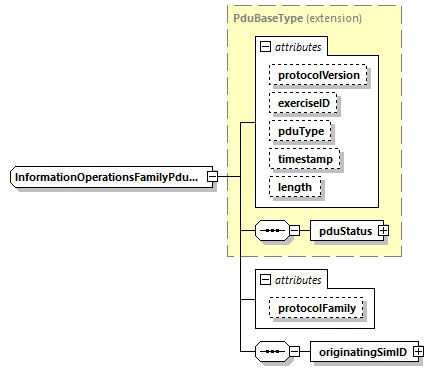

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus originatingSimID
used by	elements  InformationOperationsActionPdu InformationOperationsReportPdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.INFORMATION_OPERATIONS
annotation	appinfo Information operations (IO) are the integrated employment of electronic warfare (EW),             computer network operations (CNO), psychological operations (PSYOP), military deception             (MILDEC), and operations security (OPSEC), along with specific supporting capabilities,             to influence, disrupt, corrupt, or otherwise affect enemy information and decision             making while protecting friendly information operations.             <xs:attribute name="id" type="xs:integer" fixed="13"/>
source	<xs:complexType name="InformationOperationsFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>Information operations (IO) are the integrated employment of electronic warfare (EW),             computer network operations (CNO), psychological operations (PSYOP), military deception             (MILDEC), and operations security (OPSEC), along with specific supporting capabilities,             to influence, disrupt, corrupt, or otherwise affect enemy information and decision             making while protecting friendly information operations.             <xs:attribute name="id" type="xs:integer" fixed="13"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:sequence>         <xs:element name="originatingSimID" type="EntityIDType">           <xs:annotation>             <xs:appinfo>Object originating the request</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="protocolFamily" default="DISProtocolFamily.INFORMATION_OPERATIONS"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute InformationOperationsFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.INFORMATION_OPERATIONS
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.INFORMATION_OPERATIONS"/>

element InformationOperationsFamilyPduType/originatingSimID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Object originating the request
source	<xs:element name="originatingSimID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Object originating the request</xs:appinfo>   </xs:annotation> </xs:element>
