element IntercomSignalPdu

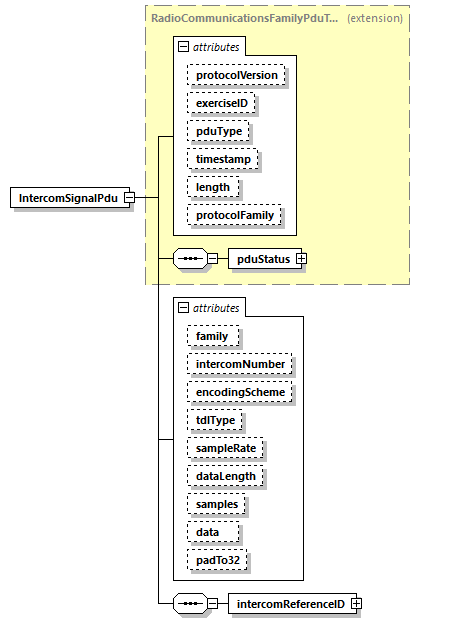

diagram
type	extension of RadioCommunicationsFamilyPduType
properties	content  complex
children	pduStatus intercomReferenceID
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   intercomNumber   xs:unsignedShort            appinfo ID of communications device encodingScheme   xs:unsignedShort            appinfo encoding scheme tdlType   xs:string            appinfo tactical data link type (SISO enumeration SignalTDLType uid 178) sampleRate   xs:unsignedLong            appinfo sample rate dataLength   xs:unsignedShort            appinfo data length samples   xs:unsignedShort            appinfo samples data   derived by: xs:list            appinfo data bytes (length of list found in field dataLength) padTo32   xs:unsignedLong            appinfo Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu
annotation	appinfo 5.8.6 Conveys the audio or digital data that is used to communicate between simulated             intercom devices (length of list found in field dataLength)             <xs:attribute name="id" type="xs:integer" fixed="31"/>
source	<xs:element name="IntercomSignalPdu">   <xs:annotation>     <xs:appinfo>5.8.6 Conveys the audio or digital data that is used to communicate between simulated             intercom devices (length of list found in field dataLength)             <xs:attribute name="id" type="xs:integer" fixed="31"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="RadioCommunicationsFamilyPduType">         <xs:sequence>           <xs:element name="intercomReferenceID" type="IntercomReferenceIDType">             <xs:annotation>               <xs:appinfo>The unique designation of an attached or unattached intercom in an event or exercise</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>         <xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>         <xs:attribute name="intercomNumber" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>ID of communications device</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="encodingScheme" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>encoding scheme</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="tdlType" type="xs:string">           <xs:annotation>             <xs:appinfo>tactical data link type (SISO enumeration SignalTDLType uid 178)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="sampleRate" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>sample rate</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="dataLength" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>data length</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="samples" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>samples</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="data">           <xs:annotation>             <xs:appinfo>data bytes (length of list found in field dataLength)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute dataLength determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:unsignedByte"/>               </xs:simpleType>               <xs:length value="0" fixed="false"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="padTo32" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute IntercomSignalPdu/@family

properties	fixed  RadioCommunicationsFamilyPduType
source	<xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>

attribute IntercomSignalPdu/@intercomNumber

type	xs:unsignedShort
annotation	appinfo ID of communications device
source	<xs:attribute name="intercomNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>ID of communications device</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IntercomSignalPdu/@encodingScheme

type	xs:unsignedShort
annotation	appinfo encoding scheme
source	<xs:attribute name="encodingScheme" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>encoding scheme</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IntercomSignalPdu/@tdlType

type	xs:string
annotation	appinfo tactical data link type (SISO enumeration SignalTDLType uid 178)
source	<xs:attribute name="tdlType" type="xs:string">   <xs:annotation>     <xs:appinfo>tactical data link type (SISO enumeration SignalTDLType uid 178)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IntercomSignalPdu/@sampleRate

type	xs:unsignedLong
annotation	appinfo sample rate
source	<xs:attribute name="sampleRate" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>sample rate</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IntercomSignalPdu/@dataLength

type	xs:unsignedShort
annotation	appinfo data length
source	<xs:attribute name="dataLength" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>data length</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IntercomSignalPdu/@samples

type	xs:unsignedShort
annotation	appinfo samples
source	<xs:attribute name="samples" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>samples</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute IntercomSignalPdu/@data

type	restriction of (list of xs:unsignedByte)
facets	Kind  Value  Annotation length  0
annotation	appinfo data bytes (length of list found in field dataLength)
source	<xs:attribute name="data">   <xs:annotation>     <xs:appinfo>data bytes (length of list found in field dataLength)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute dataLength determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:unsignedByte"/>       </xs:simpleType>       <xs:length value="0" fixed="false"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute IntercomSignalPdu/@padTo32

type	xs:unsignedLong
annotation	appinfo Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu
source	<xs:attribute name="padTo32" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu                      </xs:appinfo>   </xs:annotation> </xs:attribute>

element IntercomSignalPdu/intercomReferenceID

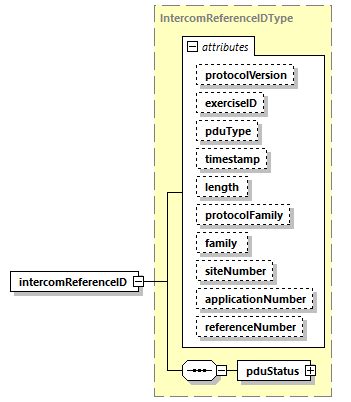

diagram
type	IntercomReferenceIDType
properties	content  complex
children	pduStatus
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   siteNumber   xs:unsignedShort            applicationNumber   xs:unsignedShort            referenceNumber   xs:unsignedShort
annotation	appinfo The unique designation of an attached or unattached intercom in an event or exercise
source	<xs:element name="intercomReferenceID" type="IntercomReferenceIDType">   <xs:annotation>     <xs:appinfo>The unique designation of an attached or unattached intercom in an event or exercise</xs:appinfo>   </xs:annotation> </xs:element>
