element LinearObjectStatePdu

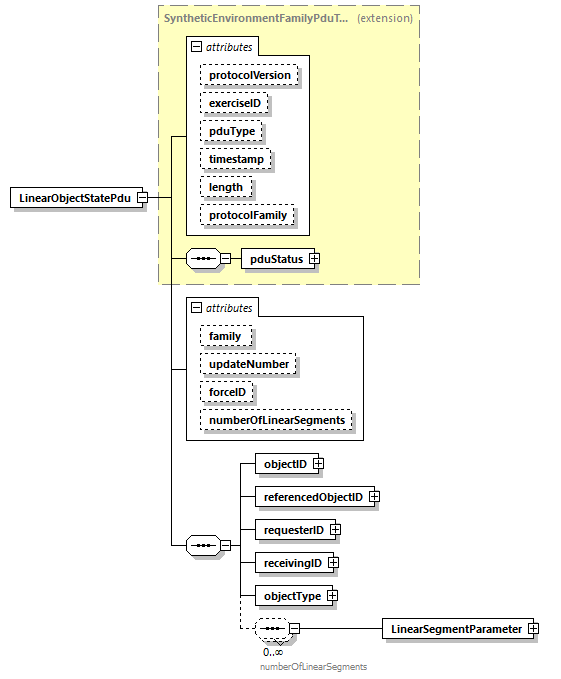

diagram
type	extension of SyntheticEnvironmentFamilyPduType
properties	content  complex
children	pduStatus objectID referencedObjectID requesterID receivingID objectType LinearSegmentParameter
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SYNTHETIC_ENVIRONMENT      family            SyntheticEnvironmentFamilyPduType   updateNumber   xs:unsignedShort            appinfo unique update number of each state transition of an object forceID   xs:string            appinfo force ID provides a unique identifier (SISO enumeration ForceID uid 6) numberOfLinearSegments   xs:unsignedByte            appinfo number of linear segment parameters
annotation	appinfo 7.10.5 Used to communicate detailed information about the addition/modification of             a synthetic environment object that is geometrically anchored to the terrain with             one point and has size and orientation. (length of list found in field numberOfLinearSegments)             <xs:attribute name="id" type="xs:integer" fixed="44"/>
source	<xs:element name="LinearObjectStatePdu">   <xs:annotation>     <xs:appinfo>7.10.5 Used to communicate detailed information about the addition/modification of             a synthetic environment object that is geometrically anchored to the terrain with             one point and has size and orientation. (length of list found in field numberOfLinearSegments)             <xs:attribute name="id" type="xs:integer" fixed="44"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SyntheticEnvironmentFamilyPduType">         <xs:sequence>           <xs:element name="objectID" type="ObjectIdentifierType">             <xs:annotation>               <xs:appinfo>Object in synthetic environment</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="referencedObjectID" type="ObjectIdentifierType">             <xs:annotation>               <xs:appinfo>Object with which this point object is associated</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="requesterID" type="SimulationAddressType">             <xs:annotation>               <xs:appinfo>requesterID</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="receivingID" type="SimulationAddressType">             <xs:annotation>               <xs:appinfo>receiver ID provides a unique identifier</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="objectType" type="ObjectTypeType">             <xs:annotation>               <xs:appinfo>Object type</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) LinearObjectStatePdu linearSegmentParameters with objectlist classRef name=LinearSegmentParameter, type=LinearSegmentParameterType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfLinearSegments and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfLinearSegments</xs:documentation>             </xs:annotation>             <xs:element name="LinearSegmentParameter" type="LinearSegmentParameterType">               <xs:annotation>                 <xs:appinfo>Linear segment parameters (length of list found in field numberOfLinearSegments)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>         <xs:attribute name="updateNumber" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>unique update number of each state transition of an object</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="forceID" type="xs:string">           <xs:annotation>             <xs:appinfo>force ID provides a unique identifier (SISO enumeration ForceID uid 6)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfLinearSegments" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>number of linear segment parameters</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute LinearObjectStatePdu/@family

properties	fixed  SyntheticEnvironmentFamilyPduType
source	<xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>

attribute LinearObjectStatePdu/@updateNumber

type	xs:unsignedShort
annotation	appinfo unique update number of each state transition of an object
source	<xs:attribute name="updateNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>unique update number of each state transition of an object</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute LinearObjectStatePdu/@forceID

type	xs:string
annotation	appinfo force ID provides a unique identifier (SISO enumeration ForceID uid 6)
source	<xs:attribute name="forceID" type="xs:string">   <xs:annotation>     <xs:appinfo>force ID provides a unique identifier (SISO enumeration ForceID uid 6)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute LinearObjectStatePdu/@numberOfLinearSegments

type	xs:unsignedByte
annotation	appinfo number of linear segment parameters
source	<xs:attribute name="numberOfLinearSegments" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>number of linear segment parameters</xs:appinfo>   </xs:annotation> </xs:attribute>

element LinearObjectStatePdu/objectID

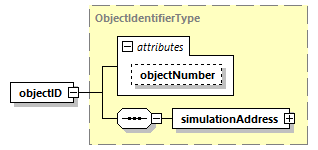

diagram
type	ObjectIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation objectNumber   xs:unsignedShort            appinfo object number
annotation	appinfo Object in synthetic environment
source	<xs:element name="objectID" type="ObjectIdentifierType">   <xs:annotation>     <xs:appinfo>Object in synthetic environment</xs:appinfo>   </xs:annotation> </xs:element>

element LinearObjectStatePdu/referencedObjectID

diagram
type	ObjectIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation objectNumber   xs:unsignedShort            appinfo object number
annotation	appinfo Object with which this point object is associated
source	<xs:element name="referencedObjectID" type="ObjectIdentifierType">   <xs:annotation>     <xs:appinfo>Object with which this point object is associated</xs:appinfo>   </xs:annotation> </xs:element>

element LinearObjectStatePdu/requesterID

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo requesterID
source	<xs:element name="requesterID" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>requesterID</xs:appinfo>   </xs:annotation> </xs:element>

element LinearObjectStatePdu/receivingID

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo receiver ID provides a unique identifier
source	<xs:element name="receivingID" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>receiver ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:element>

element LinearObjectStatePdu/objectType

diagram
type	ObjectTypeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation domain   xs:string            appinfo Domain of entity (air, surface, subsurface, space, etc.) (SISO enumeration PlatformDomain                      uid 8)                   objectKind   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration ObjectKind                      uid 225)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory of entity
annotation	appinfo Object type
source	<xs:element name="objectType" type="ObjectTypeType">   <xs:annotation>     <xs:appinfo>Object type</xs:appinfo>   </xs:annotation> </xs:element>

element LinearObjectStatePdu/LinearSegmentParameter

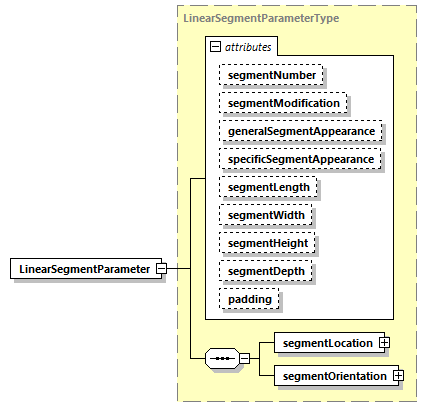

diagram
type	LinearSegmentParameterType
properties	content  complex
children	segmentLocation segmentOrientation
attributes	Name   Type   Use   Default   Fixed   Annotation segmentNumber   xs:unsignedByte            appinfo The individual segment of the linear segment segmentModification   xs:unsignedByte            appinfo whether a modification has been made to the point object's location or orientation                      (SISO bitfield enumeration, size 8 bits, ObjectStateModificationLinearObject UID 241)                   generalSegmentAppearance   xs:unsignedShort            appinfo general dynamic appearance attributes of the segment. This record shall be defined                      as a 16-bit record of enumerations. The values defined for this record are included                      in Section 12 of SISO-REF-010. (SISO bitfield enumeration, size 16 bits, ObjectStateAppearanceGeneral                      UID 229)                   specificSegmentAppearance   xs:unsignedLong            appinfo This field shall specify specific dynamic appearance attributes of the segment. This                      record shall be defined as a 32-bit record of enumerations.                   segmentLength   xs:float            appinfo length of the linear segment, in meters, extending in the positive X direction segmentWidth   xs:float            appinfo The total width of the linear segment, in meters, shall be specified by a 16-bit unsigned                      integer. One-half of the width shall extend in the positive Y direction, and one-half                      of the width shall extend in the negative Y direction.                   segmentHeight   xs:float            appinfo The height of the linear segment, in meters, above ground shall be specified by a                      16-bit unsigned integer.                   segmentDepth   xs:float            appinfo The depth of the linear segment, in meters, below ground level padding   xs:unsignedLong            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo Linear segment parameters (length of list found in field numberOfLinearSegments)
source	<xs:element name="LinearSegmentParameter" type="LinearSegmentParameterType">   <xs:annotation>     <xs:appinfo>Linear segment parameters (length of list found in field numberOfLinearSegments)</xs:appinfo>   </xs:annotation> </xs:element>
