complexType LiveEntityOrientationErrorType

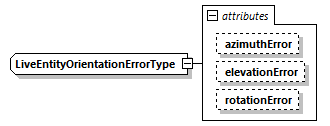

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  TSPIPdu/orientationError
attributes	Name   Type   Use   Default   Fixed   Annotation azimuthError   xs:unsignedShort            elevationError   xs:unsignedShort            rotationError   xs:unsignedShort
annotation	appinfo 16-bit fixed binaries
source	<xs:complexType name="LiveEntityOrientationErrorType" abstract="false">   <xs:annotation>     <xs:appinfo>16-bit fixed binaries</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="azimuthError" type="xs:unsignedShort"/>       <xs:attribute name="elevationError" type="xs:unsignedShort"/>       <xs:attribute name="rotationError" type="xs:unsignedShort"/>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute LiveEntityOrientationErrorType/@azimuthError

type	xs:unsignedShort
source	<xs:attribute name="azimuthError" type="xs:unsignedShort"/>

attribute LiveEntityOrientationErrorType/@elevationError

type	xs:unsignedShort
source	<xs:attribute name="elevationError" type="xs:unsignedShort"/>

attribute LiveEntityOrientationErrorType/@rotationError

type	xs:unsignedShort
source	<xs:attribute name="rotationError" type="xs:unsignedShort"/>
