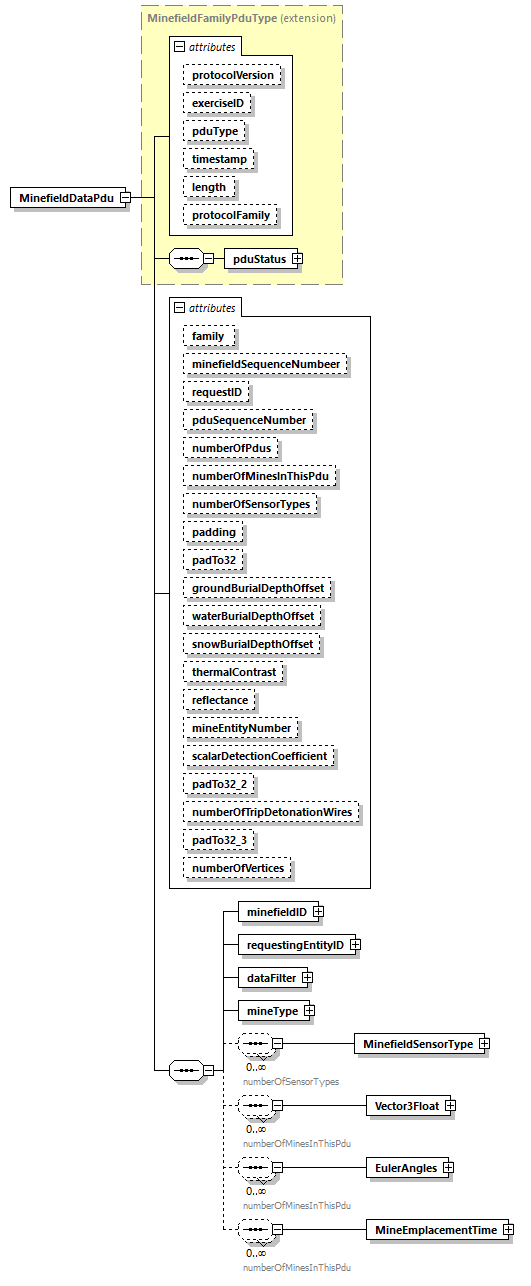

element MinefieldDataPdu

diagram
type	extension of MinefieldFamilyPduType
properties	content  complex
children	pduStatus minefieldID requestingEntityID dataFilter mineType MinefieldSensorType Vector3Float EulerAngles MineEmplacementTime
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.MINEFIELD      family            MinefieldFamilyPduType   minefieldSequenceNumbeer   xs:unsignedShort            appinfo Minefield sequence number requestID   xs:unsignedByte            appinfo request ID provides a unique identifier pduSequenceNumber   xs:unsignedByte            appinfo pdu sequence number numberOfPdus   xs:unsignedByte            appinfo number of pdus in response numberOfMinesInThisPdu   xs:unsignedByte            appinfo how many mines are in this PDU numberOfSensorTypes   xs:unsignedByte            appinfo how many sensor type are in this PDU padding   xs:unsignedByte            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data                      padTo32   xs:unsignedLong            groundBurialDepthOffset   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) waterBurialDepthOffset   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) snowBurialDepthOffset   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) thermalContrast   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) reflectance   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) mineEntityNumber   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) scalarDetectionCoefficient   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) padTo32_2   xs:unsignedLong            numberOfTripDetonationWires   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu) padTo32_3   xs:unsignedLong            numberOfVertices   derived by: xs:list            appinfo (length of list found in field numberOfMinesInThisPdu)
annotation	appinfo 5.10.4 Information about the location and status of a collection of mines in a minefield             is conveyed through the Minefield Data PDU on an individual mine basis. (length of             list found in field numberOfSensorTypes numberOfMinesInThisPdu numberOfMinesInThisPdu             numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu             numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu             numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu)             <xs:attribute name="id" type="xs:integer" fixed="39"/>
source	<xs:element name="MinefieldDataPdu">   <xs:annotation>     <xs:appinfo>5.10.4 Information about the location and status of a collection of mines in a minefield             is conveyed through the Minefield Data PDU on an individual mine basis. (length of             list found in field numberOfSensorTypes numberOfMinesInThisPdu numberOfMinesInThisPdu             numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu             numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu             numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu numberOfMinesInThisPdu)             <xs:attribute name="id" type="xs:integer" fixed="39"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="MinefieldFamilyPduType">         <xs:sequence>           <xs:element name="minefieldID" type="MinefieldIdentifierType">             <xs:annotation>               <xs:appinfo>Minefield ID provides a unique identifier</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="requestingEntityID" type="SimulationIdentifierType">             <xs:annotation>               <xs:appinfo>ID of entity making request</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="dataFilter" type="DataFilterRecordType">             <xs:annotation>               <xs:appinfo>32 boolean field</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="mineType" type="EntityTypeType">             <xs:annotation>               <xs:appinfo>Mine type</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) MinefieldDataPdu sensorTypes with objectlist classRef name=MinefieldSensorType, type=MinefieldSensorTypeType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfSensorTypes and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfSensorTypes</xs:documentation>             </xs:annotation>             <xs:element name="MinefieldSensorType" type="MinefieldSensorTypeType">               <xs:annotation>                 <xs:appinfo>Sensor types, each 16-bits long (length of list found in field numberOfSensorTypes)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>           <!--Attribute (as element) MinefieldDataPdu mineLocation with objectlist classRef name=Vector3Float, type=Vector3FloatType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfMinesInThisPdu and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfMinesInThisPdu</xs:documentation>             </xs:annotation>             <xs:element name="Vector3Float" type="Vector3FloatType">               <xs:annotation>                 <xs:appinfo>Mine locations (length of list found in field numberOfMinesInThisPdu)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>           <!--Attribute (as element) MinefieldDataPdu mineOrientation with objectlist classRef name=EulerAngles, type=EulerAnglesType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfMinesInThisPdu and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfMinesInThisPdu</xs:documentation>             </xs:annotation>             <xs:element name="EulerAngles" type="EulerAnglesType">               <xs:annotation>                 <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>           <!--Attribute (as element) MinefieldDataPdu mineEmplacementTime with objectlist classRef name=MineEmplacementTime, type=MineEmplacementTimeType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfMinesInThisPdu and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfMinesInThisPdu</xs:documentation>             </xs:annotation>             <xs:element name="MineEmplacementTime" type="MineEmplacementTimeType">               <xs:annotation>                 <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="MinefieldFamilyPduType"/>         <xs:attribute name="minefieldSequenceNumbeer" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>Minefield sequence number</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="requestID" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>request ID provides a unique identifier</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pduSequenceNumber" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>pdu sequence number</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfPdus" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>number of pdus in response</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfMinesInThisPdu" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>how many mines are in this PDU</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfSensorTypes" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>how many sensor type are in this PDU</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padTo32" type="xs:unsignedLong"/>         <xs:attribute name="groundBurialDepthOffset">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:float"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="waterBurialDepthOffset">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:float"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="snowBurialDepthOffset">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:float"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="thermalContrast">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:float"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="reflectance">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:float"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="mineEntityNumber">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:unsignedShort"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="scalarDetectionCoefficient">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:unsignedByte"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="padTo32_2" type="xs:unsignedLong"/>         <xs:attribute name="numberOfTripDetonationWires">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:unsignedByte"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="padTo32_3" type="xs:unsignedLong"/>         <xs:attribute name="numberOfVertices">           <xs:annotation>             <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>           </xs:annotation>           <xs:simpleType>             <xs:annotation>               <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>             </xs:annotation>             <xs:restriction>               <xs:simpleType>                 <xs:list itemType="xs:unsignedByte"/>               </xs:simpleType>             </xs:restriction>           </xs:simpleType>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute MinefieldDataPdu/@family

properties	fixed  MinefieldFamilyPduType
source	<xs:attribute name="family" fixed="MinefieldFamilyPduType"/>

attribute MinefieldDataPdu/@minefieldSequenceNumbeer

type	xs:unsignedShort
annotation	appinfo Minefield sequence number
source	<xs:attribute name="minefieldSequenceNumbeer" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Minefield sequence number</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@requestID

type	xs:unsignedByte
annotation	appinfo request ID provides a unique identifier
source	<xs:attribute name="requestID" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>request ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@pduSequenceNumber

type	xs:unsignedByte
annotation	appinfo pdu sequence number
source	<xs:attribute name="pduSequenceNumber" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>pdu sequence number</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@numberOfPdus

type	xs:unsignedByte
annotation	appinfo number of pdus in response
source	<xs:attribute name="numberOfPdus" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>number of pdus in response</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@numberOfMinesInThisPdu

type	xs:unsignedByte
annotation	appinfo how many mines are in this PDU
source	<xs:attribute name="numberOfMinesInThisPdu" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>how many mines are in this PDU</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@numberOfSensorTypes

type	xs:unsignedByte
annotation	appinfo how many sensor type are in this PDU
source	<xs:attribute name="numberOfSensorTypes" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>how many sensor type are in this PDU</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@padding

type	xs:unsignedByte
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data
source	<xs:attribute name="padding" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                         data                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MinefieldDataPdu/@padTo32

type	xs:unsignedLong
source	<xs:attribute name="padTo32" type="xs:unsignedLong"/>

attribute MinefieldDataPdu/@groundBurialDepthOffset

type	restriction of (list of xs:float)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="groundBurialDepthOffset">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:float"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@waterBurialDepthOffset

type	restriction of (list of xs:float)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="waterBurialDepthOffset">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:float"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@snowBurialDepthOffset

type	restriction of (list of xs:float)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="snowBurialDepthOffset">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:float"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@thermalContrast

type	restriction of (list of xs:float)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="thermalContrast">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:float"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@reflectance

type	restriction of (list of xs:float)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="reflectance">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:float"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@mineEntityNumber

type	restriction of (list of xs:unsignedShort)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="mineEntityNumber">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:unsignedShort"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@scalarDetectionCoefficient

type	restriction of (list of xs:unsignedByte)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="scalarDetectionCoefficient">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:unsignedByte"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@padTo32_2

type	xs:unsignedLong
source	<xs:attribute name="padTo32_2" type="xs:unsignedLong"/>

attribute MinefieldDataPdu/@numberOfTripDetonationWires

type	restriction of (list of xs:unsignedByte)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="numberOfTripDetonationWires">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:unsignedByte"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute MinefieldDataPdu/@padTo32_3

type	xs:unsignedLong
source	<xs:attribute name="padTo32_3" type="xs:unsignedLong"/>

attribute MinefieldDataPdu/@numberOfVertices

type	restriction of (list of xs:unsignedByte)
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:attribute name="numberOfVertices">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation>   <xs:simpleType>     <xs:annotation>       <xs:appinfo>Attribute numberOfMinesInThisPdu determines the length of this list.</xs:appinfo>     </xs:annotation>     <xs:restriction>       <xs:simpleType>         <xs:list itemType="xs:unsignedByte"/>       </xs:simpleType>     </xs:restriction>   </xs:simpleType> </xs:attribute>

element MinefieldDataPdu/minefieldID

diagram
type	MinefieldIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation minefieldNumber   xs:unsignedShort
annotation	appinfo Minefield ID provides a unique identifier
source	<xs:element name="minefieldID" type="MinefieldIdentifierType">   <xs:annotation>     <xs:appinfo>Minefield ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:element>

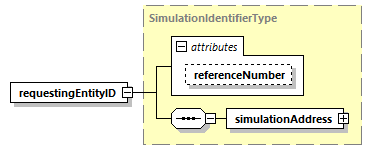

element MinefieldDataPdu/requestingEntityID

diagram
type	SimulationIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo ID of entity making request
source	<xs:element name="requestingEntityID" type="SimulationIdentifierType">   <xs:annotation>     <xs:appinfo>ID of entity making request</xs:appinfo>   </xs:annotation> </xs:element>

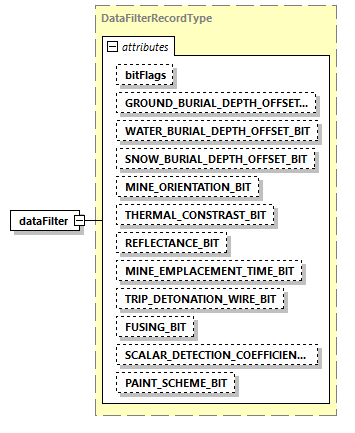

element MinefieldDataPdu/dataFilter

diagram
type	DataFilterRecordType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation bitFlags   xs:unsignedLong            appinfo Bitflags field GROUND_BURIAL_DEPTH_OFFSET_BIT   xs:unsignedLong         0   WATER_BURIAL_DEPTH_OFFSET_BIT   xs:unsignedLong         1   SNOW_BURIAL_DEPTH_OFFSET_BIT   xs:unsignedLong         2   MINE_ORIENTATION_BIT   xs:unsignedLong         3   THERMAL_CONSTRAST_BIT   xs:unsignedLong         4   REFLECTANCE_BIT   xs:unsignedLong         5   MINE_EMPLACEMENT_TIME_BIT   xs:unsignedLong         6   TRIP_DETONATION_WIRE_BIT   xs:unsignedLong         7   FUSING_BIT   xs:unsignedLong         8   SCALAR_DETECTION_COEFFICIENT_BIT   xs:unsignedLong         9   PAINT_SCHEME_BIT   xs:unsignedLong         10
annotation	appinfo 32 boolean field
source	<xs:element name="dataFilter" type="DataFilterRecordType">   <xs:annotation>     <xs:appinfo>32 boolean field</xs:appinfo>   </xs:annotation> </xs:element>

element MinefieldDataPdu/mineType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo Mine type
source	<xs:element name="mineType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>Mine type</xs:appinfo>   </xs:annotation> </xs:element>

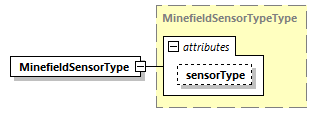

element MinefieldDataPdu/MinefieldSensorType

diagram
type	MinefieldSensorTypeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sensorType   xs:unsignedShort            appinfo sensor type. bit fields 0-3 are the type category, 4-15 are teh subcategory
annotation	appinfo Sensor types, each 16-bits long (length of list found in field numberOfSensorTypes)
source	<xs:element name="MinefieldSensorType" type="MinefieldSensorTypeType">   <xs:annotation>     <xs:appinfo>Sensor types, each 16-bits long (length of list found in field numberOfSensorTypes)</xs:appinfo>   </xs:annotation> </xs:element>

element MinefieldDataPdu/Vector3Float

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Mine locations (length of list found in field numberOfMinesInThisPdu)
source	<xs:element name="Vector3Float" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Mine locations (length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation> </xs:element>

element MinefieldDataPdu/EulerAngles

diagram
type	EulerAnglesType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation psi   xs:float            theta   xs:float            phi   xs:float
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:element name="EulerAngles" type="EulerAnglesType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation> </xs:element>

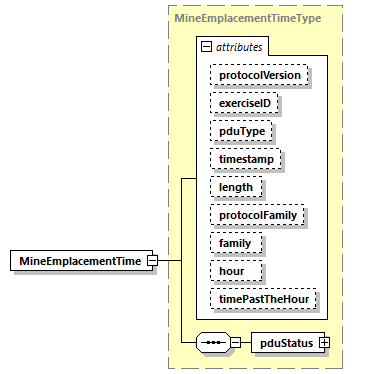

element MinefieldDataPdu/MineEmplacementTime

diagram
type	MineEmplacementTimeType
properties	content  complex
children	pduStatus
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.MINEFIELD      family            MinefieldFamilyPduType   hour   xs:unsignedLong            timePastTheHour   xs:unsignedLong
annotation	appinfo (length of list found in field numberOfMinesInThisPdu)
source	<xs:element name="MineEmplacementTime" type="MineEmplacementTimeType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfMinesInThisPdu)</xs:appinfo>   </xs:annotation> </xs:element>
