complexType MunitionReloadType

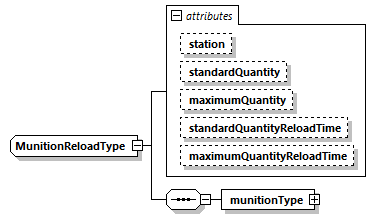

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	munitionType
attributes	Name   Type   Use   Default   Fixed   Annotation station   xs:unsignedLong            appinfo The station or launcher to which the munition is assigned. See Annex I standardQuantity   xs:unsignedShort            appinfo The standard quantity of this munition type normally loaded at this station/launcher                      if a station/launcher is specified.                   maximumQuantity   xs:unsignedShort            appinfo The maximum quantity of this munition type that this station/launcher is capable of                      holding when a station/launcher is specified                   standardQuantityReloadTime   xs:unsignedLong            appinfo numer of seconds of sim time required to reload the std qty maximumQuantityReloadTime   xs:unsignedLong            appinfo The number of seconds of sim time required to reload the max possible quantity
annotation	appinfo indicate weapons (munitions) previously communicated via the Munition record. Section             6.2.61
source	<xs:complexType name="MunitionReloadType" abstract="false">   <xs:annotation>     <xs:appinfo>indicate weapons (munitions) previously communicated via the Munition record. Section             6.2.61          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="munitionType" type="EntityTypeType">           <xs:annotation>             <xs:appinfo>This field shall identify the entity type of the munition. See section 6.2.30.</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="station" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>The station or launcher to which the munition is assigned. See Annex I</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="standardQuantity" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>The standard quantity of this munition type normally loaded at this station/launcher                      if a station/launcher is specified.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="maximumQuantity" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>The maximum quantity of this munition type that this station/launcher is capable of                      holding when a station/launcher is specified                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="standardQuantityReloadTime" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>numer of seconds of sim time required to reload the std qty</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="maximumQuantityReloadTime" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>The number of seconds of sim time required to reload the max possible quantity</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute MunitionReloadType/@station

type	xs:unsignedLong
annotation	appinfo The station or launcher to which the munition is assigned. See Annex I
source	<xs:attribute name="station" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>The station or launcher to which the munition is assigned. See Annex I</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MunitionReloadType/@standardQuantity

type	xs:unsignedShort
annotation	appinfo The standard quantity of this munition type normally loaded at this station/launcher                      if a station/launcher is specified.
source	<xs:attribute name="standardQuantity" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>The standard quantity of this munition type normally loaded at this station/launcher                      if a station/launcher is specified.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MunitionReloadType/@maximumQuantity

type	xs:unsignedShort
annotation	appinfo The maximum quantity of this munition type that this station/launcher is capable of                      holding when a station/launcher is specified
source	<xs:attribute name="maximumQuantity" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>The maximum quantity of this munition type that this station/launcher is capable of                      holding when a station/launcher is specified                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MunitionReloadType/@standardQuantityReloadTime

type	xs:unsignedLong
annotation	appinfo numer of seconds of sim time required to reload the std qty
source	<xs:attribute name="standardQuantityReloadTime" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>numer of seconds of sim time required to reload the std qty</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute MunitionReloadType/@maximumQuantityReloadTime

type	xs:unsignedLong
annotation	appinfo The number of seconds of sim time required to reload the max possible quantity
source	<xs:attribute name="maximumQuantityReloadTime" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>The number of seconds of sim time required to reload the max possible quantity</xs:appinfo>   </xs:annotation> </xs:attribute>

element MunitionReloadType/munitionType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo This field shall identify the entity type of the munition. See section 6.2.30.
source	<xs:element name="munitionType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>This field shall identify the entity type of the munition. See section 6.2.30.</xs:appinfo>   </xs:annotation> </xs:element>
