element RemoveEntityRPdu

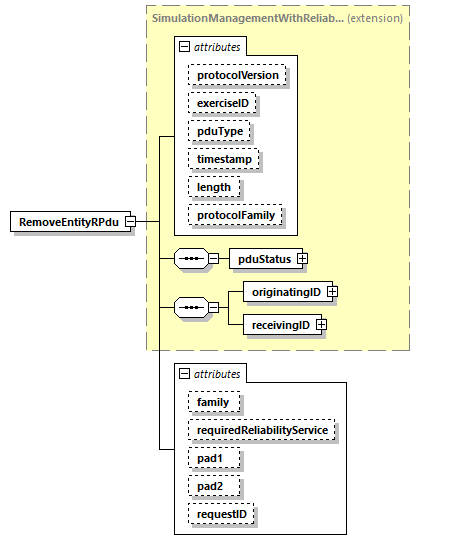

diagram DIS_7_2012.autogenerated_diagrams/DIS_7_2012.autogenerated_p267.png
type extension of SimulationManagementWithReliabilityFamilyPduType
properties
content complex
children pduStatus originatingID receivingID
used by
element DIS
attributes
Name  Type  Use  Default  Fixed  Annotation
protocolVersion  xs:string
appinfo
The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration
                     DISProtocolVersion uid 3)

exerciseID  xs:unsignedByte
appinfo
Exercise ID provides a unique identifier
pduType  xs:string
appinfo
Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)
timestamp  xs:unsignedLong
appinfo
Timestamp value
length  xs:unsignedShort
appinfo
Length, in bytes, of the PDU
protocolFamily      DISProtocolFamily.SIMULATION_MANAGEMENT_WITH_RELIABILITY
family        SimulationManagementWithReliabilityFamilyPduType
requiredReliabilityService  xs:string
appinfo
level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)

pad1  xs:unsignedByte
pad2  xs:unsignedShort
requestID  xs:unsignedLong
appinfo
Request ID provides a unique identifier
annotation
appinfo
5.12.4.3 Contains the same information as found in the Remove Entity PDU with the
            addition of the level of reliability service to be used for the removal action being
            requested.
            <xs:attribute name="id" type="xs:integer" fixed="52"/>
source <xs:element name="RemoveEntityRPdu">
  <xs:annotation>
    <xs:appinfo>5.12.4.3 Contains the same information as found in the Remove Entity PDU with the
            addition of the level of reliability service to be used for the removal action being
            requested.
            <xs:attribute name="id" type="xs:integer" fixed="52"/>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SimulationManagementWithReliabilityFamilyPduType">
        <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>
        <xs:attribute name="requiredReliabilityService" type="xs:string">
          <xs:annotation>
            <xs:appinfo>level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)
                     </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="pad1" type="xs:unsignedByte"/>
        <xs:attribute name="pad2" type="xs:unsignedShort"/>
        <xs:attribute name="requestID" type="xs:unsignedLong">
          <xs:annotation>
            <xs:appinfo>Request ID provides a unique identifier</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute RemoveEntityRPdu/@family
properties
fixed SimulationManagementWithReliabilityFamilyPduType
source <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>

attribute RemoveEntityRPdu/@requiredReliabilityService
type xs:string
annotation
appinfo
level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)

source <xs:attribute name="requiredReliabilityService" type="xs:string">
  <xs:annotation>
    <xs:appinfo>level of reliability service used for this transaction (SISO enumeration RequiredReliabilityService
                        uid 74)
                     </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute RemoveEntityRPdu/@pad1
type xs:unsignedByte
source <xs:attribute name="pad1" type="xs:unsignedByte"/>

attribute RemoveEntityRPdu/@pad2
type xs:unsignedShort
source <xs:attribute name="pad2" type="xs:unsignedShort"/>

attribute RemoveEntityRPdu/@requestID
type xs:unsignedLong
annotation
appinfo
Request ID provides a unique identifier
source <xs:attribute name="requestID" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>Request ID provides a unique identifier</xs:appinfo>
  </xs:annotation>
</xs:attribute>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
