element ResupplyCancelPdu

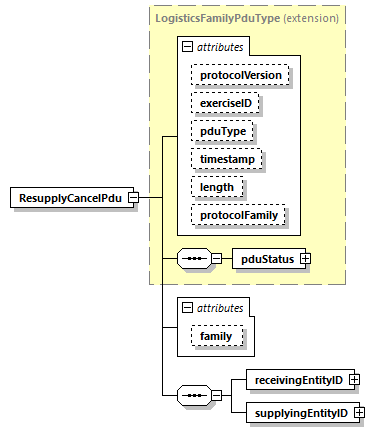

diagram
type	extension of LogisticsFamilyPduType
properties	content  complex
children	pduStatus receivingEntityID supplyingEntityID
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.LOGISTICS      family            LogisticsFamilyPduType
annotation	appinfo 5.5.8 Used to communicate the canceling of a resupply service provided through logistics             support.             <xs:attribute name="id" type="xs:integer" fixed="8"/>
source	<xs:element name="ResupplyCancelPdu">   <xs:annotation>     <xs:appinfo>5.5.8 Used to communicate the canceling of a resupply service provided through logistics             support.             <xs:attribute name="id" type="xs:integer" fixed="8"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="LogisticsFamilyPduType">         <xs:sequence>           <xs:element name="receivingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>Requesting entity, Section 7.4.5</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="supplyingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>Supplying entity, Section 7.4.5</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>         <xs:attribute name="family" fixed="LogisticsFamilyPduType"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ResupplyCancelPdu/@family

properties	fixed  LogisticsFamilyPduType
source	<xs:attribute name="family" fixed="LogisticsFamilyPduType"/>

element ResupplyCancelPdu/receivingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Requesting entity, Section 7.4.5
source	<xs:element name="receivingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Requesting entity, Section 7.4.5</xs:appinfo>   </xs:annotation> </xs:element>

element ResupplyCancelPdu/supplyingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Supplying entity, Section 7.4.5
source	<xs:element name="supplyingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Supplying entity, Section 7.4.5</xs:appinfo>   </xs:annotation> </xs:element>
