DIS_7_2012.autogenerated

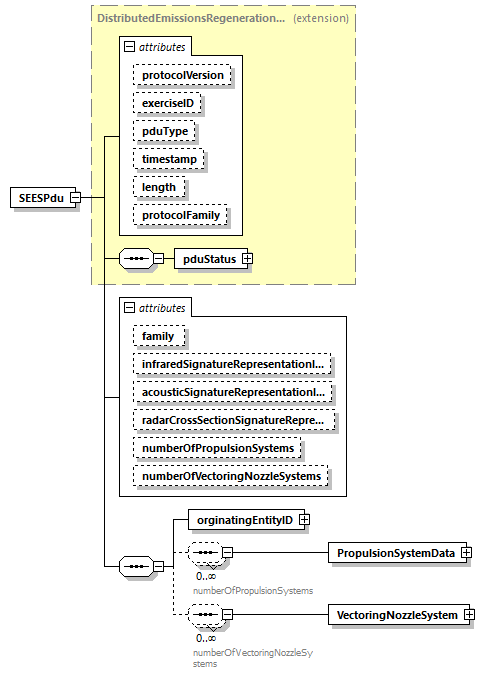

element SEESPdu

diagram

type

extension of DistributedEmissionsRegenerationFamilyPduType

properties

content

complex

children

pduStatus orginatingEntityID PropulsionSystemData VectoringNozzleSystem

used by

element

DIS

attributes

Name

Type

Use

Default

Fixed

Annotation

protocolVersion

xs:string

appinfo

The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration
DISProtocolVersion uid 3)

exerciseID

xs:unsignedByte

appinfo

Exercise ID provides a unique identifier

pduType

xs:string

appinfo

Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)

timestamp

xs:unsignedLong

appinfo

Timestamp value

length

xs:unsignedShort

appinfo

Length, in bytes, of the PDU

protocolFamily

DISProtocolFamily.DISTRIBUTED_EMISSION_REGENERATION

family

DistributedEmissionsRegenerationFamilyPduType

infraredSignatureRepresentationIndex

xs:unsignedShort

appinfo

IR Signature representation index

acousticSignatureRepresentationIndex

xs:unsignedShort

appinfo

acoustic Signature representation index

radarCrossSectionSignatureRepresentationIndex

xs:unsignedShort

appinfo

radar cross section representation index

numberOfPropulsionSystems

xs:unsignedShort

appinfo

how many propulsion systems

numberOfVectoringNozzleSystems

xs:unsignedShort

appinfo

how many vectoring nozzle systems

annotation

appinfo

7.6.6 Certain supplemental information on an entity’s physical state and emissions.
See 5.7.7 (length of list found in field numberOfPropulsionSystems numberOfVectoringNozzleSystems)
<xs:attribute name="id" type="xs:integer" fixed="30"/>

source

<xs:element name="SEESPdu">
<xs:annotation>
    <xs:appinfo>7.6.6 Certain supplemental information on an entity’s physical state and emissions.
            See 5.7.7 (length of list found in field numberOfPropulsionSystems numberOfVectoringNozzleSystems)
            <xs:attribute name="id" type="xs:integer" fixed="30"/>
    </xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="DistributedEmissionsRegenerationFamilyPduType">
        <xs:sequence>
          <xs:element name="orginatingEntityID" type="EntityIDType">
            <xs:annotation>
              <xs:appinfo>Originating entity ID provides a unique identifier</xs:appinfo>
            </xs:annotation>
          </xs:element>

          <xs:sequence minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:appinfo>Number of elements is determined by size fieldnumberOfPropulsionSystems and can be 0 or greater.
                           Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.
                        </xs:appinfo>
              <xs:documentation>numberOfPropulsionSystems</xs:documentation>
            </xs:annotation>
            <xs:element name="PropulsionSystemData" type="PropulsionSystemDataType">
              <xs:annotation>
                <xs:appinfo>variable length list of propulsion system data (length of list found in field numberOfPropulsionSystems)</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>

          <xs:sequence minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:appinfo>Number of elements is determined by size fieldnumberOfVectoringNozzleSystems and can be 0 or greater.
                           Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.
                        </xs:appinfo>
              <xs:documentation>numberOfVectoringNozzleSystems</xs:documentation>
            </xs:annotation>
            <xs:element name="VectoringNozzleSystem" type="VectoringNozzleSystemType">
              <xs:annotation>
                <xs:appinfo>variable length list of vectoring system data (length of list found in field numberOfVectoringNozzleSystems)</xs:appinfo>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:sequence>
        <xs:attribute name="family" fixed="DistributedEmissionsRegenerationFamilyPduType"/>
        <xs:attribute name="infraredSignatureRepresentationIndex" type="xs:unsignedShort">
          <xs:annotation>
            <xs:appinfo>IR Signature representation index</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="acousticSignatureRepresentationIndex" type="xs:unsignedShort">
          <xs:annotation>
            <xs:appinfo>acoustic Signature representation index</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="radarCrossSectionSignatureRepresentationIndex" type="xs:unsignedShort">
          <xs:annotation>
            <xs:appinfo>radar cross section representation index</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="numberOfPropulsionSystems" type="xs:unsignedShort">
          <xs:annotation>
            <xs:appinfo>how many propulsion systems</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="numberOfVectoringNozzleSystems" type="xs:unsignedShort">
          <xs:annotation>
            <xs:appinfo>how many vectoring nozzle systems</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>

    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute SEESPdu/@family

properties

fixed

DistributedEmissionsRegenerationFamilyPduType

source

<xs:attribute name="family" fixed="DistributedEmissionsRegenerationFamilyPduType"/>

attribute SEESPdu/@infraredSignatureRepresentationIndex

type

xs:unsignedShort

annotation

appinfo

IR Signature representation index

source

<xs:attribute name="infraredSignatureRepresentationIndex" type="xs:unsignedShort">
<xs:annotation>
<xs:appinfo>IR Signature representation index</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute SEESPdu/@acousticSignatureRepresentationIndex

type

xs:unsignedShort

annotation

appinfo

acoustic Signature representation index

source

<xs:attribute name="acousticSignatureRepresentationIndex" type="xs:unsignedShort">
<xs:annotation>
<xs:appinfo>acoustic Signature representation index</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute SEESPdu/@radarCrossSectionSignatureRepresentationIndex

type

xs:unsignedShort

annotation

appinfo

radar cross section representation index

source

<xs:attribute name="radarCrossSectionSignatureRepresentationIndex" type="xs:unsignedShort">
<xs:annotation>
<xs:appinfo>radar cross section representation index</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute SEESPdu/@numberOfPropulsionSystems

type

xs:unsignedShort

annotation

appinfo

how many propulsion systems

source

<xs:attribute name="numberOfPropulsionSystems" type="xs:unsignedShort">
<xs:annotation>
<xs:appinfo>how many propulsion systems</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute SEESPdu/@numberOfVectoringNozzleSystems

type

xs:unsignedShort

annotation

appinfo

how many vectoring nozzle systems

source

<xs:attribute name="numberOfVectoringNozzleSystems" type="xs:unsignedShort">
<xs:annotation>
<xs:appinfo>how many vectoring nozzle systems</xs:appinfo>
</xs:annotation>
</xs:attribute>

element SEESPdu/orginatingEntityID

diagram

type

EntityIDType

properties

content

complex

attributes

Name

Type

Use

Default

Fixed

Annotation

siteID

xs:unsignedShort

appinfo

Site ID values are unique identification number for originating site, often corresponding
to an internet address. Site ID values are agreed upon by individual simulations.

applicationID

xs:unsignedShort

appinfo

Application ID values are unique identification number for originating application
at a given site. Application ID values are sssigned by individual sites.

entityID

xs:unsignedShort

appinfo

Entity ID values are unique identification number for s givent entity in the originating
                     application at a given site. Entity ID values are sssigned by individual simulation
                     programs.

annotation

appinfo

Originating entity ID provides a unique identifier

source

<xs:element name="orginatingEntityID" type="EntityIDType">
<xs:annotation>
<xs:appinfo>Originating entity ID provides a unique identifier</xs:appinfo>
</xs:annotation>
</xs:element>

element SEESPdu/PropulsionSystemData

diagram

type

PropulsionSystemDataType

properties

content

complex

attributes

Name

Type

Use

Default

Fixed

Annotation

powerSetting

xs:float

appinfo

powerSetting

engineRpm

xs:float

appinfo

engine RPMs

annotation

appinfo

variable length list of propulsion system data (length of list found in field numberOfPropulsionSystems)

source

<xs:element name="PropulsionSystemData" type="PropulsionSystemDataType">
<xs:annotation>
<xs:appinfo>variable length list of propulsion system data (length of list found in field numberOfPropulsionSystems)</xs:appinfo>
</xs:annotation>
</xs:element>

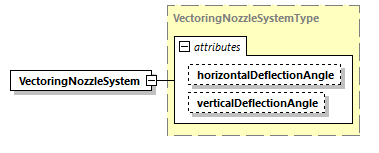

element SEESPdu/VectoringNozzleSystem

diagram

type

VectoringNozzleSystemType

properties

content

complex

attributes

Name

Type

Use

Default

Fixed

Annotation

horizontalDeflectionAngle

xs:float

appinfo

In degrees

verticalDeflectionAngle

xs:float

appinfo

In degrees

annotation

appinfo

variable length list of vectoring system data (length of list found in field numberOfVectoringNozzleSystems)

source

<xs:element name="VectoringNozzleSystem" type="VectoringNozzleSystemType">
<xs:annotation>
<xs:appinfo>variable length list of vectoring system data (length of list found in field numberOfVectoringNozzleSystems)</xs:appinfo>
</xs:annotation>
</xs:element>
