complexType SeparationVPType

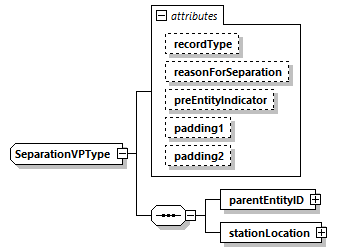

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	parentEntityID stationLocation
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   reasonForSeparation   xs:string            appinfo Reason for separation. EBV (SISO enumeration SeparationVPReasonforSeparation uid 282) preEntityIndicator   xs:string            appinfo Whether the entity existed prior to separation EBV (SISO enumeration SeparationVPPreEntityIndicator                      uid 283)                   padding1   xs:unsignedByte            appinfo padding padding2   xs:unsignedShort            appinfo padding
annotation	appinfo Physical separation of an entity from another entity. Section 6.2.94.6
source	<xs:complexType name="SeparationVPType" abstract="false">   <xs:annotation>     <xs:appinfo>Physical separation of an entity from another entity. Section 6.2.94.6</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="parentEntityID" type="EntityIDType">           <xs:annotation>             <xs:appinfo>ID of parent</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="stationLocation" type="NamedLocationIdentificationType">           <xs:annotation>             <xs:appinfo>Station separated from</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="recordType" type="xs:string">         <xs:annotation>           <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="reasonForSeparation" type="xs:string">         <xs:annotation>           <xs:appinfo>Reason for separation. EBV (SISO enumeration SeparationVPReasonforSeparation uid 282)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="preEntityIndicator" type="xs:string">         <xs:annotation>           <xs:appinfo>Whether the entity existed prior to separation EBV (SISO enumeration SeparationVPPreEntityIndicator                      uid 283)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding1" type="xs:unsignedByte">         <xs:annotation>           <xs:appinfo>padding</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding2" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>padding</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute SeparationVPType/@recordType

type	xs:string
annotation	appinfo The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)
source	<xs:attribute name="recordType" type="xs:string">   <xs:annotation>     <xs:appinfo>The identification of the Variable Parameter record. Enumeration from EBV (SISO enumeration                      VariableParameterRecordType uid 56)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SeparationVPType/@reasonForSeparation

type	xs:string
annotation	appinfo Reason for separation. EBV (SISO enumeration SeparationVPReasonforSeparation uid 282)
source	<xs:attribute name="reasonForSeparation" type="xs:string">   <xs:annotation>     <xs:appinfo>Reason for separation. EBV (SISO enumeration SeparationVPReasonforSeparation uid 282)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SeparationVPType/@preEntityIndicator

type	xs:string
annotation	appinfo Whether the entity existed prior to separation EBV (SISO enumeration SeparationVPPreEntityIndicator                      uid 283)
source	<xs:attribute name="preEntityIndicator" type="xs:string">   <xs:annotation>     <xs:appinfo>Whether the entity existed prior to separation EBV (SISO enumeration SeparationVPPreEntityIndicator                      uid 283)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SeparationVPType/@padding1

type	xs:unsignedByte
annotation	appinfo padding
source	<xs:attribute name="padding1" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SeparationVPType/@padding2

type	xs:unsignedShort
annotation	appinfo padding
source	<xs:attribute name="padding2" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

element SeparationVPType/parentEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo ID of parent
source	<xs:element name="parentEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>ID of parent</xs:appinfo>   </xs:annotation> </xs:element>

element SeparationVPType/stationLocation

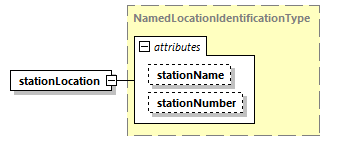

diagram
type	NamedLocationIdentificationType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation stationName   xs:string            appinfo The station name within the host at which the part entity is located. If the part                      entity is On Station, this field shall specify the representation of the part's location                      data fields. This field shall be specified by a 16-bit enumeration (SISO enumeration                      IsPartOfStationName uid 212)                   stationNumber   xs:unsignedShort            appinfo The number of the particular wing station, cargo hold etc., at which the part is attached.
annotation	appinfo Station separated from
source	<xs:element name="stationLocation" type="NamedLocationIdentificationType">   <xs:annotation>     <xs:appinfo>Station separated from</xs:appinfo>   </xs:annotation> </xs:element>
