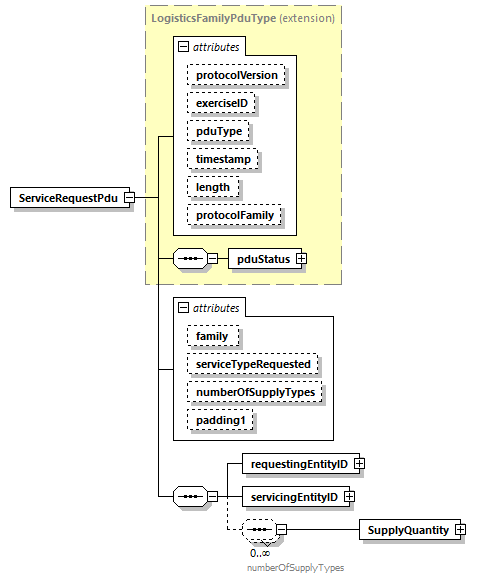

element ServiceRequestPdu

diagram
type	extension of LogisticsFamilyPduType
properties	content  complex
children	pduStatus requestingEntityID servicingEntityID SupplyQuantity
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.LOGISTICS      family            LogisticsFamilyPduType   serviceTypeRequested   xs:string            appinfo Type of service requested, Section 7.4.2 (SISO enumeration ServiceRequestServiceTypeRequested                         uid 63)                      numberOfSupplyTypes   xs:unsignedByte            appinfo How many requested, Section 7.4.2 padding1   xs:unsignedShort
annotation	appinfo 5.5.5 Communicate information associated with one entity requesting a service from             another. (length of list found in field numberOfSupplyTypes)             <xs:attribute name="id" type="xs:integer" fixed="5"/>
source	<xs:element name="ServiceRequestPdu">   <xs:annotation>     <xs:appinfo>5.5.5 Communicate information associated with one entity requesting a service from             another. (length of list found in field numberOfSupplyTypes)             <xs:attribute name="id" type="xs:integer" fixed="5"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="LogisticsFamilyPduType">         <xs:sequence>           <xs:element name="requestingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>Entity that is requesting service (see 6.2.28), Section 7.4.2</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="servicingEntityID" type="EntityIDType">             <xs:annotation>               <xs:appinfo>Entity that is providing the service (see 6.2.28), Section 7.4.2</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) ServiceRequestPdu supplies with objectlist classRef name=SupplyQuantity, type=SupplyQuantityType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfSupplyTypes and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfSupplyTypes</xs:documentation>             </xs:annotation>             <xs:element name="SupplyQuantity" type="SupplyQuantityType">               <xs:annotation>                 <xs:appinfo>(length of list found in field numberOfSupplyTypes)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="LogisticsFamilyPduType"/>         <xs:attribute name="serviceTypeRequested" type="xs:string">           <xs:annotation>             <xs:appinfo>Type of service requested, Section 7.4.2 (SISO enumeration ServiceRequestServiceTypeRequested                         uid 63)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfSupplyTypes" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>How many requested, Section 7.4.2</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding1" type="xs:unsignedShort"/>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ServiceRequestPdu/@family

properties	fixed  LogisticsFamilyPduType
source	<xs:attribute name="family" fixed="LogisticsFamilyPduType"/>

attribute ServiceRequestPdu/@serviceTypeRequested

type	xs:string
annotation	appinfo Type of service requested, Section 7.4.2 (SISO enumeration ServiceRequestServiceTypeRequested                         uid 63)
source	<xs:attribute name="serviceTypeRequested" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of service requested, Section 7.4.2 (SISO enumeration ServiceRequestServiceTypeRequested                         uid 63)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ServiceRequestPdu/@numberOfSupplyTypes

type	xs:unsignedByte
annotation	appinfo How many requested, Section 7.4.2
source	<xs:attribute name="numberOfSupplyTypes" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>How many requested, Section 7.4.2</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ServiceRequestPdu/@padding1

type	xs:unsignedShort
source	<xs:attribute name="padding1" type="xs:unsignedShort"/>

element ServiceRequestPdu/requestingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Entity that is requesting service (see 6.2.28), Section 7.4.2
source	<xs:element name="requestingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Entity that is requesting service (see 6.2.28), Section 7.4.2</xs:appinfo>   </xs:annotation> </xs:element>

element ServiceRequestPdu/servicingEntityID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo Entity that is providing the service (see 6.2.28), Section 7.4.2
source	<xs:element name="servicingEntityID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>Entity that is providing the service (see 6.2.28), Section 7.4.2</xs:appinfo>   </xs:annotation> </xs:element>

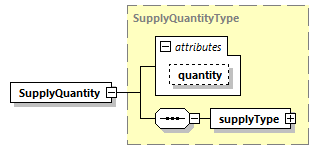

element ServiceRequestPdu/SupplyQuantity

diagram
type	SupplyQuantityType
properties	content  complex
children	supplyType
attributes	Name   Type   Use   Default   Fixed   Annotation quantity   xs:float            appinfo The number of units of a supply type.
annotation	appinfo (length of list found in field numberOfSupplyTypes)
source	<xs:element name="SupplyQuantity" type="SupplyQuantityType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfSupplyTypes)</xs:appinfo>   </xs:annotation> </xs:element>
