complexType StandardVariableSpecificationType

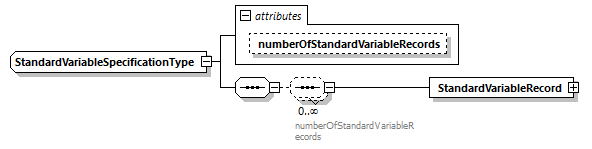

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	StandardVariableRecord
used by	element  DirectedEnergyFirePdu/StandardVariableSpecification
attributes	Name   Type   Use   Default   Fixed   Annotation numberOfStandardVariableRecords   xs:unsignedShort            appinfo Number of static variable records
annotation	appinfo Does not work, and causes failure in anything it is embedded in. Section 6.2.83 (length             of list found in field numberOfStandardVariableRecords)
source	<xs:complexType name="StandardVariableSpecificationType" abstract="false">   <xs:annotation>     <xs:appinfo>Does not work, and causes failure in anything it is embedded in. Section 6.2.83 (length             of list found in field numberOfStandardVariableRecords)          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <!--Attribute (as element) StandardVariableSpecification standardVariables with objectlist classRef name=StandardVariableRecord, type=StandardVariableRecordType-->         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>Number of elements is determined by size fieldnumberOfStandardVariableRecords and can be 0 or greater.                         Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                      </xs:appinfo>             <xs:documentation>numberOfStandardVariableRecords</xs:documentation>           </xs:annotation>           <xs:element name="StandardVariableRecord" type="StandardVariableRecordType">             <xs:annotation>               <xs:appinfo>variable length list of standard variables, The class type and length here are WRONG                            and will cause the incorrect serialization of any class in whihc it is embedded. (length                            of list found in field numberOfStandardVariableRecords)                         </xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:sequence>       <xs:attribute name="numberOfStandardVariableRecords" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Number of static variable records</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute StandardVariableSpecificationType/@numberOfStandardVariableRecords

type	xs:unsignedShort
annotation	appinfo Number of static variable records
source	<xs:attribute name="numberOfStandardVariableRecords" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Number of static variable records</xs:appinfo>   </xs:annotation> </xs:attribute>

element StandardVariableSpecificationType/StandardVariableRecord

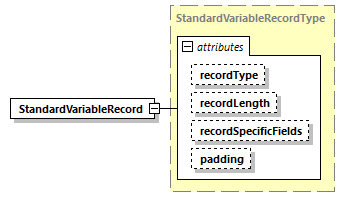

diagram
type	StandardVariableRecordType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo (SISO enumeration VariableRecordType uid 66 Variable Record Type values are defined                      by VariableRecordType enumerations)                   recordLength   xs:unsignedShort            recordSpecificFields   derived by: xs:list            appinfo (length of list found in field recordLength) padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo variable length list of standard variables, The class type and length here are WRONG                            and will cause the incorrect serialization of any class in whihc it is embedded. (length                            of list found in field numberOfStandardVariableRecords)
source	<xs:element name="StandardVariableRecord" type="StandardVariableRecordType">   <xs:annotation>     <xs:appinfo>variable length list of standard variables, The class type and length here are WRONG                            and will cause the incorrect serialization of any class in whihc it is embedded. (length                            of list found in field numberOfStandardVariableRecords)                         </xs:appinfo>   </xs:annotation> </xs:element>
