complexType StorageFuelReloadType

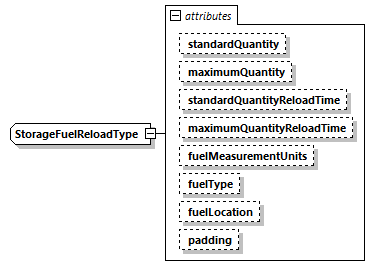

diagram DIS_7_2012.autogenerated_diagrams/DIS_7_2012.autogenerated_p550.png
type extension of rootType
properties
base rootType
abstract false
attributes
Name  Type  Use  Default  Fixed  Annotation
standardQuantity  xs:unsignedLong
appinfo
the standard quantity of this fuel type normally loaded at this station/launcher if
                     a station/launcher is specified. If the Station/Launcher field is set to zero, then
                     this is the total quantity of this fuel type that would be present in a standard reload
                     of all appli- cable stations/launchers associated with this entity.

maximumQuantity  xs:unsignedLong
appinfo
The maximum quantity of this fuel type that this sta- tion/launcher is capable of
                     holding when a station/launcher is specified. This would be the value used when a
                     maximum reload was desired to be set for this station/launcher. If the Station/launcher
                     field is set to zero, then this is the maximum quantity of this fuel type that would
                     be present on this entity at all stations/launchers that can accept this fuel type.

standardQuantityReloadTime  xs:unsignedLong
appinfo
The seconds normally required to reload the standard quantity of this fuel type at
                     this specific station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a standard quantity reload of this fuel type
                     at all applicable stations/launchers for this entity.

maximumQuantityReloadTime  xs:unsignedLong
appinfo
The seconds normally required to reload the maximum possible quantity of this fuel
                     type at this station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a maximum quantity load/reload of this fuel
                     type at all applicable stations/launchers for this entity.

fuelMeasurementUnits  xs:string
appinfo
The fuel measurement units. Enumeration (SISO enumeration FuelMeasurementUnits uid
                     328)

fuelType  xs:string
appinfo
Fuel type (SISO enumeration SupplyFuelType uid 413)
fuelLocation  xs:string
appinfo
Location of fuel as related to entity. See section 14 of EBV document (SISO enumeration
                     FuelLocation uid 329)

padding  xs:unsignedByte
appinfo
zero-filled array of padding bits for byte alignment and consistent sizing of PDU
                     data

annotation
appinfo
For each type or location of Storage Fuel, this record shall specify the type, location,
            fuel measure- ment units, reload quantity and maximum quantity for storage fuel either
            for the whole entity or a specific storage fuel location (tank). Section 6.2.85.

source <xs:complexType name="StorageFuelReloadType" abstract="false">
  <xs:annotation>
    <xs:appinfo>For each type or location of Storage Fuel, this record shall specify the type, location,
            fuel measure- ment units, reload quantity and maximum quantity for storage fuel either
            for the whole entity or a specific storage fuel location (tank). Section 6.2.85.
         </xs:appinfo>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="rootType">
      <xs:attribute name="standardQuantity" type="xs:unsignedLong">
        <xs:annotation>
          <xs:appinfo>the standard quantity of this fuel type normally loaded at this station/launcher if
                     a station/launcher is specified. If the Station/Launcher field is set to zero, then
                     this is the total quantity of this fuel type that would be present in a standard reload
                     of all appli- cable stations/launchers associated with this entity.
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="maximumQuantity" type="xs:unsignedLong">
        <xs:annotation>
          <xs:appinfo>The maximum quantity of this fuel type that this sta- tion/launcher is capable of
                     holding when a station/launcher is specified. This would be the value used when a
                     maximum reload was desired to be set for this station/launcher. If the Station/launcher
                     field is set to zero, then this is the maximum quantity of this fuel type that would
                     be present on this entity at all stations/launchers that can accept this fuel type.
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="standardQuantityReloadTime" type="xs:unsignedLong">
        <xs:annotation>
          <xs:appinfo>The seconds normally required to reload the standard quantity of this fuel type at
                     this specific station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a standard quantity reload of this fuel type
                     at all applicable stations/launchers for this entity.
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="maximumQuantityReloadTime" type="xs:unsignedLong">
        <xs:annotation>
          <xs:appinfo>The seconds normally required to reload the maximum possible quantity of this fuel
                     type at this station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a maximum quantity load/reload of this fuel
                     type at all applicable stations/launchers for this entity.
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="fuelMeasurementUnits" type="xs:string">
        <xs:annotation>
          <xs:appinfo>The fuel measurement units. Enumeration (SISO enumeration FuelMeasurementUnits uid
                     328)
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="fuelType" type="xs:string">
        <xs:annotation>
          <xs:appinfo>Fuel type (SISO enumeration SupplyFuelType uid 413)</xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="fuelLocation" type="xs:string">
        <xs:annotation>
          <xs:appinfo>Location of fuel as related to entity. See section 14 of EBV document (SISO enumeration
                     FuelLocation uid 329)
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="padding" type="xs:unsignedByte">
        <xs:annotation>
          <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU
                     data
                  </xs:appinfo>
        </xs:annotation>
      </xs:attribute>
    </xs:extension>
  </xs:complexContent>
  <!--abstract='false' base='rootType'-->
</xs:complexType>

attribute StorageFuelReloadType/@standardQuantity
type xs:unsignedLong
annotation
appinfo
the standard quantity of this fuel type normally loaded at this station/launcher if
                     a station/launcher is specified. If the Station/Launcher field is set to zero, then
                     this is the total quantity of this fuel type that would be present in a standard reload
                     of all appli- cable stations/launchers associated with this entity.

source <xs:attribute name="standardQuantity" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>the standard quantity of this fuel type normally loaded at this station/launcher if
                     a station/launcher is specified. If the Station/Launcher field is set to zero, then
                     this is the total quantity of this fuel type that would be present in a standard reload
                     of all appli- cable stations/launchers associated with this entity.
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@maximumQuantity
type xs:unsignedLong
annotation
appinfo
The maximum quantity of this fuel type that this sta- tion/launcher is capable of
                     holding when a station/launcher is specified. This would be the value used when a
                     maximum reload was desired to be set for this station/launcher. If the Station/launcher
                     field is set to zero, then this is the maximum quantity of this fuel type that would
                     be present on this entity at all stations/launchers that can accept this fuel type.

source <xs:attribute name="maximumQuantity" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>The maximum quantity of this fuel type that this sta- tion/launcher is capable of
                     holding when a station/launcher is specified. This would be the value used when a
                     maximum reload was desired to be set for this station/launcher. If the Station/launcher
                     field is set to zero, then this is the maximum quantity of this fuel type that would
                     be present on this entity at all stations/launchers that can accept this fuel type.
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@standardQuantityReloadTime
type xs:unsignedLong
annotation
appinfo
The seconds normally required to reload the standard quantity of this fuel type at
                     this specific station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a standard quantity reload of this fuel type
                     at all applicable stations/launchers for this entity.

source <xs:attribute name="standardQuantityReloadTime" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>The seconds normally required to reload the standard quantity of this fuel type at
                     this specific station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a standard quantity reload of this fuel type
                     at all applicable stations/launchers for this entity.
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@maximumQuantityReloadTime
type xs:unsignedLong
annotation
appinfo
The seconds normally required to reload the maximum possible quantity of this fuel
                     type at this station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a maximum quantity load/reload of this fuel
                     type at all applicable stations/launchers for this entity.

source <xs:attribute name="maximumQuantityReloadTime" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>The seconds normally required to reload the maximum possible quantity of this fuel
                     type at this station/launcher. When the Station/Launcher field is set to zero, this
                     shall be the time it takes to perform a maximum quantity load/reload of this fuel
                     type at all applicable stations/launchers for this entity.
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@fuelMeasurementUnits
type xs:string
annotation
appinfo
The fuel measurement units. Enumeration (SISO enumeration FuelMeasurementUnits uid
                     328)

source <xs:attribute name="fuelMeasurementUnits" type="xs:string">
  <xs:annotation>
    <xs:appinfo>The fuel measurement units. Enumeration (SISO enumeration FuelMeasurementUnits uid
                     328)
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@fuelType
type xs:string
annotation
appinfo
Fuel type (SISO enumeration SupplyFuelType uid 413)
source <xs:attribute name="fuelType" type="xs:string">
  <xs:annotation>
    <xs:appinfo>Fuel type (SISO enumeration SupplyFuelType uid 413)</xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@fuelLocation
type xs:string
annotation
appinfo
Location of fuel as related to entity. See section 14 of EBV document (SISO enumeration
                     FuelLocation uid 329)

source <xs:attribute name="fuelLocation" type="xs:string">
  <xs:annotation>
    <xs:appinfo>Location of fuel as related to entity. See section 14 of EBV document (SISO enumeration
                     FuelLocation uid 329)
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StorageFuelReloadType/@padding
type xs:unsignedByte
annotation
appinfo
zero-filled array of padding bits for byte alignment and consistent sizing of PDU
                     data

source <xs:attribute name="padding" type="xs:unsignedByte">
  <xs:annotation>
    <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU
                     data
                  </xs:appinfo>
  </xs:annotation>
</xs:attribute>
