complexType SystemIdentifierType

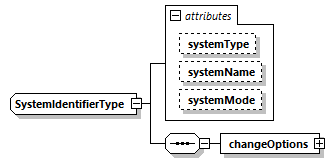

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	changeOptions
used by	element  IFFPdu/systemID
attributes	Name   Type   Use   Default   Fixed   Annotation systemType   xs:string            appinfo general type of emitting system, an enumeration (SISO enumeration IFFSystemType uid                      82)                   systemName   xs:string            appinfo named type of system, an enumeration (SISO enumeration IFFSystemName uid 83) systemMode   xs:string            appinfo mode of operation for the system, an enumeration (SISO enumeration IFFSystemMode uid                      84)
annotation	appinfo The ID of the IFF emitting system. Section 6.2.87
source	<xs:complexType name="SystemIdentifierType" abstract="false">   <xs:annotation>     <xs:appinfo>The ID of the IFF emitting system. Section 6.2.87</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="changeOptions" type="ChangeOptionsType">           <xs:annotation>             <xs:appinfo>status of this PDU, see section 6.2.15</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="systemType" type="xs:string">         <xs:annotation>           <xs:appinfo>general type of emitting system, an enumeration (SISO enumeration IFFSystemType uid                      82)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="systemName" type="xs:string">         <xs:annotation>           <xs:appinfo>named type of system, an enumeration (SISO enumeration IFFSystemName uid 83)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="systemMode" type="xs:string">         <xs:annotation>           <xs:appinfo>mode of operation for the system, an enumeration (SISO enumeration IFFSystemMode uid                      84)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute SystemIdentifierType/@systemType

type	xs:string
annotation	appinfo general type of emitting system, an enumeration (SISO enumeration IFFSystemType uid                      82)
source	<xs:attribute name="systemType" type="xs:string">   <xs:annotation>     <xs:appinfo>general type of emitting system, an enumeration (SISO enumeration IFFSystemType uid                      82)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SystemIdentifierType/@systemName

type	xs:string
annotation	appinfo named type of system, an enumeration (SISO enumeration IFFSystemName uid 83)
source	<xs:attribute name="systemName" type="xs:string">   <xs:annotation>     <xs:appinfo>named type of system, an enumeration (SISO enumeration IFFSystemName uid 83)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SystemIdentifierType/@systemMode

type	xs:string
annotation	appinfo mode of operation for the system, an enumeration (SISO enumeration IFFSystemMode uid                      84)
source	<xs:attribute name="systemMode" type="xs:string">   <xs:annotation>     <xs:appinfo>mode of operation for the system, an enumeration (SISO enumeration IFFSystemMode uid                      84)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

element SystemIdentifierType/changeOptions

diagram
type	ChangeOptionsType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:unsignedByte
annotation	appinfo status of this PDU, see section 6.2.15
source	<xs:element name="changeOptions" type="ChangeOptionsType">   <xs:annotation>     <xs:appinfo>status of this PDU, see section 6.2.15</xs:appinfo>   </xs:annotation> </xs:element>
