complexType UnattachedIdentifierType

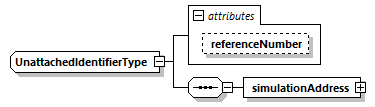

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo Reference number
annotation	appinfo The unique designation of one or more unattached radios in an event or exercise Section             6.2.91
source	<xs:complexType name="UnattachedIdentifierType" abstract="false">   <xs:annotation>     <xs:appinfo>The unique designation of one or more unattached radios in an event or exercise Section             6.2.91          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="simulationAddress" type="SimulationAddressType">           <xs:annotation>             <xs:appinfo>See 6.2.79</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="referenceNumber" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Reference number</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute UnattachedIdentifierType/@referenceNumber

type	xs:unsignedShort
annotation	appinfo Reference number
source	<xs:attribute name="referenceNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Reference number</xs:appinfo>   </xs:annotation> </xs:attribute>

element UnattachedIdentifierType/simulationAddress

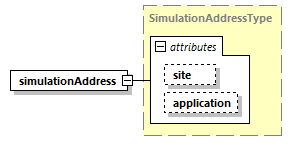

diagram
type	SimulationAddressType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation site   xs:unsignedShort            appinfo A site is defined as a facility, installation, organizational unit or a geographic                      location that has one or more simulation applications capable of participating in                      a distributed event.                   application   xs:unsignedShort            appinfo An application is defined as a software program that is used to generate and process                      distributed simulation data including live, virtual and constructive data.
annotation	appinfo See 6.2.79
source	<xs:element name="simulationAddress" type="SimulationAddressType">   <xs:annotation>     <xs:appinfo>See 6.2.79</xs:appinfo>   </xs:annotation> </xs:element>
