complexType VariableTransmitterParametersType

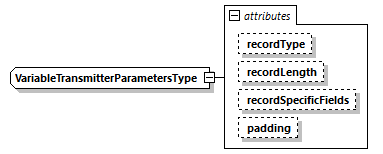

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  TransmitterPdu/VariableTransmitterParameters
attributes	Name   Type   Use   Default   Fixed   Annotation recordType   xs:string            appinfo Type of VTP (SISO enumeration VariableRecordType uid 66 Variable Record Type values                      are defined by VariableRecordType enumerations)                   recordLength   xs:unsignedShort            appinfo Length, in bytes recordSpecificFields               padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo Relates to radios. Section 6.2.95
source	<xs:complexType name="VariableTransmitterParametersType" abstract="false">   <xs:annotation>     <xs:appinfo>Relates to radios. Section 6.2.95</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="recordType" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of VTP (SISO enumeration VariableRecordType uid 66 Variable Record Type values                      are defined by VariableRecordType enumerations)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="recordLength" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>Length, in bytes</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="recordSpecificFields"/>       <xs:attribute name="padding" type="xs:unsignedInt">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute VariableTransmitterParametersType/@recordType

type	xs:string
annotation	appinfo Type of VTP (SISO enumeration VariableRecordType uid 66 Variable Record Type values                      are defined by VariableRecordType enumerations)
source	<xs:attribute name="recordType" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of VTP (SISO enumeration VariableRecordType uid 66 Variable Record Type values                      are defined by VariableRecordType enumerations)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableTransmitterParametersType/@recordLength

type	xs:unsignedShort
annotation	appinfo Length, in bytes
source	<xs:attribute name="recordLength" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Length, in bytes</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableTransmitterParametersType/@recordSpecificFields

source

<xs:attribute name="recordSpecificFields"/>

attribute VariableTransmitterParametersType/@padding

type	xs:unsignedInt
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedInt">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>
