element AVCL

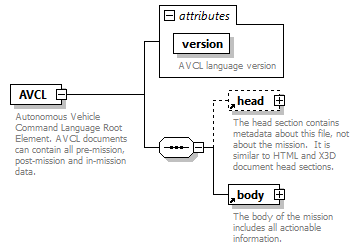

diagram
properties	content  complex
children	head body
attributes	Name   Type   Use   Default   Fixed   Annotation version   avclVersion   required         documentation AVCL language version
annotation	documentation Autonomous Vehicle Command Language Root Element. AVCL documents can contain all pre-mission, post-mission and in-mission data.
source	<xsd:element name="AVCL">   <xsd:annotation>     <xsd:documentation>Autonomous Vehicle Command Language Root Element. AVCL documents can contain all pre-mission, post-mission and in-mission data.</xsd:documentation>   </xsd:annotation>   <xsd:complexType>     <xsd:sequence>       <xsd:element ref="head" minOccurs="0">         <xsd:annotation>           <xsd:documentation>The head section contains metadata about this file, not about the mission.  It is similar to HTML and X3D document head sections.</xsd:documentation>         </xsd:annotation>       </xsd:element>       <xsd:element ref="body">         <xsd:annotation>           <xsd:documentation>The body of the mission includes all actionable information.</xsd:documentation>         </xsd:annotation>       </xsd:element>     </xsd:sequence>     <xsd:attribute name="version" type="avclVersion" use="required">       <xsd:annotation>         <xsd:documentation>AVCL language version</xsd:documentation>       </xsd:annotation>     </xsd:attribute>   </xsd:complexType> </xsd:element>

attribute AVCL/@version

type	avclVersion
properties	use  required
facets	Kind  Value  Annotation enumeration  3.1 appinfo Support for Dimensions of Autonomous Decision Making (DADM) Risk Element (RE) constraints, July 2022. enumeration  3.0 appinfo Support for Mission Execution Ontology (MEO) for Ethical Control of Unmanned Systems, October 2019. enumeration  2.1 appinfo Improved version of AVCL implemented on 1 November 2012. enumeration  2.0 appinfo Improved version of AVCL implemented on 12 January 2009.
annotation	documentation AVCL language version
source	<xsd:attribute name="version" type="avclVersion" use="required">   <xsd:annotation>     <xsd:documentation>AVCL language version</xsd:documentation>   </xsd:annotation> </xsd:attribute>
