complexType reportingCriteriaElementType

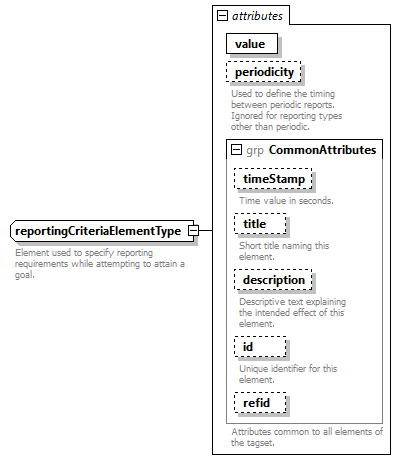

diagram
used by	element  ReportingCriteria
attributes	Name   Type   Use   Default   Fixed   Annotation value   reportingCriteriaType   required         periodicity   positiveScalarType            documentation Used to define the timing between periodic reports.  Ignored for reporting types other than periodic. timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Element used to specify reporting requirements while attempting to attain a goal.
source	<xsd:complexType name="reportingCriteriaElementType">   <xsd:annotation>     <xsd:documentation>Element used to specify reporting requirements while attempting to attain a goal.</xsd:documentation>   </xsd:annotation>   <xsd:attribute name="value" type="reportingCriteriaType" use="required"/>   <xsd:attribute name="periodicity" type="positiveScalarType">     <xsd:annotation>       <xsd:documentation>Used to define the timing between periodic reports.  Ignored for reporting types other than periodic.</xsd:documentation>     </xsd:annotation>   </xsd:attribute>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

attribute reportingCriteriaElementType/@value

type	reportingCriteriaType
properties	use  required
facets	Kind  Value  Annotation enumeration  never documentation No reports are to be made concerning the progress of this goal. enumeration  periodic documentation Reports are to be made at specific periods until this goal is complete. enumeration  statusChanged documentation A report is to be made whenever an action effecting this goal occurs (e.g. new contact). enumeration  onCommence documentation A report is to be made whenever the vehicle commences actions to achieve this goal. enumeration  onComplete documentation A report is to be made whenever the vehicle achieves the goal or checks off station.
source	<xsd:attribute name="value" type="reportingCriteriaType" use="required"/>

attribute reportingCriteriaElementType/@periodicity

type	positiveScalarType
facets	Kind  Value  Annotation minExclusive  0
annotation	documentation Used to define the timing between periodic reports.  Ignored for reporting types other than periodic.
source	<xsd:attribute name="periodicity" type="positiveScalarType">   <xsd:annotation>     <xsd:documentation>Used to define the timing between periodic reports.  Ignored for reporting types other than periodic.</xsd:documentation>   </xsd:annotation> </xsd:attribute>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
