complexType DistributedEmissionsRegenerationFamilyPduType

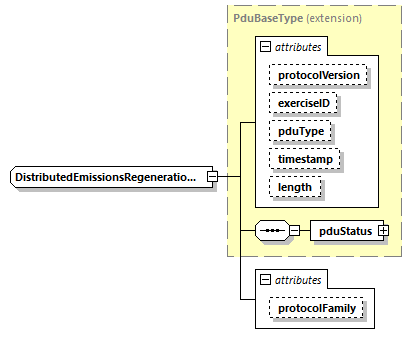

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus
used by	elements  DesignatorPdu ElectromagneticEmissionPdu IdentificationFriendOrFoePdu IFFLayer2Pdu IFFPdu SEESPdu SupplementalEmissionEntityStatePdu UnderwaterAcousticPdu complexTypes  ElectronicEmitterType EmitterBeamType UABeamType UAEmitterType
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.DISTRIBUTED_EMISSION_REGENERATION
annotation	appinfo Section 5.3.7. Electronic Emissions. Abstract superclass for distributed emissions             PDU             <xs:attribute name="id" type="xs:integer" fixed="6"/>
source	<xs:complexType name="DistributedEmissionsRegenerationFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>Section 5.3.7. Electronic Emissions. Abstract superclass for distributed emissions             PDU             <xs:attribute name="id" type="xs:integer" fixed="6"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:attribute name="protocolFamily" default="DISProtocolFamily.DISTRIBUTED_EMISSION_REGENERATION"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute DistributedEmissionsRegenerationFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.DISTRIBUTED_EMISSION_REGENERATION
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.DISTRIBUTED_EMISSION_REGENERATION"/>
