complexType EmitterBeamType

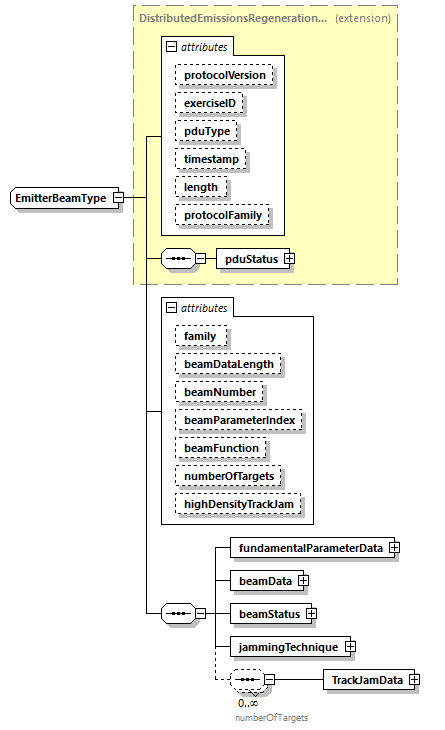

diagram
type	extension of DistributedEmissionsRegenerationFamilyPduType
properties	base  DistributedEmissionsRegenerationFamilyPduType
children	pduStatus fundamentalParameterData beamData beamStatus jammingTechnique TrackJamData
used by	element  ElectronicEmitterType/EmitterBeam
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.DISTRIBUTED_EMISSION_REGENERATION      family            DistributedEmissionsRegenerationFamilyPduType   beamDataLength   xs:unsignedByte            beamNumber   xs:unsignedByte            beamParameterIndex   xs:unsignedShort            beamFunction   xs:string            appinfo (SISO enumeration ElectromagneticEmissionBeamFunction uid 78) numberOfTargets   xs:unsignedByte            highDensityTrackJam   xs:string            appinfo (SISO enumeration HighDensityTrackJam uid 79)
annotation	appinfo Emitter beams focused emissions from an electromagnetic or active acoustic transmitter.             The beam is defined by the main lobe of the antenna pattern. (length of list found             in field numberOfTargets)
source	<xs:complexType name="EmitterBeamType">   <xs:annotation>     <xs:appinfo>Emitter beams focused emissions from an electromagnetic or active acoustic transmitter.             The beam is defined by the main lobe of the antenna pattern. (length of list found             in field numberOfTargets)          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="DistributedEmissionsRegenerationFamilyPduType">       <xs:sequence>         <xs:element name="fundamentalParameterData" type="EEFundamentalParameterDataType"/>         <xs:element name="beamData" type="BeamDataType"/>         <xs:element name="beamStatus" type="BeamStatusType"/>         <xs:element name="jammingTechnique" type="JammingTechniqueType"/>         <!--Attribute (as element) EmitterBeam trackJamData with objectlist classRef name=TrackJamData, type=TrackJamDataType-->         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>Number of elements is determined by size fieldnumberOfTargets and can be 0 or greater.                         Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                      </xs:appinfo>             <xs:documentation>numberOfTargets</xs:documentation>           </xs:annotation>           <xs:element name="TrackJamData" type="TrackJamDataType">             <xs:annotation>               <xs:appinfo>(length of list found in field numberOfTargets)</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:sequence>       <xs:attribute name="family" fixed="DistributedEmissionsRegenerationFamilyPduType"/>       <xs:attribute name="beamDataLength" type="xs:unsignedByte"/>       <xs:attribute name="beamNumber" type="xs:unsignedByte"/>       <xs:attribute name="beamParameterIndex" type="xs:unsignedShort"/>       <xs:attribute name="beamFunction" type="xs:string">         <xs:annotation>           <xs:appinfo>(SISO enumeration ElectromagneticEmissionBeamFunction uid 78)</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="numberOfTargets" type="xs:unsignedByte"/>       <xs:attribute name="highDensityTrackJam" type="xs:string">         <xs:annotation>           <xs:appinfo>(SISO enumeration HighDensityTrackJam uid 79)</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--debug: another class, providing Pdu types--> </xs:complexType>

attribute EmitterBeamType/@family

properties	fixed  DistributedEmissionsRegenerationFamilyPduType
source	<xs:attribute name="family" fixed="DistributedEmissionsRegenerationFamilyPduType"/>

attribute EmitterBeamType/@beamDataLength

type	xs:unsignedByte
source	<xs:attribute name="beamDataLength" type="xs:unsignedByte"/>

attribute EmitterBeamType/@beamNumber

type	xs:unsignedByte
source	<xs:attribute name="beamNumber" type="xs:unsignedByte"/>

attribute EmitterBeamType/@beamParameterIndex

type	xs:unsignedShort
source	<xs:attribute name="beamParameterIndex" type="xs:unsignedShort"/>

attribute EmitterBeamType/@beamFunction

type	xs:string
annotation	appinfo (SISO enumeration ElectromagneticEmissionBeamFunction uid 78)
source	<xs:attribute name="beamFunction" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration ElectromagneticEmissionBeamFunction uid 78)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EmitterBeamType/@numberOfTargets

type	xs:unsignedByte
source	<xs:attribute name="numberOfTargets" type="xs:unsignedByte"/>

attribute EmitterBeamType/@highDensityTrackJam

type	xs:string
annotation	appinfo (SISO enumeration HighDensityTrackJam uid 79)
source	<xs:attribute name="highDensityTrackJam" type="xs:string">   <xs:annotation>     <xs:appinfo>(SISO enumeration HighDensityTrackJam uid 79)</xs:appinfo>   </xs:annotation> </xs:attribute>

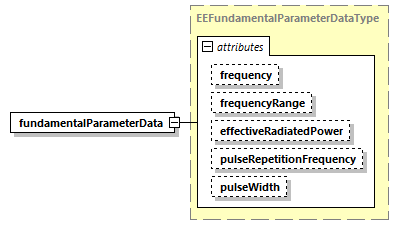

element EmitterBeamType/fundamentalParameterData

diagram
type	EEFundamentalParameterDataType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation frequency   xs:float            appinfo center frequency of the emission in hertz. frequencyRange   xs:float            appinfo Bandwidth of the frequencies corresponding to the fequency field. effectiveRadiatedPower   xs:float            appinfo Effective radiated power for the emission in DdBm. For a radar noise jammer, indicates                      the peak of the transmitted power.                   pulseRepetitionFrequency   xs:float            appinfo Average repetition frequency of the emission in hertz. pulseWidth   xs:float            appinfo Average pulse width of the emission in microseconds.
source	<xs:element name="fundamentalParameterData" type="EEFundamentalParameterDataType"/>

element EmitterBeamType/beamData

diagram
type	BeamDataType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation beamAzimuthCenter   xs:float            appinfo Specifies the beam azimuth an elevation centers and corresponding half-angles to describe                      the scan volume                   beamAzimuthSweep   xs:float            appinfo Specifies the beam azimuth sweep to determine scan volume beamElevationCenter   xs:float            appinfo Specifies the beam elevation center to determine scan volume beamElevationSweep   xs:float            appinfo Specifies the beam elevation sweep to determine scan volume beamSweepSync   xs:float            appinfo allows receiver to synchronize its regenerated scan pattern to that of the emmitter.                      Specifies the percentage of time a scan is through its pattern from its origion.
source	<xs:element name="beamData" type="BeamDataType"/>

element EmitterBeamType/beamStatus

diagram
type	BeamStatusType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation beamState   xs:string            appinfo First bit zero means beam is active, first bit = 1 means deactivated. The rest is                      padding. (SISO enumeration BeamStatusBeamState 318)
source	<xs:element name="beamStatus" type="BeamStatusType"/>

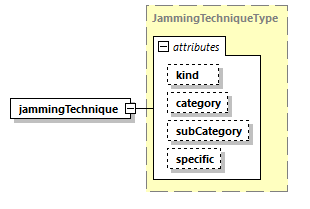

element EmitterBeamType/jammingTechnique

diagram
type	JammingTechniqueType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation kind   xs:unsignedByte            category   xs:unsignedByte            subCategory   xs:unsignedByte            specific   xs:unsignedByte
source	<xs:element name="jammingTechnique" type="JammingTechniqueType"/>

element EmitterBeamType/TrackJamData

diagram
type	TrackJamDataType
properties	content  complex
children	entityID
attributes	Name   Type   Use   Default   Fixed   Annotation emitterNumber   xs:unsignedByte            appinfo Emitter system associated with the entity beamNumber   xs:unsignedByte            appinfo Beam associated with the entity
annotation	appinfo (length of list found in field numberOfTargets)
source	<xs:element name="TrackJamData" type="TrackJamDataType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfTargets)</xs:appinfo>   </xs:annotation> </xs:element>
