complexType EEFundamentalParameterDataType

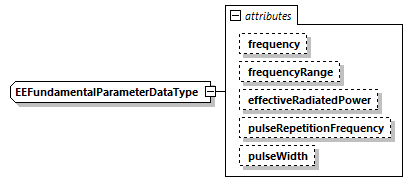

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	element  EmitterBeamType/fundamentalParameterData
attributes	Name   Type   Use   Default   Fixed   Annotation frequency   xs:float            appinfo center frequency of the emission in hertz. frequencyRange   xs:float            appinfo Bandwidth of the frequencies corresponding to the fequency field. effectiveRadiatedPower   xs:float            appinfo Effective radiated power for the emission in DdBm. For a radar noise jammer, indicates                      the peak of the transmitted power.                   pulseRepetitionFrequency   xs:float            appinfo Average repetition frequency of the emission in hertz. pulseWidth   xs:float            appinfo Average pulse width of the emission in microseconds.
annotation	appinfo Contains electromagnetic emmission regeneration parameters that are variable throught             a scenario. Section 6.2.22.
source	<xs:complexType name="EEFundamentalParameterDataType" abstract="false">   <xs:annotation>     <xs:appinfo>Contains electromagnetic emmission regeneration parameters that are variable throught             a scenario. Section 6.2.22.          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="frequency" type="xs:float">         <xs:annotation>           <xs:appinfo>center frequency of the emission in hertz.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="frequencyRange" type="xs:float">         <xs:annotation>           <xs:appinfo>Bandwidth of the frequencies corresponding to the fequency field.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="effectiveRadiatedPower" type="xs:float">         <xs:annotation>           <xs:appinfo>Effective radiated power for the emission in DdBm. For a radar noise jammer, indicates                      the peak of the transmitted power.                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="pulseRepetitionFrequency" type="xs:float">         <xs:annotation>           <xs:appinfo>Average repetition frequency of the emission in hertz.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="pulseWidth" type="xs:float">         <xs:annotation>           <xs:appinfo>Average pulse width of the emission in microseconds.</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute EEFundamentalParameterDataType/@frequency

type	xs:float
annotation	appinfo center frequency of the emission in hertz.
source	<xs:attribute name="frequency" type="xs:float">   <xs:annotation>     <xs:appinfo>center frequency of the emission in hertz.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EEFundamentalParameterDataType/@frequencyRange

type	xs:float
annotation	appinfo Bandwidth of the frequencies corresponding to the fequency field.
source	<xs:attribute name="frequencyRange" type="xs:float">   <xs:annotation>     <xs:appinfo>Bandwidth of the frequencies corresponding to the fequency field.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EEFundamentalParameterDataType/@effectiveRadiatedPower

type	xs:float
annotation	appinfo Effective radiated power for the emission in DdBm. For a radar noise jammer, indicates                      the peak of the transmitted power.
source	<xs:attribute name="effectiveRadiatedPower" type="xs:float">   <xs:annotation>     <xs:appinfo>Effective radiated power for the emission in DdBm. For a radar noise jammer, indicates                      the peak of the transmitted power.                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EEFundamentalParameterDataType/@pulseRepetitionFrequency

type	xs:float
annotation	appinfo Average repetition frequency of the emission in hertz.
source	<xs:attribute name="pulseRepetitionFrequency" type="xs:float">   <xs:annotation>     <xs:appinfo>Average repetition frequency of the emission in hertz.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute EEFundamentalParameterDataType/@pulseWidth

type	xs:float
annotation	appinfo Average pulse width of the emission in microseconds.
source	<xs:attribute name="pulseWidth" type="xs:float">   <xs:annotation>     <xs:appinfo>Average pulse width of the emission in microseconds.</xs:appinfo>   </xs:annotation> </xs:attribute>
