element GriddedDataPdu

diagram
type	extension of SyntheticEnvironmentFamilyPduType
properties	content  complex
children	pduStatus environmentalSimulationApplicationID environmentType orientation sampleTime GridAxisDescriptor GridData
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SYNTHETIC_ENVIRONMENT      family            SyntheticEnvironmentFamilyPduType   fieldNumber   xs:unsignedShort            appinfo unique identifier for each piece of environmental data pduNumber   xs:unsignedShort            appinfo sequence number for the total set of PDUS used to transmit the data pduTotal   xs:unsignedShort            appinfo Total number of PDUS used to transmit the data coordinateSystem   xs:string            appinfo coordinate system of the grid (SISO enumeration GriddedDataCoordinateSystem uid 244) numberOfGridAxes   xs:unsignedByte            appinfo number of grid axes for the environmental data constantGrid   xs:string            appinfo are domain grid axes identidal to those of the priveious domain update? (SISO enumeration                         GriddedDataConstantGrid uid 245)                      totalValues   xs:unsignedLong            appinfo total number of all data values for all pdus for an environmental sample vectorDimension   xs:unsignedByte            appinfo total number of data values at each grid point. padding1   xs:unsignedByte            appinfo padding padding2   xs:unsignedShort            appinfo padding
annotation	appinfo 7.10.3 Used to communicate information about global, spatially varying environmental             effects. (length of list found in field numberOfGridAxes numberOfGridAxes)             <xs:attribute name="id" type="xs:integer" fixed="42"/>
source	<xs:element name="GriddedDataPdu">   <xs:annotation>     <xs:appinfo>7.10.3 Used to communicate information about global, spatially varying environmental             effects. (length of list found in field numberOfGridAxes numberOfGridAxes)             <xs:attribute name="id" type="xs:integer" fixed="42"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SyntheticEnvironmentFamilyPduType">         <xs:sequence>           <xs:element name="environmentalSimulationApplicationID" type="SimulationIdentifierType">             <xs:annotation>               <xs:appinfo>environmental simulation application ID provides a unique identifier</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="environmentType" type="EntityTypeType">             <xs:annotation>               <xs:appinfo>type of environment</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="orientation" type="EulerAnglesType">             <xs:annotation>               <xs:appinfo>orientation of the data grid</xs:appinfo>             </xs:annotation>           </xs:element>           <xs:element name="sampleTime" type="ClockTimeType">             <xs:annotation>               <xs:appinfo>valid time of the enviormental data sample, 64-bit unsigned int</xs:appinfo>             </xs:annotation>           </xs:element>           <!--Attribute (as element) GriddedDataPdu gridAxisDescriptors with objectlist classRef name=GridAxisDescriptor, type=GridAxisDescriptorType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfGridAxes and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfGridAxes</xs:documentation>             </xs:annotation>             <xs:element name="GridAxisDescriptor" type="GridAxisDescriptorType">               <xs:annotation>                 <xs:appinfo>(length of list found in field numberOfGridAxes)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>           <!--Attribute (as element) GriddedDataPdu gridDataRecords with objectlist classRef name=GridData, type=GridDataType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfGridAxes and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfGridAxes</xs:documentation>             </xs:annotation>             <xs:element name="GridData" type="GridDataType">               <xs:annotation>                 <xs:appinfo>(length of list found in field numberOfGridAxes)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>         <xs:attribute name="fieldNumber" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>unique identifier for each piece of environmental data</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pduNumber" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>sequence number for the total set of PDUS used to transmit the data</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="pduTotal" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>Total number of PDUS used to transmit the data</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="coordinateSystem" type="xs:string">           <xs:annotation>             <xs:appinfo>coordinate system of the grid (SISO enumeration GriddedDataCoordinateSystem uid 244)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfGridAxes" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>number of grid axes for the environmental data</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="constantGrid" type="xs:string">           <xs:annotation>             <xs:appinfo>are domain grid axes identidal to those of the priveious domain update? (SISO enumeration                         GriddedDataConstantGrid uid 245)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="totalValues" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>total number of all data values for all pdus for an environmental sample</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="vectorDimension" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>total number of data values at each grid point.</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding1" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>padding</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding2" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>padding</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute GriddedDataPdu/@family

properties	fixed  SyntheticEnvironmentFamilyPduType
source	<xs:attribute name="family" fixed="SyntheticEnvironmentFamilyPduType"/>

attribute GriddedDataPdu/@fieldNumber

type	xs:unsignedShort
annotation	appinfo unique identifier for each piece of environmental data
source	<xs:attribute name="fieldNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>unique identifier for each piece of environmental data</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@pduNumber

type	xs:unsignedShort
annotation	appinfo sequence number for the total set of PDUS used to transmit the data
source	<xs:attribute name="pduNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>sequence number for the total set of PDUS used to transmit the data</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@pduTotal

type	xs:unsignedShort
annotation	appinfo Total number of PDUS used to transmit the data
source	<xs:attribute name="pduTotal" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>Total number of PDUS used to transmit the data</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@coordinateSystem

type	xs:string
annotation	appinfo coordinate system of the grid (SISO enumeration GriddedDataCoordinateSystem uid 244)
source	<xs:attribute name="coordinateSystem" type="xs:string">   <xs:annotation>     <xs:appinfo>coordinate system of the grid (SISO enumeration GriddedDataCoordinateSystem uid 244)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@numberOfGridAxes

type	xs:unsignedByte
annotation	appinfo number of grid axes for the environmental data
source	<xs:attribute name="numberOfGridAxes" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>number of grid axes for the environmental data</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@constantGrid

type	xs:string
annotation	appinfo are domain grid axes identidal to those of the priveious domain update? (SISO enumeration                         GriddedDataConstantGrid uid 245)
source	<xs:attribute name="constantGrid" type="xs:string">   <xs:annotation>     <xs:appinfo>are domain grid axes identidal to those of the priveious domain update? (SISO enumeration                         GriddedDataConstantGrid uid 245)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@totalValues

type	xs:unsignedLong
annotation	appinfo total number of all data values for all pdus for an environmental sample
source	<xs:attribute name="totalValues" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>total number of all data values for all pdus for an environmental sample</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@vectorDimension

type	xs:unsignedByte
annotation	appinfo total number of data values at each grid point.
source	<xs:attribute name="vectorDimension" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>total number of data values at each grid point.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@padding1

type	xs:unsignedByte
annotation	appinfo padding
source	<xs:attribute name="padding1" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute GriddedDataPdu/@padding2

type	xs:unsignedShort
annotation	appinfo padding
source	<xs:attribute name="padding2" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>padding</xs:appinfo>   </xs:annotation> </xs:attribute>

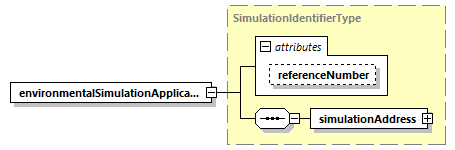

element GriddedDataPdu/environmentalSimulationApplicationID

diagram
type	SimulationIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo environmental simulation application ID provides a unique identifier
source	<xs:element name="environmentalSimulationApplicationID" type="SimulationIdentifierType">   <xs:annotation>     <xs:appinfo>environmental simulation application ID provides a unique identifier</xs:appinfo>   </xs:annotation> </xs:element>

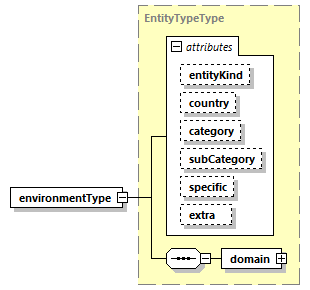

element GriddedDataPdu/environmentType

diagram
type	EntityTypeType
properties	content  complex
children	domain
attributes	Name   Type   Use   Default   Fixed   Annotation entityKind   xs:string            appinfo Kind of entity (SISO enumeration EntityKind uid 7) country   xs:string            appinfo country to which the design of the entity is attributed (SISO enumeration Country                      uid 29)                   category   xs:unsignedByte            appinfo category of entity subCategory   xs:unsignedByte            appinfo subcategory based on category specific   xs:unsignedByte            appinfo specific info based on subcategory extra   xs:unsignedByte
annotation	appinfo type of environment
source	<xs:element name="environmentType" type="EntityTypeType">   <xs:annotation>     <xs:appinfo>type of environment</xs:appinfo>   </xs:annotation> </xs:element>

element GriddedDataPdu/orientation

diagram
type	EulerAnglesType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation psi   xs:float            theta   xs:float            phi   xs:float
annotation	appinfo orientation of the data grid
source	<xs:element name="orientation" type="EulerAnglesType">   <xs:annotation>     <xs:appinfo>orientation of the data grid</xs:appinfo>   </xs:annotation> </xs:element>

element GriddedDataPdu/sampleTime

diagram
type	ClockTimeType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation hour   xs:unsignedLong            appinfo Hours in UTC timePastHour   xs:unsignedLong            appinfo Time past the hour
annotation	appinfo valid time of the enviormental data sample, 64-bit unsigned int
source	<xs:element name="sampleTime" type="ClockTimeType">   <xs:annotation>     <xs:appinfo>valid time of the enviormental data sample, 64-bit unsigned int</xs:appinfo>   </xs:annotation> </xs:element>

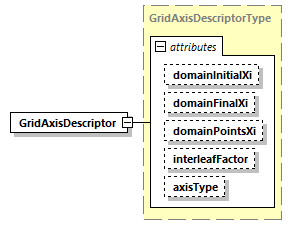

element GriddedDataPdu/GridAxisDescriptor

diagram
type	GridAxisDescriptorType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation domainInitialXi   xs:double            appinfo coordinate of the grid origin or initial value domainFinalXi   xs:double            appinfo coordinate of the endpoint or final value domainPointsXi   xs:unsignedShort            appinfo The number of grid points along the Xi domain axis for the enviornmental state data interleafFactor   xs:unsignedByte            appinfo interleaf factor along the domain axis. axisType   xs:string            appinfo type of grid axis (SISO enumeration GridAxisDescriptorAxisType uid 377)
annotation	appinfo (length of list found in field numberOfGridAxes)
source	<xs:element name="GridAxisDescriptor" type="GridAxisDescriptorType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfGridAxes)</xs:appinfo>   </xs:annotation> </xs:element>

element GriddedDataPdu/GridData

diagram
type	GridDataType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation sampleType   xs:string            appinfo (SISO enumeration GriddedDataSampleType uid 246) dataRepresentation   xs:string            appinfo (SISO enumeration GriddedDataDataRepresentation uid 247)
annotation	appinfo (length of list found in field numberOfGridAxes)
source	<xs:element name="GridData" type="GridDataType">   <xs:annotation>     <xs:appinfo>(length of list found in field numberOfGridAxes)</xs:appinfo>   </xs:annotation> </xs:element>
