complexType SyntheticEnvironmentFamilyPduType

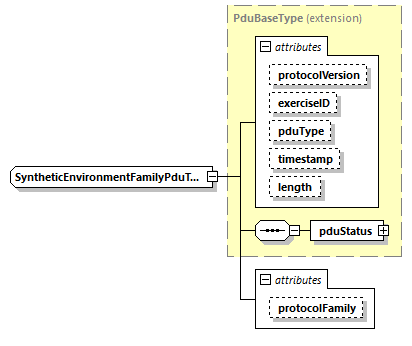

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus
used by	elements  ArealObjectStatePdu EnvironmentalProcessPdu GriddedDataPdu LinearObjectStatePdu PointObjectStatePdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SYNTHETIC_ENVIRONMENT
annotation	appinfo Section 5.3.11: Abstract superclass for synthetic environment PDUs             <xs:attribute name="id" type="xs:integer" fixed="9"/>
source	<xs:complexType name="SyntheticEnvironmentFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>Section 5.3.11: Abstract superclass for synthetic environment PDUs             <xs:attribute name="id" type="xs:integer" fixed="9"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:attribute name="protocolFamily" default="DISProtocolFamily.SYNTHETIC_ENVIRONMENT"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute SyntheticEnvironmentFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.SYNTHETIC_ENVIRONMENT
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.SYNTHETIC_ENVIRONMENT"/>
