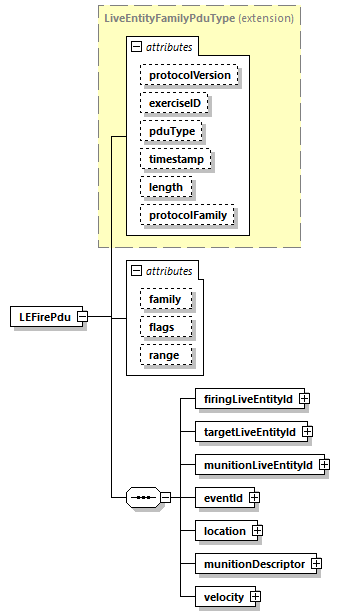

element LEFirePdu

diagram
type	extension of LiveEntityFamilyPduType
properties	content  complex
children	firingLiveEntityId targetLiveEntityId munitionLiveEntityId eventId location munitionDescriptor velocity
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.LIVE_ENTITY_LE_INFORMATION_INTERACTION      family            LiveEntityFamilyPduType   flags   xs:unsignedByte            appinfo Bits defined in IEEE Standard range   xs:unsignedShort
annotation	appinfo 9.4.5 Representation of weapons fire in a DIS exercise involving LEs.             <xs:attribute name="id" type="xs:integer" fixed="49"/>
source	<xs:element name="LEFirePdu">   <xs:annotation>     <xs:appinfo>9.4.5 Representation of weapons fire in a DIS exercise involving LEs.             <xs:attribute name="id" type="xs:integer" fixed="49"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="LiveEntityFamilyPduType">         <xs:sequence>           <xs:element name="firingLiveEntityId" type="EntityIDType"/>           <xs:element name="targetLiveEntityId" type="EntityIDType"/>           <xs:element name="munitionLiveEntityId" type="EntityIDType"/>           <xs:element name="eventId" type="EventIdentifierType"/>           <xs:element name="location" type="LiveEntityRelativeWorldCoordinatesType"/>           <xs:element name="munitionDescriptor" type="MunitionDescriptorType"/>           <xs:element name="velocity" type="LiveEntityLinearVelocityType"/>         </xs:sequence>         <xs:attribute name="family" fixed="LiveEntityFamilyPduType"/>         <xs:attribute name="flags" type="xs:unsignedByte">           <xs:annotation>             <xs:appinfo>Bits defined in IEEE Standard</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="range" type="xs:unsignedShort"/>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute LEFirePdu/@family

properties	fixed  LiveEntityFamilyPduType
source	<xs:attribute name="family" fixed="LiveEntityFamilyPduType"/>

attribute LEFirePdu/@flags

type	xs:unsignedByte
annotation	appinfo Bits defined in IEEE Standard
source	<xs:attribute name="flags" type="xs:unsignedByte">   <xs:annotation>     <xs:appinfo>Bits defined in IEEE Standard</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute LEFirePdu/@range

type	xs:unsignedShort
source	<xs:attribute name="range" type="xs:unsignedShort"/>

element LEFirePdu/firingLiveEntityId

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="firingLiveEntityId" type="EntityIDType"/>

element LEFirePdu/targetLiveEntityId

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="targetLiveEntityId" type="EntityIDType"/>

element LEFirePdu/munitionLiveEntityId

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
source	<xs:element name="munitionLiveEntityId" type="EntityIDType"/>

element LEFirePdu/eventId

diagram
type	EventIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation eventNumber   xs:unsignedShort
source	<xs:element name="eventId" type="EventIdentifierType"/>

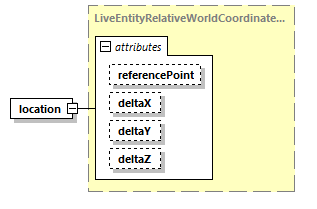

element LEFirePdu/location

diagram
type	LiveEntityRelativeWorldCoordinatesType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation referencePoint   xs:unsignedShort            deltaX   xs:unsignedShort            deltaY   xs:unsignedShort            deltaZ   xs:unsignedShort
source	<xs:element name="location" type="LiveEntityRelativeWorldCoordinatesType"/>

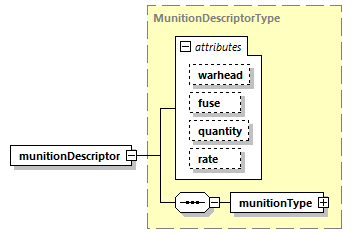

element LEFirePdu/munitionDescriptor

diagram
type	MunitionDescriptorType
properties	content  complex
children	munitionType
attributes	Name   Type   Use   Default   Fixed   Annotation warhead   xs:string            appinfo type of warhead enumeration (SISO enumeration MunitionDescriptorWarhead uid 60) fuse   xs:string            appinfo type of fuse used enumeration (SISO enumeration MunitionDescriptorFuse uid 61) quantity   xs:unsignedShort            appinfo how many of the munition were fired rate   xs:unsignedShort            appinfo rate at which the munition was fired
source	<xs:element name="munitionDescriptor" type="MunitionDescriptorType"/>

element LEFirePdu/velocity

diagram
type	LiveEntityLinearVelocityType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation xComponent   xs:unsignedShort            yComponent   xs:unsignedShort            zComponent   xs:unsignedShort
source	<xs:element name="velocity" type="LiveEntityLinearVelocityType"/>
