complexType LiveEntityFamilyPduType

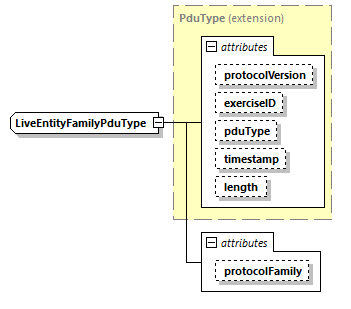

diagram
type	extension of PduType
properties	base  PduType abstract  true
used by	elements  AppearancePdu ArticulatedPartsPdu LEDetonationPdu LEFirePdu LiveEntityDetonationPdu LiveEntityFirePdu TimeSpacePositionInformationPdu TSPIPdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.LIVE_ENTITY_LE_INFORMATION_INTERACTION
annotation	appinfo Does not inherit from PduBase. See section 9.             <xs:attribute name="id" type="xs:integer" fixed="11"/>
source	<xs:complexType name="LiveEntityFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>Does not inherit from PduBase. See section 9.             <xs:attribute name="id" type="xs:integer" fixed="11"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduType">       <xs:attribute name="protocolFamily" default="DISProtocolFamily.LIVE_ENTITY_LE_INFORMATION_INTERACTION"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute LiveEntityFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.LIVE_ENTITY_LE_INFORMATION_INTERACTION
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.LIVE_ENTITY_LE_INFORMATION_INTERACTION"/>
