element CommentRPdu

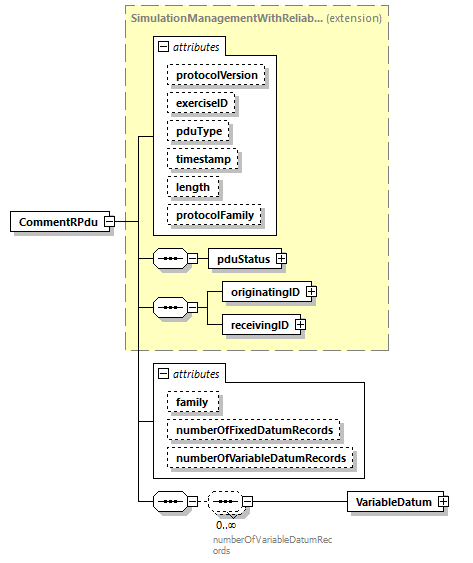

diagram
type	extension of SimulationManagementWithReliabilityFamilyPduType
properties	content  complex
children	pduStatus originatingID receivingID VariableDatum
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT_WITH_RELIABILITY      family            SimulationManagementWithReliabilityFamilyPduType   numberOfFixedDatumRecords   xs:unsignedLong            appinfo Fixed datum record count, not used in this Pdu numberOfVariableDatumRecords   xs:unsignedLong            appinfo variable datum record count
annotation	appinfo 5.12.4.13 Serves the same function as the Comment PDU. (length of list found in field             numberOfVariableDatumRecords)             <xs:attribute name="id" type="xs:integer" fixed="62"/>
source	<xs:element name="CommentRPdu">   <xs:annotation>     <xs:appinfo>5.12.4.13 Serves the same function as the Comment PDU. (length of list found in field             numberOfVariableDatumRecords)             <xs:attribute name="id" type="xs:integer" fixed="62"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SimulationManagementWithReliabilityFamilyPduType">         <xs:sequence>           <!--Attribute (as element) CommentRPdu variableDatumRecords with objectlist classRef name=VariableDatum, type=VariableDatumType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfVariableDatumRecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfVariableDatumRecords</xs:documentation>             </xs:annotation>             <xs:element name="VariableDatum" type="VariableDatumType">               <xs:annotation>                 <xs:appinfo>Variable datum records (length of list found in field numberOfVariableDatumRecords)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>         <xs:attribute name="numberOfFixedDatumRecords" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Fixed datum record count, not used in this Pdu</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfVariableDatumRecords" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>variable datum record count</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute CommentRPdu/@family

properties	fixed  SimulationManagementWithReliabilityFamilyPduType
source	<xs:attribute name="family" fixed="SimulationManagementWithReliabilityFamilyPduType"/>

attribute CommentRPdu/@numberOfFixedDatumRecords

type	xs:unsignedLong
annotation	appinfo Fixed datum record count, not used in this Pdu
source	<xs:attribute name="numberOfFixedDatumRecords" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Fixed datum record count, not used in this Pdu</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute CommentRPdu/@numberOfVariableDatumRecords

type	xs:unsignedLong
annotation	appinfo variable datum record count
source	<xs:attribute name="numberOfVariableDatumRecords" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>variable datum record count</xs:appinfo>   </xs:annotation> </xs:attribute>

element CommentRPdu/VariableDatum

diagram
type	VariableDatumType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation variableDatumID   xs:string            appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   variableDatumLength   xs:unsignedLong            appinfo Length, IN BITS, of the variable datum. variableDatumValue               appinfo This can be any number of bits long, depending on the datum. padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo Variable datum records (length of list found in field numberOfVariableDatumRecords)
source	<xs:element name="VariableDatum" type="VariableDatumType">   <xs:annotation>     <xs:appinfo>Variable datum records (length of list found in field numberOfVariableDatumRecords)</xs:appinfo>   </xs:annotation> </xs:element>
