complexType VariableDatumType

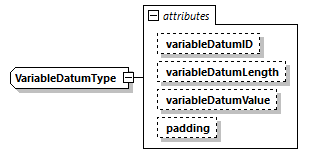

diagram
type	extension of rootType
properties	base  rootType abstract  false
used by	elements  ActionRequestPdu/VariableDatum ActionResponsePdu/VariableDatum CommentPdu/VariableDatum DataPdu/VariableDatum DataQueryPdu/VariableDatum EventReportPdu/VariableDatum SetDataPdu/VariableDatum AggregateStatePdu/VariableDatum IsGroupOfPdu/VariableDatum ActionRequestRPdu/VariableDatum ActionResponseRPdu/VariableDatum CommentRPdu/VariableDatum DataQueryRPdu/VariableDatum DataRPdu/VariableDatum EventReportRPdu/VariableDatum SetDataRPdu/VariableDatum DatumSpecificationType/VariableDatum
attributes	Name   Type   Use   Default   Fixed   Annotation variableDatumID   xs:string            appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   variableDatumLength   xs:unsignedLong            appinfo Length, IN BITS, of the variable datum. variableDatumValue               appinfo This can be any number of bits long, depending on the datum. padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo The variable datum type, the datum length, and the value for that variable datum type.             Section 6.2.93
source	<xs:complexType name="VariableDatumType" abstract="false">   <xs:annotation>     <xs:appinfo>The variable datum type, the datum length, and the value for that variable datum type.             Section 6.2.93          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:attribute name="variableDatumID" type="xs:string">         <xs:annotation>           <xs:appinfo>Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="variableDatumLength" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Length, IN BITS, of the variable datum.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="variableDatumValue">         <xs:annotation>           <xs:appinfo>This can be any number of bits long, depending on the datum.</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="padding" type="xs:unsignedInt">         <xs:annotation>           <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute VariableDatumType/@variableDatumID

type	xs:string
annotation	appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)
source	<xs:attribute name="variableDatumID" type="xs:string">   <xs:annotation>     <xs:appinfo>Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableDatumType/@variableDatumLength

type	xs:unsignedLong
annotation	appinfo Length, IN BITS, of the variable datum.
source	<xs:attribute name="variableDatumLength" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Length, IN BITS, of the variable datum.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableDatumType/@variableDatumValue

annotation	appinfo This can be any number of bits long, depending on the datum.
source	<xs:attribute name="variableDatumValue">   <xs:annotation>     <xs:appinfo>This can be any number of bits long, depending on the datum.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute VariableDatumType/@padding

type	xs:unsignedInt
annotation	appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
source	<xs:attribute name="padding" type="xs:unsignedInt">   <xs:annotation>     <xs:appinfo>zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data                   </xs:appinfo>   </xs:annotation> </xs:attribute>
