complexType DatumSpecificationType

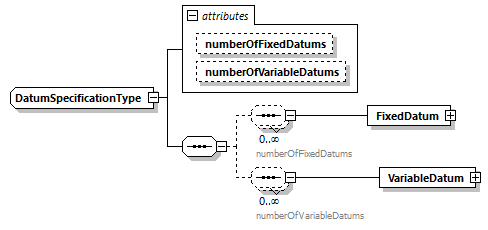

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	FixedDatum VariableDatum
attributes	Name   Type   Use   Default   Fixed   Annotation numberOfFixedDatums   xs:unsignedLong            appinfo Number of fixed datums numberOfVariableDatums   xs:unsignedLong            appinfo Number of variable datums
annotation	appinfo List of fixed and variable datum records. Section 6.2.18 (length of list found in             field numberOfFixedDatums numberOfVariableDatums)
source	<xs:complexType name="DatumSpecificationType" abstract="false">   <xs:annotation>     <xs:appinfo>List of fixed and variable datum records. Section 6.2.18 (length of list found in             field numberOfFixedDatums numberOfVariableDatums)          </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <!--Attribute (as element) DatumSpecification fixedDatumIDList with objectlist classRef name=FixedDatum, type=FixedDatumType-->         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>Number of elements is determined by size fieldnumberOfFixedDatums and can be 0 or greater.                         Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                      </xs:appinfo>             <xs:documentation>numberOfFixedDatums</xs:documentation>           </xs:annotation>           <xs:element name="FixedDatum" type="FixedDatumType">             <xs:annotation>               <xs:appinfo>variable length list fixed datums (length of list found in field numberOfFixedDatums)</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>         <!--Attribute (as element) DatumSpecification variableDatumIDList with objectlist classRef name=VariableDatum, type=VariableDatumType-->         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:appinfo>Number of elements is determined by size fieldnumberOfVariableDatums and can be 0 or greater.                         Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                      </xs:appinfo>             <xs:documentation>numberOfVariableDatums</xs:documentation>           </xs:annotation>           <xs:element name="VariableDatum" type="VariableDatumType">             <xs:annotation>               <xs:appinfo>variable length list of variable datums (length of list found in field numberOfVariableDatums)</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:sequence>       <xs:attribute name="numberOfFixedDatums" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Number of fixed datums</xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="numberOfVariableDatums" type="xs:unsignedLong">         <xs:annotation>           <xs:appinfo>Number of variable datums</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute DatumSpecificationType/@numberOfFixedDatums

type	xs:unsignedLong
annotation	appinfo Number of fixed datums
source	<xs:attribute name="numberOfFixedDatums" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Number of fixed datums</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DatumSpecificationType/@numberOfVariableDatums

type	xs:unsignedLong
annotation	appinfo Number of variable datums
source	<xs:attribute name="numberOfVariableDatums" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Number of variable datums</xs:appinfo>   </xs:annotation> </xs:attribute>

element DatumSpecificationType/FixedDatum

diagram
type	FixedDatumType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation fixedDatumID   xs:string            appinfo ID of the fixed datum, an enumeration (SISO enumeration VariableRecordType uid 66                      Variable Record Type values are defined by VariableRecordType enumerations)                   fixedDatumValue   xs:unsignedLong            appinfo Value for the fixed datum
annotation	appinfo variable length list fixed datums (length of list found in field numberOfFixedDatums)
source	<xs:element name="FixedDatum" type="FixedDatumType">   <xs:annotation>     <xs:appinfo>variable length list fixed datums (length of list found in field numberOfFixedDatums)</xs:appinfo>   </xs:annotation> </xs:element>

element DatumSpecificationType/VariableDatum

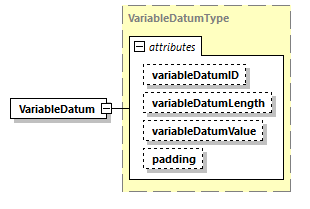

diagram
type	VariableDatumType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation variableDatumID   xs:string            appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   variableDatumLength   xs:unsignedLong            appinfo Length, IN BITS, of the variable datum. variableDatumValue               appinfo This can be any number of bits long, depending on the datum. padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo variable length list of variable datums (length of list found in field numberOfVariableDatums)
source	<xs:element name="VariableDatum" type="VariableDatumType">   <xs:annotation>     <xs:appinfo>variable length list of variable datums (length of list found in field numberOfVariableDatums)</xs:appinfo>   </xs:annotation> </xs:element>
