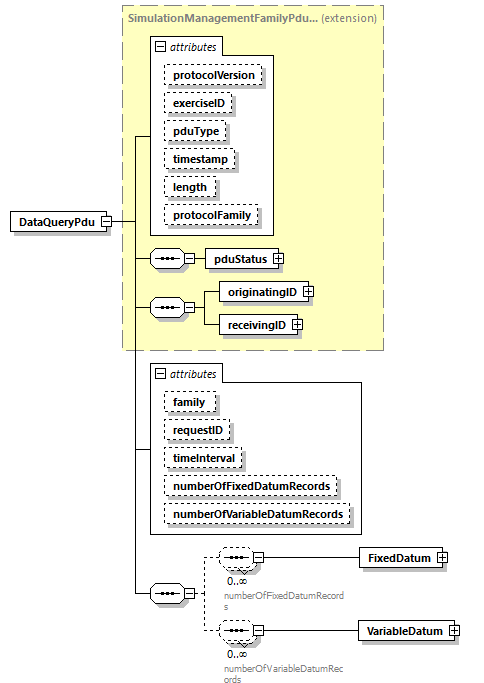

element DataQueryPdu

diagram
type	extension of SimulationManagementFamilyPduType
properties	content  complex
children	pduStatus originatingID receivingID FixedDatum VariableDatum
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT      family            SimulationManagementFamilyPduType   requestID   xs:unsignedLong            appinfo ID of request timeInterval   xs:unsignedLong            appinfo time issues between issues of Data PDUs. Zero means send once only. numberOfFixedDatumRecords   xs:unsignedLong            appinfo Number of fixed datum records numberOfVariableDatumRecords   xs:unsignedLong            appinfo Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)
annotation	appinfo Section 7.5.9. A request for data from an entity shall be communicated by issuing             a Data Query PDU. See 5.6.5.9 (length of list found in field numberOfFixedDatumRecords             numberOfVariableDatumRecords)             <xs:attribute name="id" type="xs:integer" fixed="18"/>
source	<xs:element name="DataQueryPdu">   <xs:annotation>     <xs:appinfo>Section 7.5.9. A request for data from an entity shall be communicated by issuing             a Data Query PDU. See 5.6.5.9 (length of list found in field numberOfFixedDatumRecords             numberOfVariableDatumRecords)             <xs:attribute name="id" type="xs:integer" fixed="18"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SimulationManagementFamilyPduType">         <xs:sequence>           <!--Attribute (as element) DataQueryPdu fixedDatums with objectlist classRef name=FixedDatum, type=FixedDatumType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfFixedDatumRecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfFixedDatumRecords</xs:documentation>             </xs:annotation>             <xs:element name="FixedDatum" type="FixedDatumType">               <xs:annotation>                 <xs:appinfo>variable length list of fixed datums (length of list found in field numberOfFixedDatumRecords)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>           <!--Attribute (as element) DataQueryPdu variableDatums with objectlist classRef name=VariableDatum, type=VariableDatumType-->           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:annotation>               <xs:appinfo>Number of elements is determined by size fieldnumberOfVariableDatumRecords and can be 0 or greater.                            Ensure that the total PDU size does not exceed maximums allowed in IEEE DIS Specification.                         </xs:appinfo>               <xs:documentation>numberOfVariableDatumRecords</xs:documentation>             </xs:annotation>             <xs:element name="VariableDatum" type="VariableDatumType">               <xs:annotation>                 <xs:appinfo>variable length list of variable length datums (length of list found in field numberOfVariableDatumRecords)</xs:appinfo>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:sequence>         <xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>         <xs:attribute name="requestID" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>ID of request</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="timeInterval" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>time issues between issues of Data PDUs. Zero means send once only.</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfFixedDatumRecords" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Number of fixed datum records</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="numberOfVariableDatumRecords" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute DataQueryPdu/@family

properties	fixed  SimulationManagementFamilyPduType
source	<xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>

attribute DataQueryPdu/@requestID

type	xs:unsignedLong
annotation	appinfo ID of request
source	<xs:attribute name="requestID" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>ID of request</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DataQueryPdu/@timeInterval

type	xs:unsignedLong
annotation	appinfo time issues between issues of Data PDUs. Zero means send once only.
source	<xs:attribute name="timeInterval" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>time issues between issues of Data PDUs. Zero means send once only.</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DataQueryPdu/@numberOfFixedDatumRecords

type	xs:unsignedLong
annotation	appinfo Number of fixed datum records
source	<xs:attribute name="numberOfFixedDatumRecords" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Number of fixed datum records</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DataQueryPdu/@numberOfVariableDatumRecords

type	xs:unsignedLong
annotation	appinfo Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)
source	<xs:attribute name="numberOfVariableDatumRecords" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Number of variable datum records, handled automatically by marshaller at run time                         (and not modifiable by end-user programmers)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

element DataQueryPdu/FixedDatum

diagram
type	FixedDatumType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation fixedDatumID   xs:string            appinfo ID of the fixed datum, an enumeration (SISO enumeration VariableRecordType uid 66                      Variable Record Type values are defined by VariableRecordType enumerations)                   fixedDatumValue   xs:unsignedLong            appinfo Value for the fixed datum
annotation	appinfo variable length list of fixed datums (length of list found in field numberOfFixedDatumRecords)
source	<xs:element name="FixedDatum" type="FixedDatumType">   <xs:annotation>     <xs:appinfo>variable length list of fixed datums (length of list found in field numberOfFixedDatumRecords)</xs:appinfo>   </xs:annotation> </xs:element>

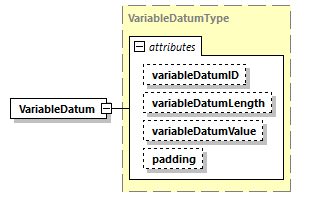

element DataQueryPdu/VariableDatum

diagram
type	VariableDatumType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation variableDatumID   xs:string            appinfo Type of variable datum to be transmitted. 32-bit enumeration defined in EBV (SISO                      enumeration VariableRecordType uid 66 Variable Record Type values are defined by VariableRecordType                      enumerations)                   variableDatumLength   xs:unsignedLong            appinfo Length, IN BITS, of the variable datum. variableDatumValue               appinfo This can be any number of bits long, depending on the datum. padding   xs:unsignedInt            appinfo zero-filled array of padding bits for byte alignment and consistent sizing of PDU                      data
annotation	appinfo variable length list of variable length datums (length of list found in field numberOfVariableDatumRecords)
source	<xs:element name="VariableDatum" type="VariableDatumType">   <xs:annotation>     <xs:appinfo>variable length list of variable length datums (length of list found in field numberOfVariableDatumRecords)</xs:appinfo>   </xs:annotation> </xs:element>
