complexType SimulationManagementFamilyPduType

diagram
type	extension of PduBaseType
properties	base  PduBaseType abstract  true
children	pduStatus originatingID receivingID
used by	elements  AcknowledgePdu ActionRequestPdu ActionResponsePdu CommentPdu CreateEntityPdu DataPdu DataQueryPdu EventReportPdu RemoveEntityPdu SetDataPdu StartResumePdu StopFreezePdu
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT
annotation	appinfo First part of a simulation management (SIMAN) PDU and SIMAN-Reliability (SIMAN-R)             PDU. Sectionn 6.2.81             <xs:attribute name="id" type="xs:integer" fixed="5"/>
source	<xs:complexType name="SimulationManagementFamilyPduType" abstract="true">   <xs:annotation>     <xs:appinfo>First part of a simulation management (SIMAN) PDU and SIMAN-Reliability (SIMAN-R)             PDU. Sectionn 6.2.81             <xs:attribute name="id" type="xs:integer" fixed="5"/>     </xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PduBaseType">       <xs:sequence>         <xs:element name="originatingID" type="SimulationIdentifierType">           <xs:annotation>             <xs:appinfo>IDs the simulation or entity, either a simulation or an entity. Either 6.2.80 or 6.2.28</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="receivingID" type="SimulationIdentifierType">           <xs:annotation>             <xs:appinfo>simulation, all simulations, a special ID, or an entity. See 5.6.5 and 5.12.4</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="protocolFamily" default="DISProtocolFamily.SIMULATION_MANAGEMENT"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute SimulationManagementFamilyPduType/@protocolFamily

properties	default  DISProtocolFamily.SIMULATION_MANAGEMENT
source	<xs:attribute name="protocolFamily" default="DISProtocolFamily.SIMULATION_MANAGEMENT"/>

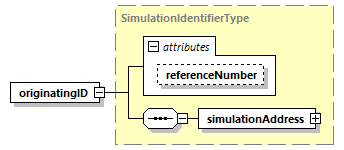

element SimulationManagementFamilyPduType/originatingID

diagram
type	SimulationIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo IDs the simulation or entity, either a simulation or an entity. Either 6.2.80 or 6.2.28
source	<xs:element name="originatingID" type="SimulationIdentifierType">   <xs:annotation>     <xs:appinfo>IDs the simulation or entity, either a simulation or an entity. Either 6.2.80 or 6.2.28</xs:appinfo>   </xs:annotation> </xs:element>

element SimulationManagementFamilyPduType/receivingID

diagram
type	SimulationIdentifierType
properties	content  complex
children	simulationAddress
attributes	Name   Type   Use   Default   Fixed   Annotation referenceNumber   xs:unsignedShort            appinfo This field shall be set to zero as there is no reference number associated with a                      Simulation Identifier.
annotation	appinfo simulation, all simulations, a special ID, or an entity. See 5.6.5 and 5.12.4
source	<xs:element name="receivingID" type="SimulationIdentifierType">   <xs:annotation>     <xs:appinfo>simulation, all simulations, a special ID, or an entity. See 5.6.5 and 5.12.4</xs:appinfo>   </xs:annotation> </xs:element>
