element StopFreezePdu

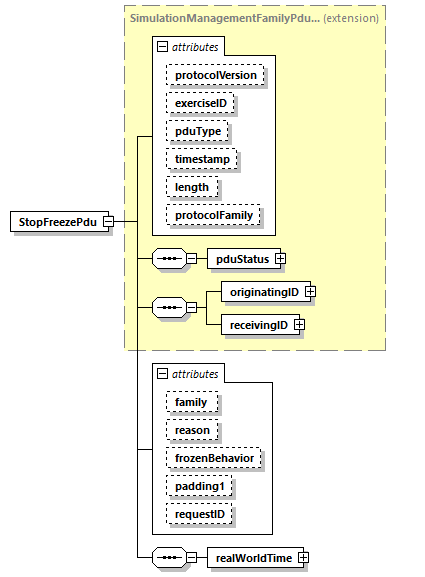

diagram DIS_7_2012.autogenerated_diagrams/DIS_7_2012.autogenerated_p312.png
type extension of SimulationManagementFamilyPduType
properties
content complex
children pduStatus originatingID receivingID realWorldTime
used by
element DIS
attributes
Name  Type  Use  Default  Fixed  Annotation
protocolVersion  xs:string
appinfo
The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration
                     DISProtocolVersion uid 3)

exerciseID  xs:unsignedByte
appinfo
Exercise ID provides a unique identifier
pduType  xs:string
appinfo
Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4)
timestamp  xs:unsignedLong
appinfo
Timestamp value
length  xs:unsignedShort
appinfo
Length, in bytes, of the PDU
protocolFamily      DISProtocolFamily.SIMULATION_MANAGEMENT
family        SimulationManagementFamilyPduType
reason  xs:string
appinfo
Reason the simulation was stopped or frozen (see section 7 of SISO-REF-010) represented
                        by an 8-bit enumeration (SISO enumeration StopFreezeReason uid 67)

frozenBehavior  xs:unsignedByte
appinfo
Internal behavior of the entity (or simulation) and its appearance while frozen to
                        the other participants (SISO bitfield enumeration, size 8 bits, StopFreezeFrozenBehavior
                        uid 68)

padding1  xs:unsignedShort
appinfo
padding
requestID  xs:unsignedLong
appinfo
Request ID that is unique
annotation
appinfo
Section 7.5.5. The stopping or freezing of an entity/exercise shall be communicated
            using a Stop/Freeze PDU. See 5.6.5.5
            <xs:attribute name="id" type="xs:integer" fixed="14"/>
source <xs:element name="StopFreezePdu">
  <xs:annotation>
    <xs:appinfo>Section 7.5.5. The stopping or freezing of an entity/exercise shall be communicated
            using a Stop/Freeze PDU. See 5.6.5.5
            <xs:attribute name="id" type="xs:integer" fixed="14"/>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="SimulationManagementFamilyPduType">
        <xs:sequence>
          <xs:element name="realWorldTime" type="ClockTimeType">
            <xs:annotation>
              <xs:appinfo>real-world(UTC) time at which the entity shall stop or freeze in the exercise</xs:appinfo>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>
        <xs:attribute name="reason" type="xs:string">
          <xs:annotation>
            <xs:appinfo>Reason the simulation was stopped or frozen (see section 7 of SISO-REF-010) represented
                        by an 8-bit enumeration (SISO enumeration StopFreezeReason uid 67)
                     </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="frozenBehavior" type="xs:unsignedByte">
          <xs:annotation>
            <xs:appinfo>Internal behavior of the entity (or simulation) and its appearance while frozen to
                        the other participants (SISO bitfield enumeration, size 8 bits, StopFreezeFrozenBehavior
                        uid 68)
                     </xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="padding1" type="xs:unsignedShort">
          <xs:annotation>
            <xs:appinfo>padding</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="requestID" type="xs:unsignedLong">
          <xs:annotation>
            <xs:appinfo>Request ID that is unique</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
      <!-- ========== debug: divider between elements and attributes ========== -->
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute StopFreezePdu/@family
properties
fixed SimulationManagementFamilyPduType
source <xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>

attribute StopFreezePdu/@reason
type xs:string
annotation
appinfo
Reason the simulation was stopped or frozen (see section 7 of SISO-REF-010) represented
                        by an 8-bit enumeration (SISO enumeration StopFreezeReason uid 67)

source <xs:attribute name="reason" type="xs:string">
  <xs:annotation>
    <xs:appinfo>Reason the simulation was stopped or frozen (see section 7 of SISO-REF-010) represented
                        by an 8-bit enumeration (SISO enumeration StopFreezeReason uid 67)
                     </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StopFreezePdu/@frozenBehavior
type xs:unsignedByte
annotation
appinfo
Internal behavior of the entity (or simulation) and its appearance while frozen to
                        the other participants (SISO bitfield enumeration, size 8 bits, StopFreezeFrozenBehavior
                        uid 68)

source <xs:attribute name="frozenBehavior" type="xs:unsignedByte">
  <xs:annotation>
    <xs:appinfo>Internal behavior of the entity (or simulation) and its appearance while frozen to
                        the other participants (SISO bitfield enumeration, size 8 bits, StopFreezeFrozenBehavior
                        uid 68)
                     </xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StopFreezePdu/@padding1
type xs:unsignedShort
annotation
appinfo
padding
source <xs:attribute name="padding1" type="xs:unsignedShort">
  <xs:annotation>
    <xs:appinfo>padding</xs:appinfo>
  </xs:annotation>
</xs:attribute>

attribute StopFreezePdu/@requestID
type xs:unsignedLong
annotation
appinfo
Request ID that is unique
source <xs:attribute name="requestID" type="xs:unsignedLong">
  <xs:annotation>
    <xs:appinfo>Request ID that is unique</xs:appinfo>
  </xs:annotation>
</xs:attribute>

element StopFreezePdu/realWorldTime
diagram DIS_7_2012.autogenerated_diagrams/DIS_7_2012.autogenerated_p313.png
type ClockTimeType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
hour  xs:unsignedLong
appinfo
Hours in UTC
timePastHour  xs:unsignedLong
appinfo
Time past the hour
annotation
appinfo
real-world(UTC) time at which the entity shall stop or freeze in the exercise
source <xs:element name="realWorldTime" type="ClockTimeType">
  <xs:annotation>
    <xs:appinfo>real-world(UTC) time at which the entity shall stop or freeze in the exercise</xs:appinfo>
  </xs:annotation>
</xs:element>
