element RemoveEntityPdu

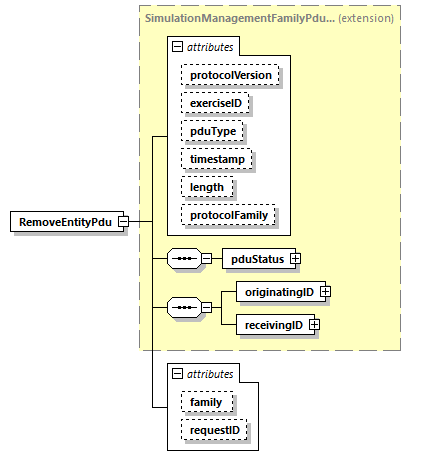

diagram
type	extension of SimulationManagementFamilyPduType
properties	content  complex
children	pduStatus originatingID receivingID
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.SIMULATION_MANAGEMENT      family            SimulationManagementFamilyPduType   requestID   xs:unsignedLong            appinfo This field shall identify the specific and unique start/resume request being made                         by the SM
annotation	appinfo Section 7.5.3 The removal of an entity from an exercise shall be communicated with             a Remove Entity PDU. See 5.6.5.3.             <xs:attribute name="id" type="xs:integer" fixed="12"/>
source	<xs:element name="RemoveEntityPdu">   <xs:annotation>     <xs:appinfo>Section 7.5.3 The removal of an entity from an exercise shall be communicated with             a Remove Entity PDU. See 5.6.5.3.             <xs:attribute name="id" type="xs:integer" fixed="12"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="SimulationManagementFamilyPduType">         <xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>         <xs:attribute name="requestID" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>This field shall identify the specific and unique start/resume request being made                         by the SM                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute RemoveEntityPdu/@family

properties	fixed  SimulationManagementFamilyPduType
source	<xs:attribute name="family" fixed="SimulationManagementFamilyPduType"/>

attribute RemoveEntityPdu/@requestID

type	xs:unsignedLong
annotation	appinfo This field shall identify the specific and unique start/resume request being made                         by the SM
source	<xs:attribute name="requestID" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>This field shall identify the specific and unique start/resume request being made                         by the SM                      </xs:appinfo>   </xs:annotation> </xs:attribute>
