complexType DeadReckoningParametersType

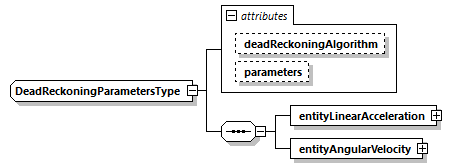

diagram
type	extension of rootType
properties	base  rootType abstract  false
children	entityLinearAcceleration entityAngularVelocity
used by	element  EntityStatePdu/deadReckoningParameters
attributes	Name   Type   Use   Default   Fixed   Annotation deadReckoningAlgorithm   xs:string            appinfo Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   parameters               appinfo Dead reckoning parameters. Contents depends on algorithm.
annotation	appinfo Not specified in the standard. This is used by the ESPDU
source	<xs:complexType name="DeadReckoningParametersType" abstract="false">   <xs:annotation>     <xs:appinfo>Not specified in the standard. This is used by the ESPDU</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="rootType">       <xs:sequence>         <xs:element name="entityLinearAcceleration" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Linear acceleration of the entity</xs:appinfo>           </xs:annotation>         </xs:element>         <xs:element name="entityAngularVelocity" type="Vector3FloatType">           <xs:annotation>             <xs:appinfo>Angular velocity of the entity</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="deadReckoningAlgorithm" type="xs:string">         <xs:annotation>           <xs:appinfo>Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   </xs:appinfo>         </xs:annotation>       </xs:attribute>       <xs:attribute name="parameters">         <xs:annotation>           <xs:appinfo>Dead reckoning parameters. Contents depends on algorithm.</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--abstract='false' base='rootType'--> </xs:complexType>

attribute DeadReckoningParametersType/@deadReckoningAlgorithm

type	xs:string
annotation	appinfo Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)
source	<xs:attribute name="deadReckoningAlgorithm" type="xs:string">   <xs:annotation>     <xs:appinfo>Algorithm to use in computing dead reckoning. See EBV doc. (SISO enumeration DeadReckoningAlgorithm                      uid 44)                   </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute DeadReckoningParametersType/@parameters

annotation	appinfo Dead reckoning parameters. Contents depends on algorithm.
source	<xs:attribute name="parameters">   <xs:annotation>     <xs:appinfo>Dead reckoning parameters. Contents depends on algorithm.</xs:appinfo>   </xs:annotation> </xs:attribute>

element DeadReckoningParametersType/entityLinearAcceleration

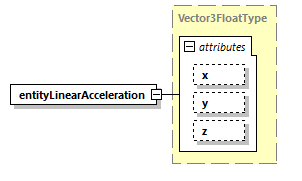

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Linear acceleration of the entity
source	<xs:element name="entityLinearAcceleration" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Linear acceleration of the entity</xs:appinfo>   </xs:annotation> </xs:element>

element DeadReckoningParametersType/entityAngularVelocity

diagram
type	Vector3FloatType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:float            appinfo X value y   xs:float            appinfo y Value z   xs:float            appinfo Z value
annotation	appinfo Angular velocity of the entity
source	<xs:element name="entityAngularVelocity" type="Vector3FloatType">   <xs:annotation>     <xs:appinfo>Angular velocity of the entity</xs:appinfo>   </xs:annotation> </xs:element>
