element ReceiverPdu

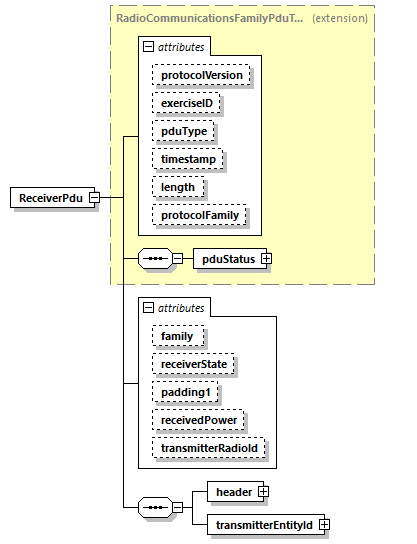

diagram
type	extension of RadioCommunicationsFamilyPduType
properties	content  complex
children	pduStatus header transmitterEntityId
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   receiverState   xs:string            appinfo encoding scheme used, and enumeration (SISO enumeration ReceiverReceiverState uid                         179)                      padding1   xs:unsignedShort            receivedPower   xs:float            appinfo received power transmitterRadioId   xs:unsignedShort            appinfo ID of transmitting radio
annotation	appinfo 5.8.5 Communicates the state of a particular radio receiver. Its primary application             is in communicating state information to radio network monitors, data loggers, and             similar applications for use in debugging, supervision, and after-action review.             <xs:attribute name="id" type="xs:integer" fixed="27"/>
source	<xs:element name="ReceiverPdu">   <xs:annotation>     <xs:appinfo>5.8.5 Communicates the state of a particular radio receiver. Its primary application             is in communicating state information to radio network monitors, data loggers, and             similar applications for use in debugging, supervision, and after-action review.             <xs:attribute name="id" type="xs:integer" fixed="27"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="RadioCommunicationsFamilyPduType">         <xs:sequence>           <xs:element name="header" type="RadioCommsHeaderType"/>           <xs:element name="transmitterEntityId" type="EntityIDType">             <xs:annotation>               <xs:appinfo>ID of transmitter</xs:appinfo>             </xs:annotation>           </xs:element>         </xs:sequence>         <xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>         <xs:attribute name="receiverState" type="xs:string">           <xs:annotation>             <xs:appinfo>encoding scheme used, and enumeration (SISO enumeration ReceiverReceiverState uid                         179)                      </xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padding1" type="xs:unsignedShort"/>         <xs:attribute name="receivedPower" type="xs:float">           <xs:annotation>             <xs:appinfo>received power</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="transmitterRadioId" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>ID of transmitting radio</xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute ReceiverPdu/@family

properties	fixed  RadioCommunicationsFamilyPduType
source	<xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>

attribute ReceiverPdu/@receiverState

type	xs:string
annotation	appinfo encoding scheme used, and enumeration (SISO enumeration ReceiverReceiverState uid                         179)
source	<xs:attribute name="receiverState" type="xs:string">   <xs:annotation>     <xs:appinfo>encoding scheme used, and enumeration (SISO enumeration ReceiverReceiverState uid                         179)                      </xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ReceiverPdu/@padding1

type	xs:unsignedShort
source	<xs:attribute name="padding1" type="xs:unsignedShort"/>

attribute ReceiverPdu/@receivedPower

type	xs:float
annotation	appinfo received power
source	<xs:attribute name="receivedPower" type="xs:float">   <xs:annotation>     <xs:appinfo>received power</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute ReceiverPdu/@transmitterRadioId

type	xs:unsignedShort
annotation	appinfo ID of transmitting radio
source	<xs:attribute name="transmitterRadioId" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>ID of transmitting radio</xs:appinfo>   </xs:annotation> </xs:attribute>

element ReceiverPdu/header

diagram
type	RadioCommsHeaderType
properties	content  complex
children	pduStatus radioReferenceID
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   radioNumber   xs:unsignedShort            appinfo particular radio within an entity
source	<xs:element name="header" type="RadioCommsHeaderType"/>

element ReceiverPdu/transmitterEntityId

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo ID of transmitter
source	<xs:element name="transmitterEntityId" type="EntityIDType">   <xs:annotation>     <xs:appinfo>ID of transmitter</xs:appinfo>   </xs:annotation> </xs:element>
