complexType RadioCommsHeaderType

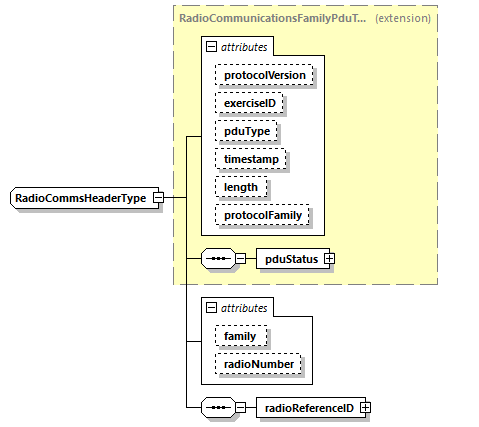

diagram
type	extension of RadioCommunicationsFamilyPduType
properties	base  RadioCommunicationsFamilyPduType
children	pduStatus radioReferenceID
used by	elements  ReceiverPdu/header SignalPdu/header TransmitterPdu/header
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   radioNumber   xs:unsignedShort            appinfo particular radio within an entity
annotation	appinfo Common PDU fields for Radio Communications family
source	<xs:complexType name="RadioCommsHeaderType">   <xs:annotation>     <xs:appinfo>Common PDU fields for Radio Communications family</xs:appinfo>   </xs:annotation>   <xs:complexContent>     <xs:extension base="RadioCommunicationsFamilyPduType">       <xs:sequence>         <xs:element name="radioReferenceID" type="EntityIDType">           <xs:annotation>             <xs:appinfo>ID of the entitythat is the source of the communication</xs:appinfo>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>       <xs:attribute name="radioNumber" type="xs:unsignedShort">         <xs:annotation>           <xs:appinfo>particular radio within an entity</xs:appinfo>         </xs:annotation>       </xs:attribute>     </xs:extension>     <!-- ========== debug: divider between elements and attributes ========== -->   </xs:complexContent>   <!--debug: another class, providing Pdu types--> </xs:complexType>

attribute RadioCommsHeaderType/@family

properties	fixed  RadioCommunicationsFamilyPduType
source	<xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>

attribute RadioCommsHeaderType/@radioNumber

type	xs:unsignedShort
annotation	appinfo particular radio within an entity
source	<xs:attribute name="radioNumber" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>particular radio within an entity</xs:appinfo>   </xs:annotation> </xs:attribute>

element RadioCommsHeaderType/radioReferenceID

diagram
type	EntityIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation siteID   xs:unsignedShort            appinfo Site ID values are unique identification number for originating site, often corresponding                      to an internet address. Site ID values are agreed upon by individual simulations.                   applicationID   xs:unsignedShort            appinfo Application ID values are unique identification number for originating application                      at a given site. Application ID values are sssigned by individual sites.                   entityID   xs:unsignedShort            appinfo Entity ID values are unique identification number for s givent entity in the originating                      application at a given site. Entity ID values are sssigned by individual simulation                      programs.
annotation	appinfo ID of the entitythat is the source of the communication
source	<xs:element name="radioReferenceID" type="EntityIDType">   <xs:annotation>     <xs:appinfo>ID of the entitythat is the source of the communication</xs:appinfo>   </xs:annotation> </xs:element>
