element SignalPdu

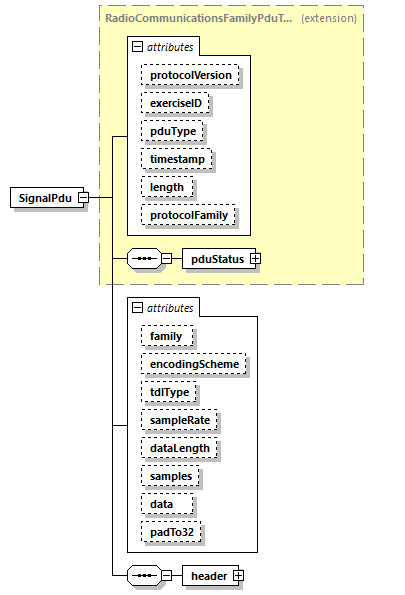

diagram
type	extension of RadioCommunicationsFamilyPduType
properties	content  complex
children	pduStatus header
used by	element  DIS
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   encodingScheme   xs:unsignedShort            appinfo encoding scheme used, and enumeration tdlType   xs:string            appinfo tdl type (SISO enumeration SignalTDLType uid 178) sampleRate   xs:unsignedLong            appinfo sample rate dataLength   xs:unsignedShort            appinfo length of data in bits samples   xs:unsignedShort            appinfo number of samples data               appinfo list of eight bit values padTo32   xs:unsignedLong            appinfo Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu
annotation	appinfo 5.8.4 Conveys the audio or digital data carried by the simulated radio or intercom             transmission.             <xs:attribute name="id" type="xs:integer" fixed="26"/>
source	<xs:element name="SignalPdu">   <xs:annotation>     <xs:appinfo>5.8.4 Conveys the audio or digital data carried by the simulated radio or intercom             transmission.             <xs:attribute name="id" type="xs:integer" fixed="26"/>     </xs:appinfo>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="RadioCommunicationsFamilyPduType">         <xs:sequence>           <xs:element name="header" type="RadioCommsHeaderType"/>         </xs:sequence>         <xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>         <xs:attribute name="encodingScheme" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>encoding scheme used, and enumeration</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="tdlType" type="xs:string">           <xs:annotation>             <xs:appinfo>tdl type (SISO enumeration SignalTDLType uid 178)</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="sampleRate" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>sample rate</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="dataLength" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>length of data in bits</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="samples" type="xs:unsignedShort">           <xs:annotation>             <xs:appinfo>number of samples</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="data">           <xs:annotation>             <xs:appinfo>list of eight bit values</xs:appinfo>           </xs:annotation>         </xs:attribute>         <xs:attribute name="padTo32" type="xs:unsignedLong">           <xs:annotation>             <xs:appinfo>Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu                      </xs:appinfo>           </xs:annotation>         </xs:attribute>       </xs:extension>       <!-- ========== debug: divider between elements and attributes ========== -->     </xs:complexContent>   </xs:complexType> </xs:element>

attribute SignalPdu/@family

properties	fixed  RadioCommunicationsFamilyPduType
source	<xs:attribute name="family" fixed="RadioCommunicationsFamilyPduType"/>

attribute SignalPdu/@encodingScheme

type	xs:unsignedShort
annotation	appinfo encoding scheme used, and enumeration
source	<xs:attribute name="encodingScheme" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>encoding scheme used, and enumeration</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SignalPdu/@tdlType

type	xs:string
annotation	appinfo tdl type (SISO enumeration SignalTDLType uid 178)
source	<xs:attribute name="tdlType" type="xs:string">   <xs:annotation>     <xs:appinfo>tdl type (SISO enumeration SignalTDLType uid 178)</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SignalPdu/@sampleRate

type	xs:unsignedLong
annotation	appinfo sample rate
source	<xs:attribute name="sampleRate" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>sample rate</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SignalPdu/@dataLength

type	xs:unsignedShort
annotation	appinfo length of data in bits
source	<xs:attribute name="dataLength" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>length of data in bits</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SignalPdu/@samples

type	xs:unsignedShort
annotation	appinfo number of samples
source	<xs:attribute name="samples" type="xs:unsignedShort">   <xs:annotation>     <xs:appinfo>number of samples</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SignalPdu/@data

annotation	appinfo list of eight bit values
source	<xs:attribute name="data">   <xs:annotation>     <xs:appinfo>list of eight bit values</xs:appinfo>   </xs:annotation> </xs:attribute>

attribute SignalPdu/@padTo32

type	xs:unsignedLong
annotation	appinfo Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu
source	<xs:attribute name="padTo32" type="xs:unsignedLong">   <xs:annotation>     <xs:appinfo>Wireshark (incorrectly) reports malformed packet unless the whole datagram is aligned                         to 32-bit boundary; spec says only the pdu                      </xs:appinfo>   </xs:annotation> </xs:attribute>

element SignalPdu/header

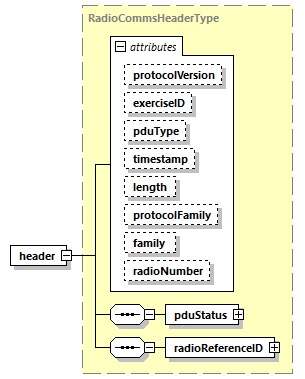

diagram
type	RadioCommsHeaderType
properties	content  complex
children	pduStatus radioReferenceID
attributes	Name   Type   Use   Default   Fixed   Annotation protocolVersion   xs:string            appinfo The version of the protocol. 5=DIS-1995, 6=DIS-1998, 7=DIS-2012 (SISO enumeration                      DISProtocolVersion uid 3)                   exerciseID   xs:unsignedByte            appinfo Exercise ID provides a unique identifier pduType   xs:string            appinfo Type of pdu, unique for each PDU class (SISO enumeration DisPduType uid 4) timestamp   xs:unsignedLong            appinfo Timestamp value length   xs:unsignedShort            appinfo Length, in bytes, of the PDU protocolFamily         DISProtocolFamily.RADIO_COMMUNICATIONS      family            RadioCommunicationsFamilyPduType   radioNumber   xs:unsignedShort            appinfo particular radio within an entity
source	<xs:element name="header" type="RadioCommsHeaderType"/>
