element AvoidanceArea

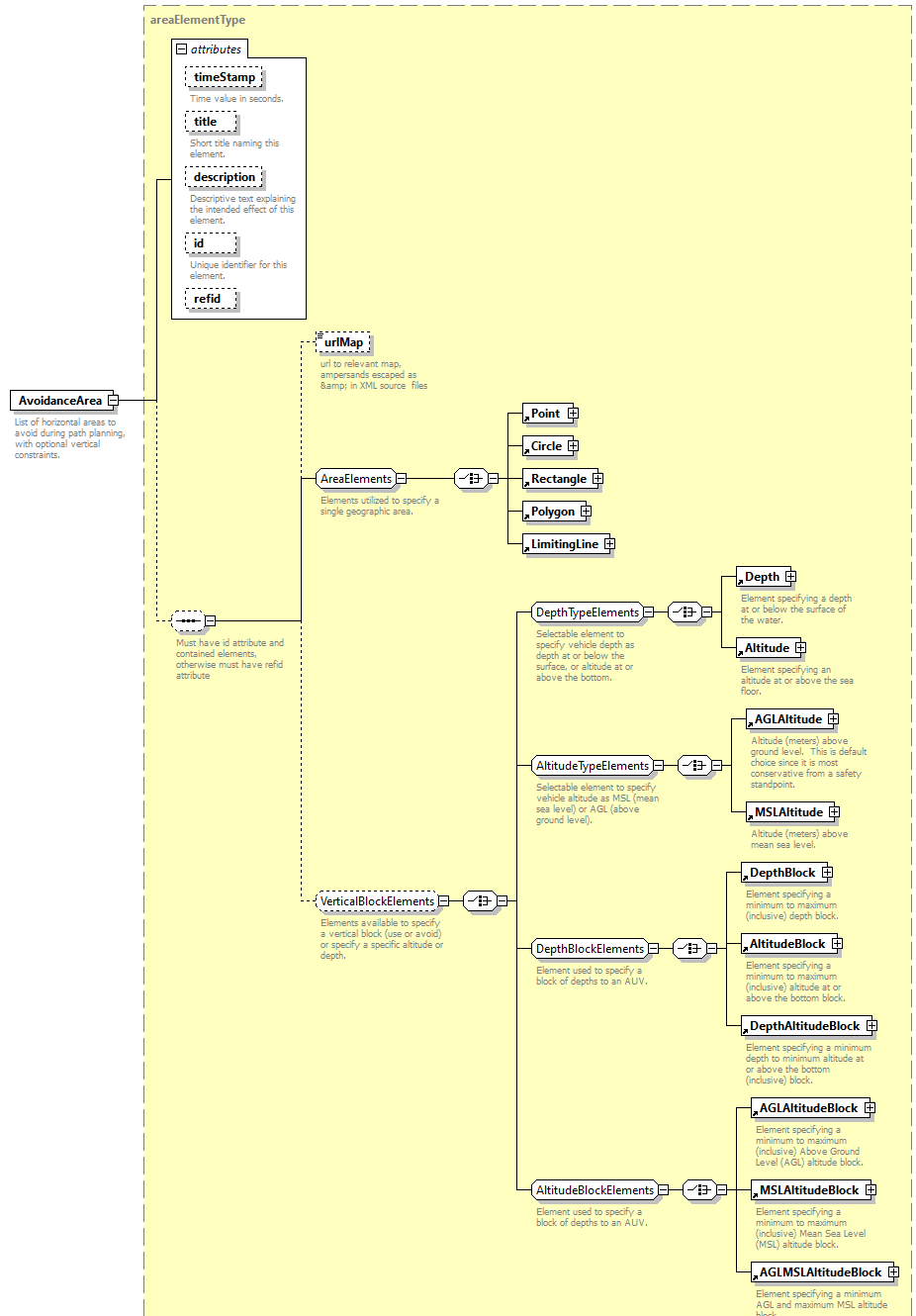

diagram
type	areaElementType
properties	content  complex
children	urlMap Point Circle Rectangle Polygon LimitingLine Depth Altitude AGLAltitude MSLAltitude DepthBlock AltitudeBlock DepthAltitudeBlock AGLAltitudeBlock MSLAltitudeBlock AGLMSLAltitudeBlock
used by	complexType  agendaConstraintListType
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation List of horizontal areas to avoid during path planning, with optional vertical constraints.
source	<xsd:element name="AvoidanceArea" type="areaElementType">   <xsd:annotation>     <xsd:documentation>List of horizontal areas to avoid during path planning, with optional vertical constraints.</xsd:documentation>   </xsd:annotation> </xsd:element>
