complexType areaElementType

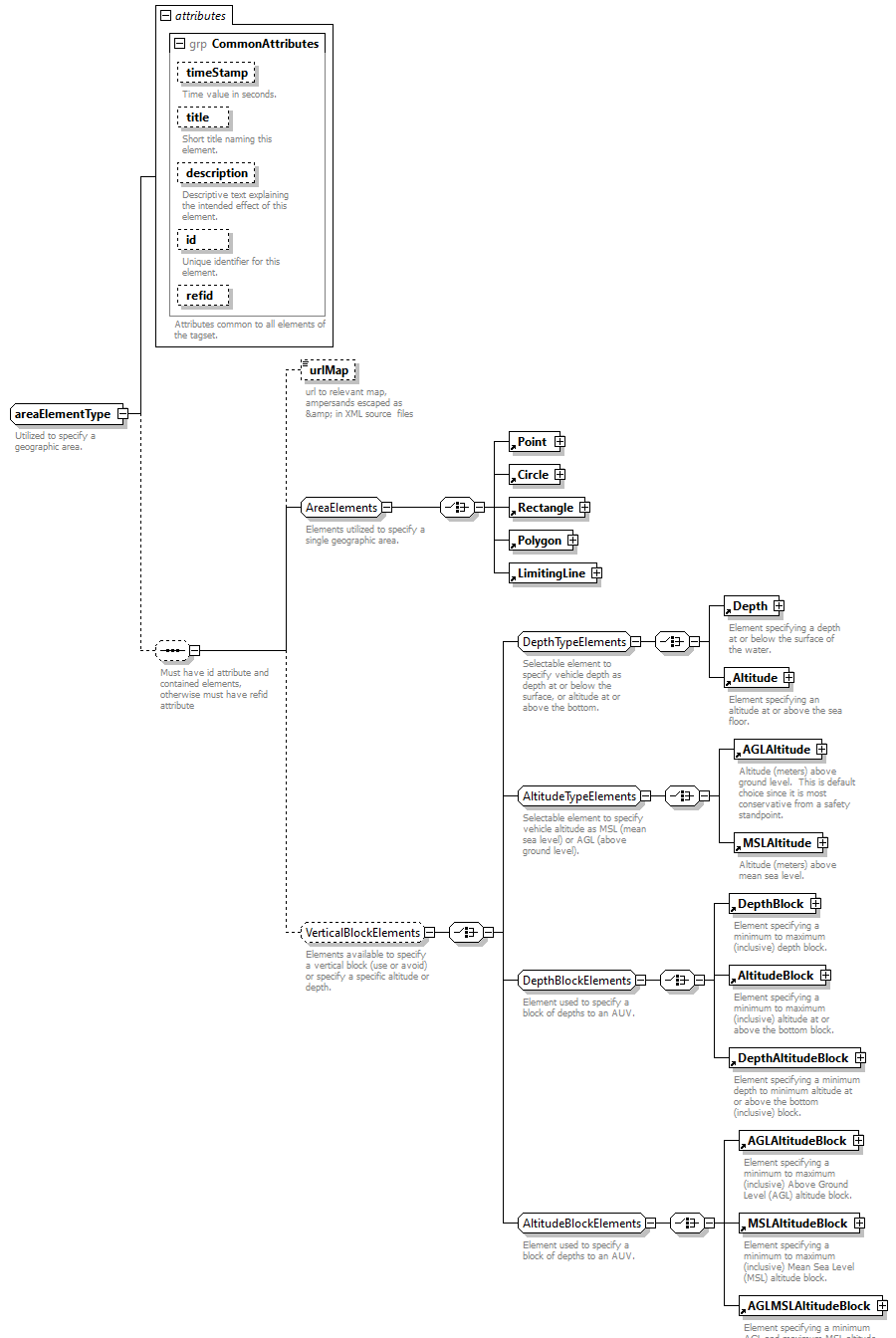

diagram
children	urlMap Point Circle Rectangle Polygon LimitingLine Depth Altitude AGLAltitude MSLAltitude DepthBlock AltitudeBlock DepthAltitudeBlock AGLAltitudeBlock MSLAltitudeBlock AGLMSLAltitudeBlock
used by	elements  AvoidanceArea AvoidArea OperatingArea
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional
annotation	documentation Utilized to specify a geographic area.
source	<xsd:complexType name="areaElementType">   <xsd:annotation>     <xsd:documentation>Utilized to specify a geographic area.</xsd:documentation>   </xsd:annotation>   <xsd:sequence minOccurs="0">     <xsd:annotation>       <xsd:documentation>Must have id attribute and contained elements, otherwise must have refid attribute</xsd:documentation>     </xsd:annotation>     <xsd:element name="urlMap" type="xsd:string" minOccurs="0">       <xsd:annotation>         <xsd:documentation>url to relevant map, ampersands escaped as &amp; in XML source  files</xsd:documentation>       </xsd:annotation>     </xsd:element>     <xsd:group ref="AreaElements"/>     <xsd:group ref="VerticalBlockElements" minOccurs="0"/>   </xsd:sequence>   <xsd:attributeGroup ref="CommonAttributes"/> </xsd:complexType>

element areaElementType/urlMap

diagram
type	xsd:string
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation url to relevant map, ampersands escaped as & in XML source  files
source	<xsd:element name="urlMap" type="xsd:string" minOccurs="0">   <xsd:annotation>     <xsd:documentation>url to relevant map, ampersands escaped as &amp; in XML source  files</xsd:documentation>   </xsd:annotation> </xsd:element>
