element Goal

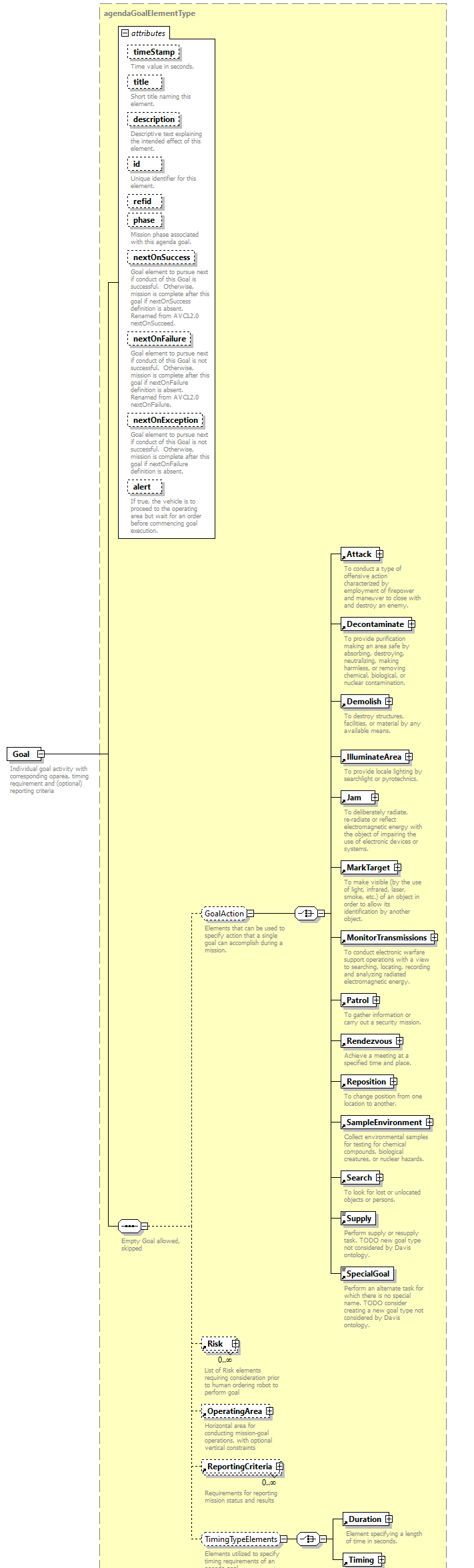

diagram
type	agendaGoalElementType
properties	content  complex
children	Attack Decontaminate Demolish IlluminateArea Jam MarkTarget MonitorTransmissions Patrol Rendezvous Reposition SampleEnvironment Search Supply SpecialGoal Risk OperatingArea ReportingCriteria Duration Timing
used by	complexType  agendaGoalListType
attributes	Name   Type   Use   Default   Fixed   Annotation timeStamp   nonNegativeScalarType   optional         documentation Time value in seconds. title   xsd:string   optional         documentation Short title naming this element. description   xsd:string   optional         documentation Descriptive text explaining the intended effect of this element. id   xsd:ID   optional         documentation Unique identifier for this element. refid   xsd:IDREF   optional         phase   xsd:string   optional         documentation Mission phase associated with this agenda goal. nextOnSuccess   xsd:IDREF   optional         documentation Goal element to pursue next if conduct of this Goal is successful.  Otherwise, mission is complete after this goal if nextOnSuccess definition is absent. Renamed from AVCL2.0 nextOnSucceed. nextOnFailure   xsd:IDREF   optional         documentation Goal element to pursue next if conduct of this Goal is not successful.  Otherwise, mission is complete after this goal if nextOnFailure definition is absent. Renamed from AVCL2.0 nextOnFailure. nextOnException   xsd:IDREF   optional         documentation Goal element to pursue next if conduct of this Goal is not successful.  Otherwise, mission is complete after this goal if nextOnFailure definition is absent. alert   xsd:boolean   optional   false      documentation If true, the vehicle is to proceed to the operating area but wait for an order before commencing goal execution.
annotation	documentation Individual goal activity with corresponding oparea, timing requirement and (optional) reporting criteria
source	<xsd:element name="Goal" type="agendaGoalElementType">   <xsd:annotation>     <xsd:documentation>Individual goal activity with corresponding oparea, timing requirement and (optional) reporting criteria</xsd:documentation>   </xsd:annotation> </xsd:element>
